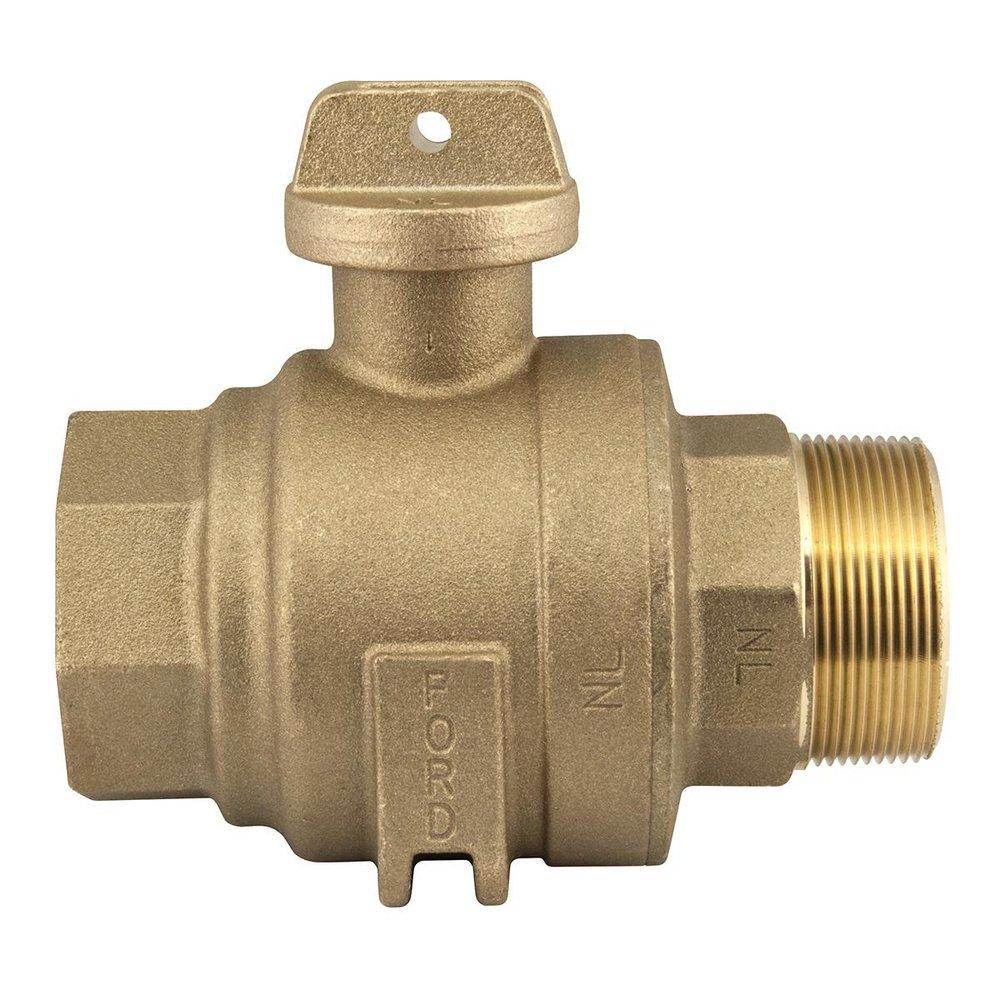

Ford Meter Box B81-666-NL Ball Valve 1-1/2 in. MIPT x FIPT

Product Description

The FORD METER BOX B81-666-NL is a ball valve curb stop with 1-1/2 in. nominal size and MNPT x FNPT end style. Ideal for use in water service lines, this valve is watertight in either direction at pressures up to 300 psi. It features easy turning, nonbinding operation, and minimum pressure loss.

• Valve is non-directional and is watertight with flow in either direction
• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Hole for attaching curb box rod or handle is provided in Tee-head

Product Highlights

The FORD METER BOX Ball Valve Curb Stops are designed for superb performance, quality, and precise manufacturing.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: B81-666-NL

Technical Specifications

• Type: Straight Curb
• Nominal Size: 1-1/2 in
• End Style: MNPT x FNPT
• Material: Brass
• Body Material: Brass
• End Size: 1-1/2 in
• Inlet to Outlet Length: 5-15/16 in
• Pressure Rating: 300 psi
• Series: B81
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• UNSPSC: 40141600
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: B81-666-NL
• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: MPT
• End Connection 2: FPT
• End Connections: MPT x FPT
• Inlet Service Size: 1-1/2
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 1-1/2
• Pressure - Maximum: 300 psi
• Proposition 65: WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
