Ford Meter Box b81-333-nl Ball Valve 3/4 Inch Mip Fip No Lead

Product Description

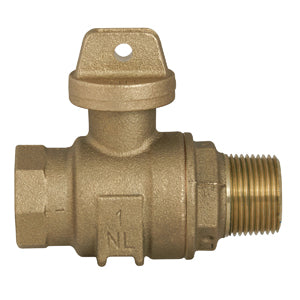

The FORD METER BOX b81-333-nl is a 3/4-inch full-port ball valve with male iron pipe thread (MIP) on one end and female iron pipe thread (FIP) on the other. Manufactured to a no-lead standard, this valve is suitable for potable water applications where lead-free compliance is required. The MIP x FIP configuration allows the valve to thread directly into existing pipe runs without additional adapters, making it a straightforward replacement or new-installation component. Licensed plumbers and water service technicians are the primary installers of this type of valve in residential and light commercial water distribution systems.

This valve is designed for use in water service lines, distribution piping, and shutoff applications where a reliable quarter-turn isolation point is needed. The 3/4-inch size is common in residential main service entries, branch supply lines, and irrigation feeds. The MIP x FIP end configuration suits inline installations where the upstream fitting is female-threaded and the downstream fitting accepts a male thread. No-lead construction meets the requirements of applications governed by lead-free plumbing standards for systems conveying drinking water.

Key Features

• No-lead construction suitable for potable water service
• 3/4-inch MIP x FIP threaded ends for inline installation without adapters
• Quarter-turn ball valve operation for fast, positive shutoff
• Approximate weight of 2.0 pounds indicates solid brass or similarly durable body construction

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4-inch threaded water service and distribution piping systems requiring no-lead compliance.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply before removing any existing valve or fitting. Apply thread sealant tape or approved pipe compound to all male threads before assembly. Do not over-torque threaded connections, as this can damage valve seats or fittings.

Technical Specifications

• Size: 3/4 inches
• End Connections: MIP x FIP (Male Iron Pipe Thread by Female Iron Pipe Thread)
• Lead Standard: No Lead
• Weight: 2.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: b81-333-nl
