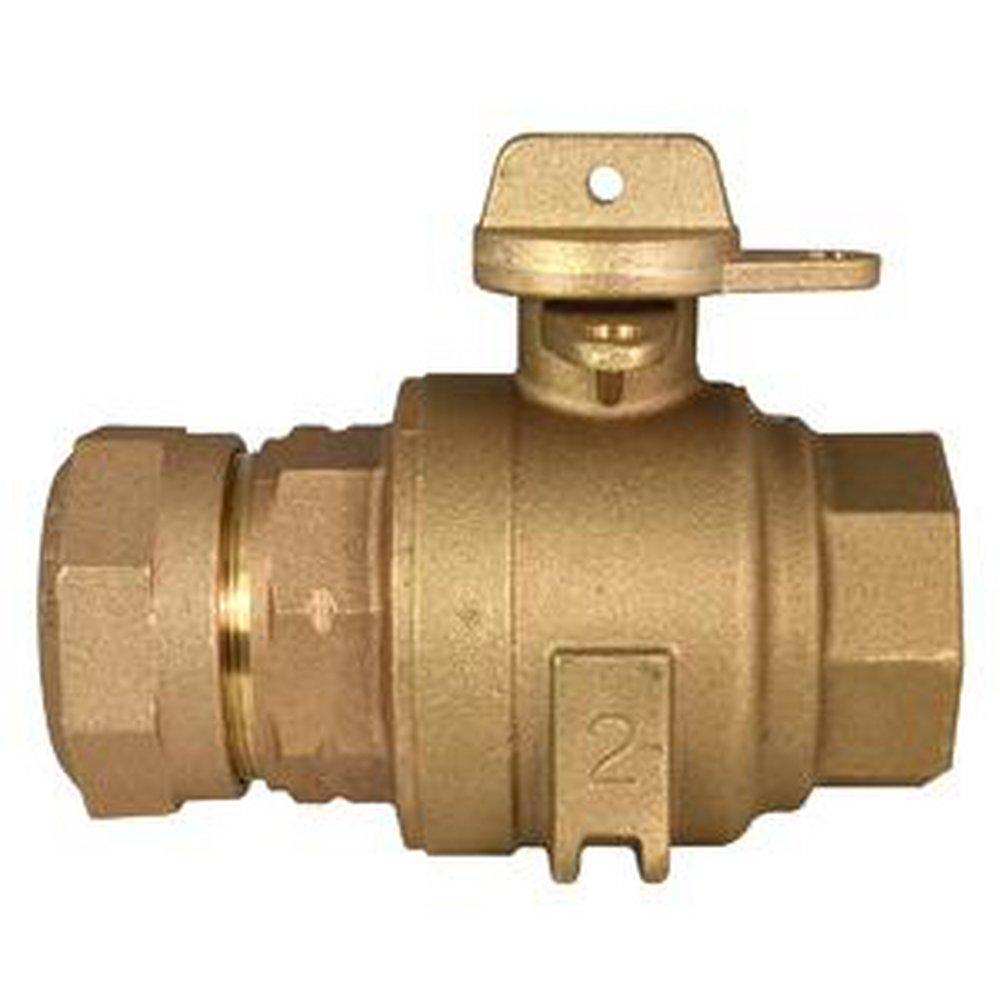

Ford Meter Box B41-777W-Q-NL Ball Valve 2in

Product Description

The FORD METER BOX B41-777W-Q-NL is a 2-inch ball valve designed for water service lines. It features a Quick Joint Nut For CTS x FNPT End Style. This valve is watertight in either direction at pressures up to 300 psi. Ideal for use in water service lines.

• All brass that comes in contact with potable water conforms to AWWA standard C800 (ASTM B584, UNS C89833)
• The product has the letters "NL" cast into the main body for lead-free identification
• Certified to NSF/ANSI standard 61 and NSF/ANSI standard 372 where applicable

Product Highlights

The FORD METER BOX Ball Valve Curb Stops are easy turning, nonbinding and offer minimum pressure loss.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: B41-777W-Q-NL

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM B-584, ASTM B-62
• AWWA: AWWA C-800
• End Connection 1: Quick Joint
• End Connection 2: FPT
• End Connections: Quick Joint x FPT
• Inlet Service Size: 2
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 5-29/32
• Material: Brass, Rubber
• Material Type: EPDM
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• OutletMeter Size: 2
• Pressure - Maximum: 300 psi
• Valve Seat Material: EPDM
• Valve Size: 2 in
• Type: Straight Curb
• Nominal Size: 2 in
• End Style: CTS Quick Joint Nut x FNPT
• Body Material: Brass
• End Size: 2 in
• Inlet to Outlet Length: 5-29/32 in
• Pressure Rating: 300 psi
• Series: B41
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: B41-777W-Q-NL
