Ford Meter Box b41-455w-nl Ball Valve 1 Inch Cts X Fip

Product Description

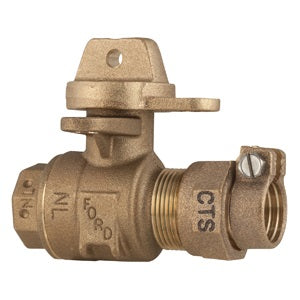

The FORD METER BOX b41-455w-nl is a no-lead ball valve designed for potable water service connections. It features a 1-1/4 inch CTS (Copper Tube Size) pack joint inlet and a 1-1/4 inch female iron pipe thread (FIP) outlet, bridging CTS tubing to threaded iron pipe in a single fitting. The pad wing design provides a secure gripping surface for manual operation. Built to no-lead standards, this valve is suitable for installations governed by lead-free compliance requirements in drinking water systems. Licensed plumbers and utility contractors install this valve in residential and light commercial water service applications.

This ball valve is used in water meter settings, service line connections, and curb stop assemblies where a CTS pack joint to FIP transition is required. It is well suited for direct burial and pit-set installations common in municipal water service work. The no-lead construction makes it appropriate for systems carrying potable water under current plumbing codes.

Key Features

• No-lead construction meets current potable water compliance standards
• 1-1/4 inch CTS pack joint inlet for direct compression connection to copper tubing
• 1-1/4 inch female iron pipe thread outlet for threaded pipe connections
• Pad wing handle provides positive manual shutoff operation
• Ball valve design delivers full-bore flow and quarter-turn shutoff

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for residential and light commercial water service lines requiring a CTS pack joint by female iron pipe thread configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water main and relieve system pressure before making any connections. The pack joint end requires no solder or adhesive — ensure the tubing end is cut square, deburred, and fully seated before tightening the compression nut. Do not over-torque the FIP connection; use thread sealant tape or paste rated for potable water service.

Technical Specifications

• Inlet Connection: 1-1/4 inch CTS Pack Joint
• Outlet Connection: 1-1/4 inch Female Iron Pipe Thread
• Lead Compliance: No Lead
• Handle Style: Pad Wing
• Weight: 3.15 pounds
• Box Quantity: 2

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: b41-455w-nl
