Ford Meter Box B41-444W-Q-NL Straight Curb Valve 1 in CTS Quick Joint Nut x FNPT

Product Description

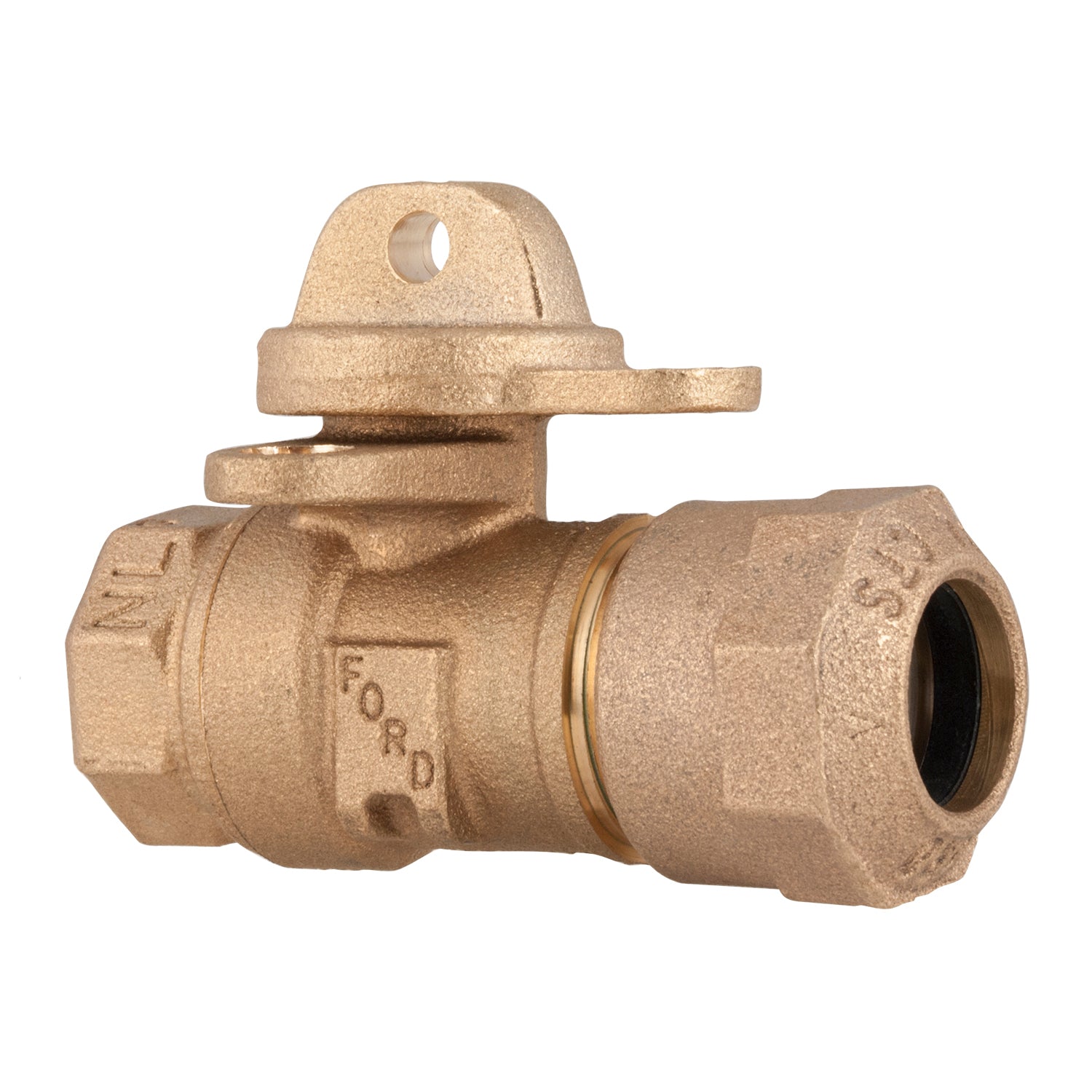

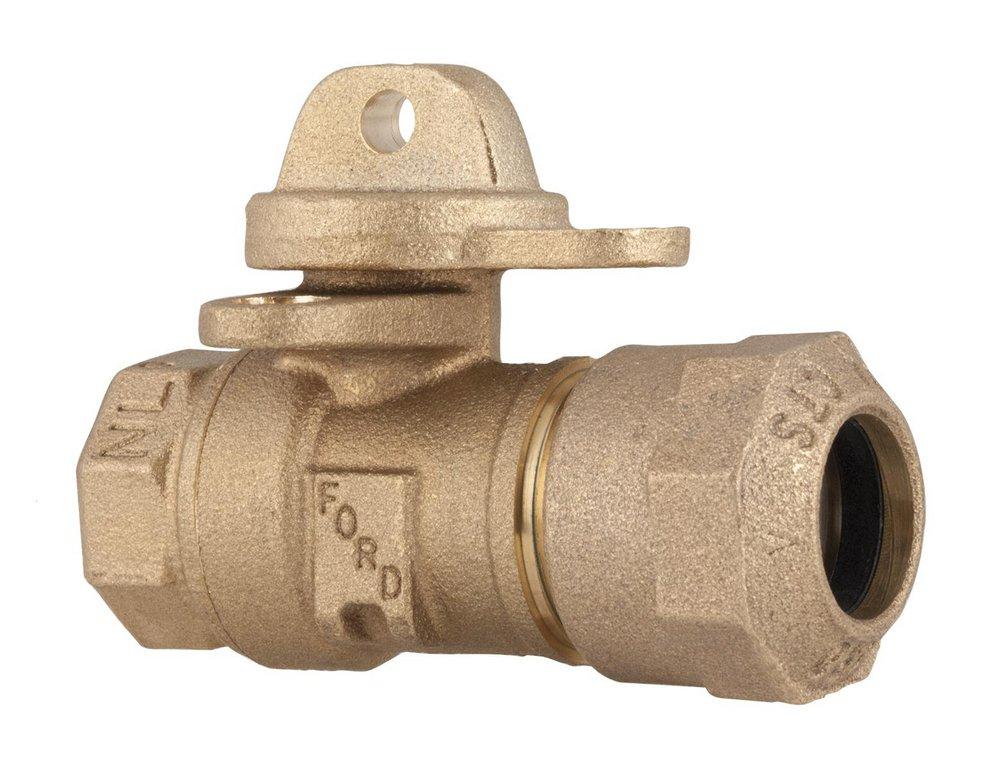

The FORD METER BOX B41-444W-Q-NL is a straight curb ball valve designed for use in water service lines. It features a 1 in nominal size and a CTS Quick Joint Nut x FNPT end style. This valve is watertight in either direction at pressures up to 300 psi, easy turning, nonbinding and minimum pressure loss.

• Valve is non-directional and is watertight with flow in either direction
• Ends are integral or secured with adhesive to prevent unintentional disassembly
• Hole for attaching handle is provided in Tee-head

Product Highlights

Ideal for water service lines, this valve offers easy turning, nonbinding operation, and minimal pressure loss, ensuring reliable performance.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: B41-444W-Q-NL

Technical Specifications

• Type: Straight Curb
• Nominal Size: 1 in
• End Style: CTS Quick Joint Nut x FNPT
• Material: Brass
• Body Material: Brass
• End Size: 1 in
• Inlet to Outlet Length: 3-19/32 in
• Pressure Rating: 300 psi
• Series: B41
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: B41-444W-Q-NL
