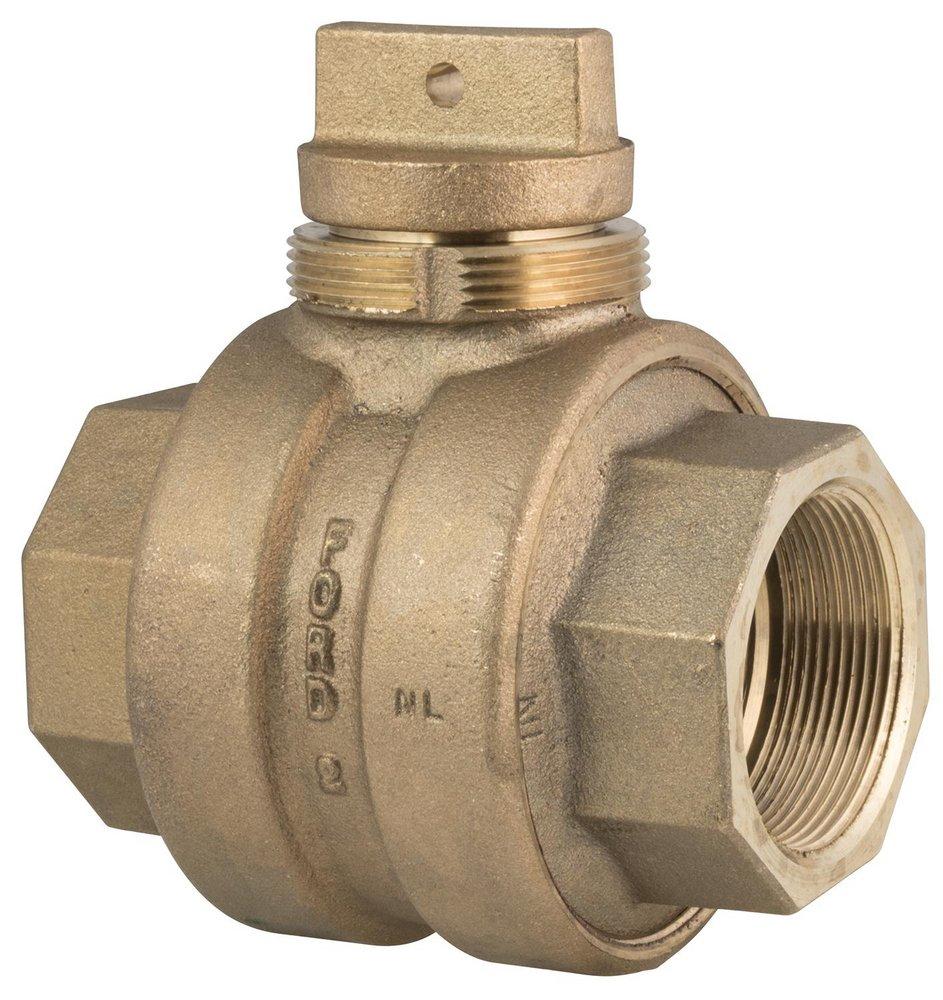

Ford Meter Box b11-777swm-nl 2 in Fipt Ball Curb Stop

Product Description

The FORD METER BOX b11-777swm-nl is a 2-inch full-port ball curb stop with an integrated drain, designed for water service line shutoff applications. It features female iron pipe thread (FIPT) connections on both ends and a brass body rated to 150 psi. This curb stop meets AWWA C800 standards and ASTM B62 and B584 specifications, making it a code-recognized option for potable water service installations. The part is lead law compliant and certified, satisfying federal and state requirements for components used in drinking water systems. Licensed plumbers and waterworks contractors install this fitting at the curb or property line to control flow between the water main and the meter.

This ball curb stop is suited for residential and light commercial water service applications where a reliable, full-shutoff valve is required at the service entrance. The 2-inch FIPT inlet and outlet connections make it compatible with standard threaded pipe assemblies used in municipal and private waterworks installations. Its brass construction and compliance with AWWA C800 make it appropriate for direct burial and metered service environments where corrosion resistance and long service life are required.

Key Features

• 2-inch FIPT inlet and outlet connections for standard threaded pipe assembly
• Brass body construction per ASTM B62 and ASTM B584 for corrosion resistance in buried service
• Rated to 150 psi maximum working pressure
• Integrated drain for controlled service line bleed-down
• Lead law compliant and certified for use in potable water systems
• Meets AWWA C800 for underground service line stop valves

Compatibility

Designed as an OEM-style replacement or new-installation curb stop for 2-inch threaded water service line assemblies meeting AWWA C800 requirements in residential and light commercial waterworks applications.

Installation Notes

Installation should be performed by a licensed plumber or waterworks contractor in accordance with local codes and AWWA guidelines. Shut off the main water supply before installing or replacing this valve. Apply appropriate thread sealant to all FIPT connections and verify that the joint is leak-free before backfilling in direct-burial applications. Do not exceed the rated working pressure of 150 psi during pressure testing.

Technical Specifications

• Inlet Service Size: 2 inches
• Outlet Meter Size: 2 inches
• End Connection 1: FPT
• End Connection 2: FPT
• Maximum Pressure: 150 psi
• Material: Brass
• Lead Law Compliant: Yes
• ASTM Standards: ASTM B62, ASTM B584
• AWWA Standard: AWWA C800

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: b11-777swm-nl
