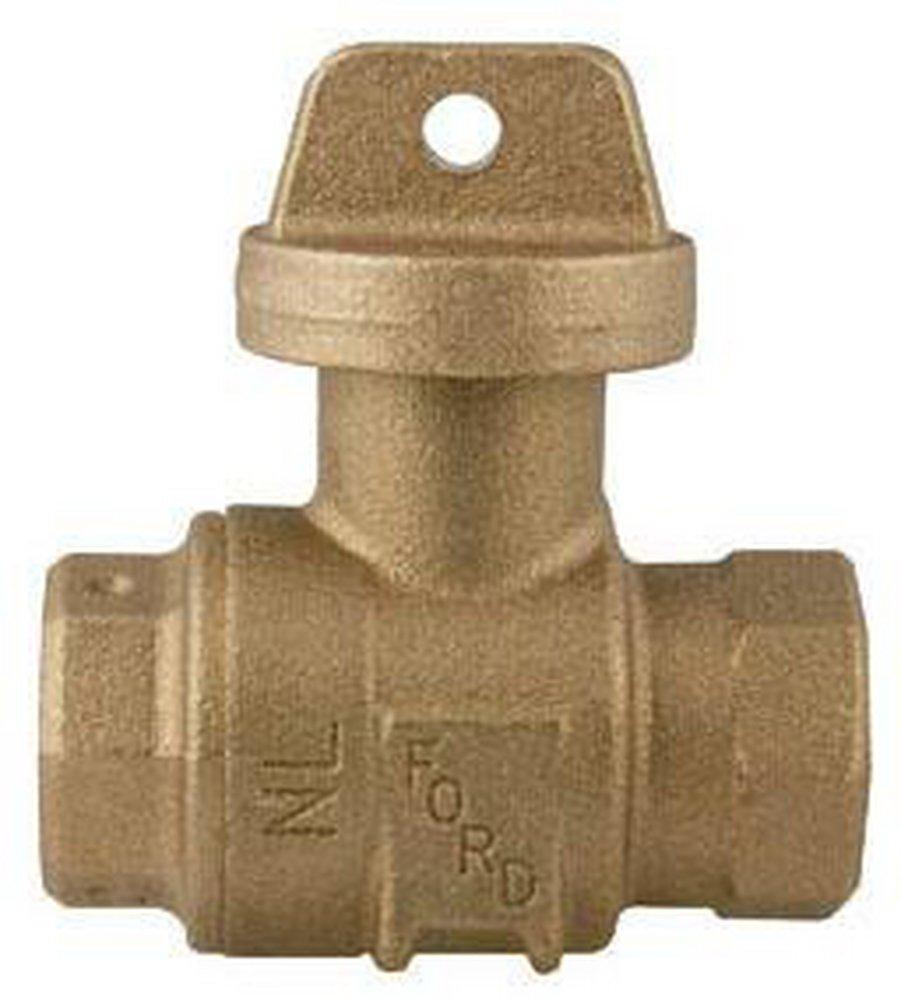

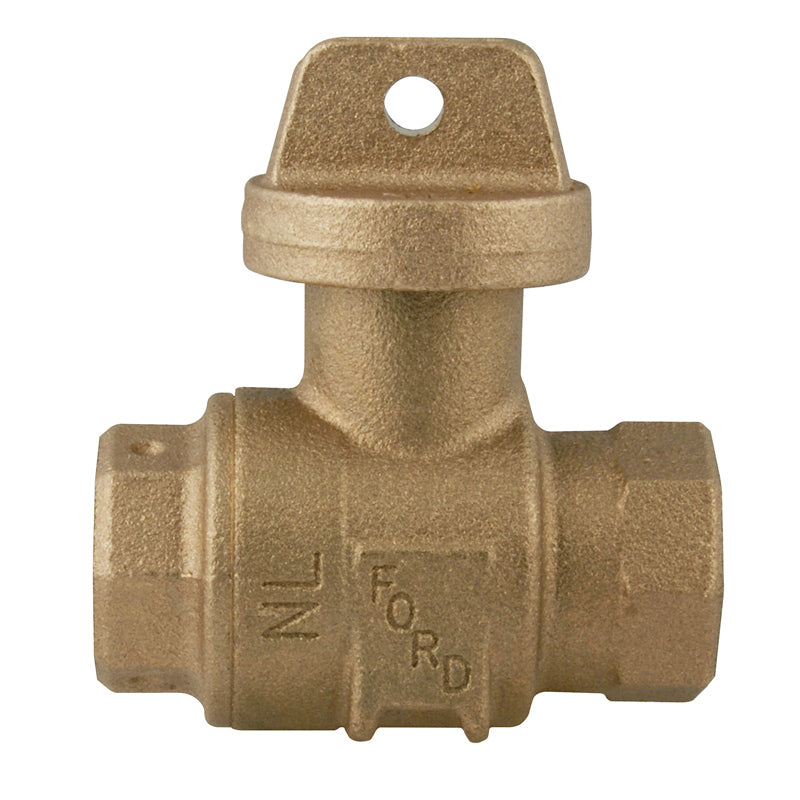

Ford Meter Box B11-333-NL Ball Valve 3/4 in. FIPT

Product Description

The FORD METER BOX B11-333-NL is a ball valve with sturdy stops that allow 90-degree motion. It features dual EPDM O-rings in the stem and a solid one-piece tee-head and stem. The valve is watertight with flow in either direction. The fluorocarbon-coated brass ball provides maximum flow capacity and ease of turning.

• Sturdy stops allow 90 deg motion and are enclosed and protected
• Molded EPDM seat support the ball, valve is watertight and is a non-directional valve
• Heavy cast brass body is engineered to withstand pipe stresses

Product Highlights

This lead-free brass ball valve is designed for durability and efficient flow control. Ideal for use as a curb stop with FIPT connections.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: B11-333-NL

Technical Specifications

• Item Name: Curb Stop Ball Valve
• Nominal Size: 3/4 in
• Connection Type: FIPT x FIPT
• Pressure Rating: 300 psi
• Finish: Fluorocarbon Coated
• Material: Lead-Free Brass
• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: FPT
• End Connection 2: FPT
• Inlet Service Size: 3/4
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3-1/64
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 3/4
• Pressure - Maximum: 300 psi
• Pressure Class: 300#
• Valve Seat Material: EPDM
• Valve Size: 3/4 in
• Type: Meter & Service Valves
• Connections: FIP X FIP
• Size: 3/4 x 3/4 x 3/4 In
