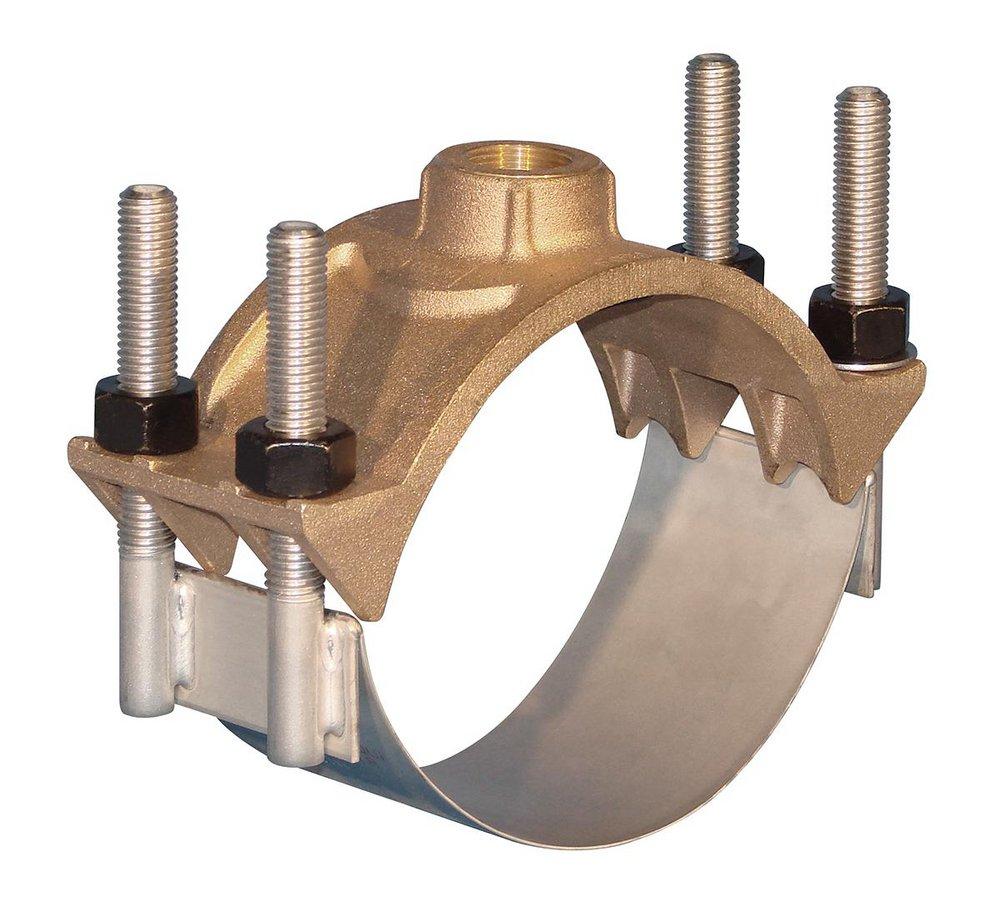

Ford Meter Box 202BS-905-IP4 8 x 1 in. IPS Iron Pipe Double Stainless Steel Handling Saddle

Product Description

The FORD METER BOX 202BS-905-IP4 conforms to the recommendation of Uni-Bell and AWWA. The stainless steel easily conforms to the surface of PVC pipe, and the brass provides the required strength to support service lines. It is designed for 8" C900 PVC pipe with a 1" iron pipe tap.

• Conforms to the recommendation of Uni-Bell and AWWA
• Stainless steel conforms to the surface of PVC pipe
• Brass provides the required strength to support service lines

Product Highlights

The FORD METER BOX 202BS-905-IP4 is a durable and reliable saddle for connecting service lines to PVC pipes.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202BS-905-IP4

Technical Specifications

• AWWA: AWWA C-800
• Collection: Style 202B
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 8 in
• Fitting Type: Saddle
• Material: Brass, Rubber, Silicon Bronze
• Material Type: EPDM
• NSF Certified: Yes
• Pressure Class: 200#
• Tap Size: 1
• UL Listed: Yes
