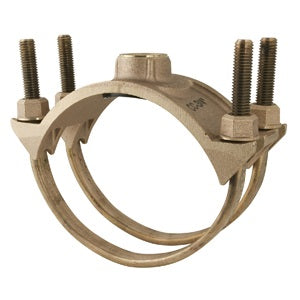

Ford Meter Box 202b-905-ip4 Brass Double Strap Saddle

Product Description

The FORD METER BOX 202b-905-ip4 is a brass double strap saddle designed for tapping 1-inch iron pipe (IP) service connections on 8-inch mainline pipe. It is used to create a secure, leak-resistant branch tap on water distribution mains without full line interruption. The double strap design clamps firmly around the host pipe, distributing load evenly and reducing the risk of movement or blowout under pressure. Weighing 8.42 pounds, this saddle is built for heavy-duty waterworks and utility applications. Licensed plumbers and water utility crews are the primary installers.

This saddle fits mainline pipe with an outside diameter range of 8.63 to 9.05 inches, covering standard 8-inch iron pipe and compatible pipe classes. It is suited for residential and municipal water service installations where a reliable branch tap is needed on a pressurized main. The 1-inch iron pipe tap accepts standard IP threaded corporation stops for direct service line tie-in.

Key Features

• Double strap design distributes clamping force evenly around the host pipe
• Full brass construction for corrosion resistance in buried waterworks service
• 1-inch iron pipe tap thread for direct connection to standard corporation stops
• Fits outside diameter range of 8.63 to 9.05 inches for 8-inch mainline pipe
• Heavy-duty build at 8.42 pounds for demanding utility installation conditions

Compatibility

Designed as an OEM-style replacement and standard-service saddle for 8-inch water distribution mainline pipe with an outside diameter between 8.63 and 9.05 inches, accepting 1-inch iron pipe threaded corporation stops.

Installation Notes

Installation is performed by licensed plumbers or water utility technicians in accordance with local water authority standards and applicable plumbing codes. The main should be isolated or the installation performed using approved tapping procedures under line pressure where permitted. Ensure the saddle straps are torqued evenly and the gasket is fully seated before tapping to prevent leaks. Inspect threads and seating surfaces before assembly.

Technical Specifications

• Material: Brass
• Pipe Size (Nominal): 8 inches
• Outside Diameter Range: 8.63 to 9.05 inches
• Tap Size: 1 inch Iron Pipe (IP)
• Strap Configuration: Double Strap
• Weight: 8.42 pounds
• Box Quantity: 4

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202b-905-ip4
