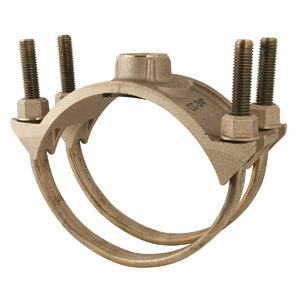

Ford Meter Box 202b-750-ip6 Brass Saddle 6 Inch

Product Description

The FORD METER BOX 202b-750-ip6 is a double-strap brass service saddle designed for tapping into 6-inch water mains or distribution pipe. It accepts a 1-1/2 inch iron pipe (IP) tap, making it a standard choice for service line connections in municipal water distribution and commercial plumbing systems. Constructed from brass for corrosion resistance, this saddle clamps securely around the pipe with a double-strap design that distributes load evenly and helps maintain a leak-free seal. It fits pipe outside diameters in the range of 6.90 to 7.50 inches. At 8 pounds, it is robust enough for buried service applications. Installation is typically performed by licensed plumbers or water utility crews working on pressurized distribution systems.

This saddle is used in water main tapping applications where a new service connection must be made to an existing 6-inch main without full line shutdown. It is suited for residential service tie-ins, commercial water service installations, and municipal water distribution work. The 1-1/2 inch IP tap outlet accommodates standard iron pipe fittings, supporting connection to service valves, corporation stops, or meter setters downstream. It is commonly specified on projects requiring a dependable, reusable clamping saddle in corrosive soil or wet environments where brass outperforms ferrous alternatives.

Key Features

• Double-strap design distributes clamping force evenly around the pipe circumference
• Brass construction resists corrosion in buried and wet service environments
• Compatible with pipe OD range of 6.90 to 7.50 inches
• 1-1/2 inch iron pipe tap outlet for standard IP fittings and corporation stops
• Robust 8-pound assembly built for pressurized water distribution service

Compatibility

Designed for use on 6-inch water mains with an outside diameter between 6.90 and 7.50 inches, with a 1-1/2 inch iron pipe tap connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified water utility technician in accordance with local plumbing codes and utility standards. Depressurize or isolate the line section where required by local authority, and follow all confined-space and excavation safety procedures for buried main work. Ensure the pipe exterior is clean and free of scale or debris before seating the saddle to achieve a proper seal. Tighten straps evenly and to the manufacturer-recommended procedure to avoid distorting the saddle body or the pipe wall.

Technical Specifications

• Material: Brass
• Pipe Size: 6 inches
• OD Range: 6.90 to 7.50 inches
• Tap Size: 1-1/2 inches Iron Pipe (IP)
• Strap Configuration: Double Strap
• Weight: 8.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202b-750-ip6
