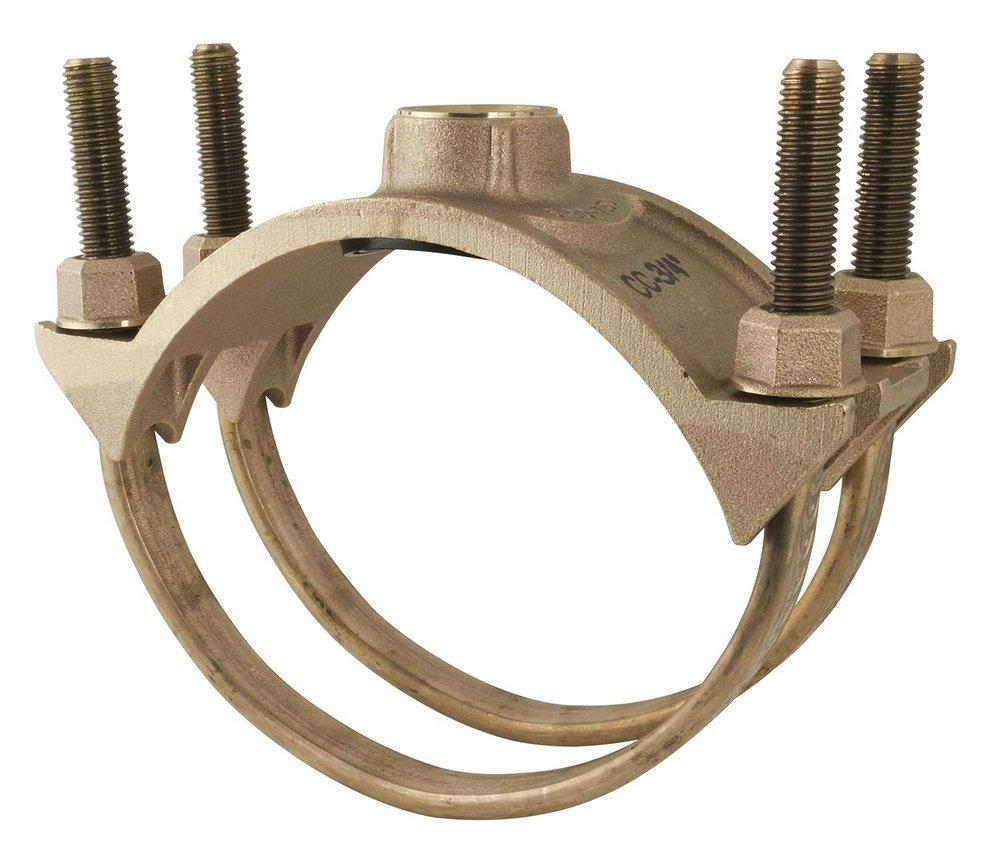

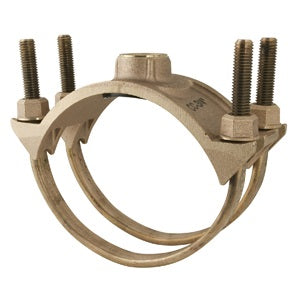

Ford Meter Box 202B-750-IP4 Style 202B 6 x 1 in. IP Bronze Double Strap Saddle

Product Description

The FORD METER BOX 202B-750-IP4 Style 202B 6 x 1 in. IP Bronze Double Strap Saddle is designed with built-in flexibility to cover asbestos-cement and/or cast iron size pipe. The body of the saddle is sized to fit class 200 asbestos-cement but will bend during installation to conform to the smaller size cast iron or ductile iron material.

• Straps are 5/8 in high quality silicon bronze flattened to provide a wider bearing surface against pipe
• Silicon Bronze Straps and Brass Nuts
• For AC and Ductile Iron Pipe

Product Highlights

The body and the nuts are cast from certified 85-5-5-5 water works brass conforming to the AWWA C800 standard. The straps are high-quality silicon bronze flattened to provide a wide bearing surface against the pipe.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202B-750-IP4

Technical Specifications

• Type: Double Strap
• Nominal Size: 6 in
• Connection Type: 1 in FNPT
• Clamp Material: Brass
• Gasket Material: EPDM Rubber
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: 202B-750-IP4
• OD: 6.9 to 7.5 in
• For Pipe Type: AC and Ductile Iron Pipe
• Details: BRASS SADDLE, DOUBLE STRAP
• RANGE: 6.90-7.50
• 1": IRON PIPE TAP
• Approximate Weight: 7.0000 lb
