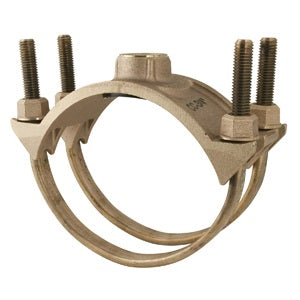

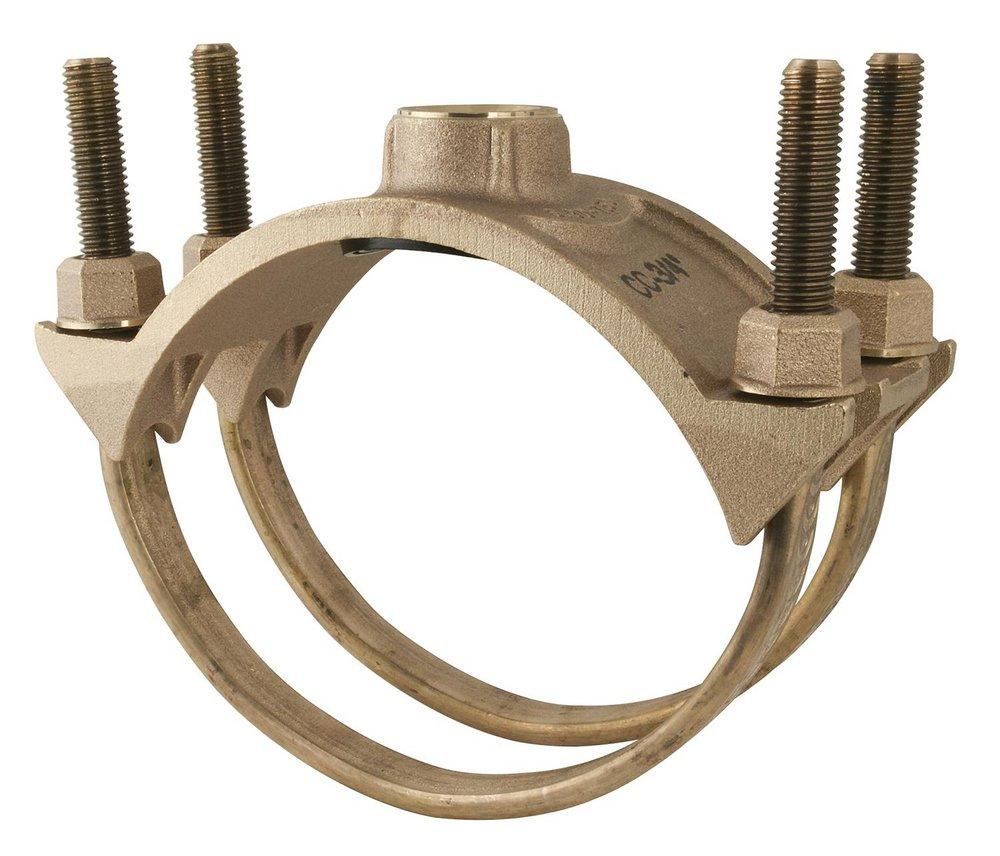

Ford Meter Box 202B-750-IP3 Style 202B 6 x 3/4 in. IP Double Strap Brass Saddle

Product Description

The FORD METER BOX 202B-750-IP3 Style 202B 6 x 3/4 in. IP Double Strap Brass Saddle is designed with flexibility to fit asbestos-cement and/or cast iron size pipe. The body of the saddle fits class 200 asbestos-cement but bends during installation to conform to smaller size cast iron or ductile iron material. The straps are high-quality silicon bronze flattened to provide a wide bearing surface against the pipe.

• Straps are 5/8 in high quality silicon bronze flattened to provide a wider bearing surface against pipe
• For AC and Ductile Iron Pipe
• Body and nuts are cast from 85-5-5-5 water works brass conforming to AWWA C800 standard

Product Highlights

The FORD Style 202B double strap brass saddle is for AC and Ductile Iron Pipe.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202B-750-IP3

Technical Specifications

• Item Number: 202B-750-IP3
• Details: BRASS SADDLE, DOUBLE STRAP
• RANGE: 6.90-7.50
• 3/4" IRON PIPE TAP: None
• Type: Double Strap
• Nominal Size: 6 in
• Connection Type: 3/4 in FNPT
• Clamp Material: Brass
• Gasket Material: EPDM Rubber
• Hole Diameter: 7-1/2 in
• Brand: FORD
• UNSPSC: 10141501
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: 202B-750-IP3
• Straps: 5/8 in high quality silicon bronze flattened to provide a wider bearing surface against pipe
• OD: 6.9 to 7.5 in
• Material: Silicon Bronze Straps and Brass Nuts
• Standards: AWWA C800|ASTM B62/B584|ASTM D2000 Gasket|UL Listed|UNS NO C83600 85-5-5-5
• Application: For AC and Ductile Iron Pipe
