Ford Meter Box 202B-1625-IP7 14in Brass Saddle 2in Ip

Product Description

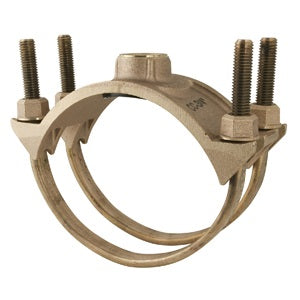

The FORD METER BOX 202B-1625-IP7 is a double strap brass saddle designed for AC and ductile iron pipes. It fits nominal 14 in pipes with a 2 in FNPT connection. The body of the saddle is sized to fit class 200 asbestos-cement but will bend during installation. The straps are high-quality silicon bronze flattened to provide a wide bearing surface against the pipe.

• Features 5/8 in high quality silicon bronze straps for a wider bearing surface
• Equipped with an EPDM rubber gasket grooved to conform to the pipe surface and bonded in place
• Designed with built-in flexibility to fit asbestos-cement and/or cast iron size pipe

Product Highlights

This brass saddle features silicon bronze straps and brass nuts cast from certified 85-5-5-5 water works brass conforming to the AWWA C800 standard.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202B-1625-IP7

Technical Specifications

• Item Number: 202B-1625-IP7
• Type: Double Strap
• Nominal Size: 14 in
• Connection Type: 2 in FNPT
• Clamp Material: Brass
• Gasket Material: EPDM Rubber
• Hole Diameter: 16-1/4 in
• Brand: FORD
• UNSPSC: 10141501
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: 202B-1625-IP7
• OD: 15.3 to 16.25 in
• Material: Silicon Bronze Straps and Brass Nuts
• Standards: AWWA C800|ASTM B62/B584|ASTM D2000 Gasket|UL Listed|UNS NO C83600 85-5-5-5
• Application: For AC and Ductile Iron Pipe
