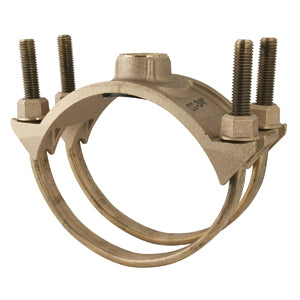

Ford Meter Box 202b-1320-ip6 Brass Double Strap Saddle

Product Description

The FORD METER BOX 202b-1320-ip6 is a 12-inch brass double strap saddle fitting designed for tapping into water mains and distribution lines. It accepts a 1-1/2 inch iron pipe (IP) tap and is built to fit pipe outside diameters in the range of 13.20 to 14.38 inches. The double strap design distributes clamping load evenly around the host pipe, reducing stress at the tap point. Brass construction resists corrosion in buried or wet service environments. This saddle is installed by licensed plumbers and waterworks contractors performing service line connections on municipal or commercial water distribution systems.

This saddle is suited for residential and commercial water service applications where a branch tap must be added to an existing main without full line replacement. Typical installations include new service lateral connections off cast iron, ductile iron, or steel mains. The 13.20 to 14.38 inch OD range makes this fitting appropriate for nominal 12-inch pipe commonly found in municipal water distribution infrastructure. Waterworks contractors and utility plumbers are the primary installers of this product.

Key Features

• Double strap design provides even clamping pressure across the pipe OD
• Brass construction for corrosion resistance in buried and wet service conditions
• 1-1/2 inch iron pipe tap outlet for standard service lateral connections
• Fits pipe OD range of 13.20 to 14.38 inches
• Designed for use on 12-inch nominal water mains

Compatibility

Designed as an OEM-style waterworks fitting for nominal 12-inch water mains with an outside diameter between 13.20 and 14.38 inches, accepting a 1-1/2 inch iron pipe tap connection.

Installation Notes

Installation should be performed by a licensed plumber or certified waterworks contractor in accordance with local plumbing codes and AWWA standards. Depressurize or isolate the line section before drilling and tapping whenever possible, following your utility or municipality guidelines. Ensure strap bolts are tightened evenly to achieve a uniform seal around the pipe OD. Inspect the outlet tap threads and gasket seating surface before assembly to confirm a leak-free connection.

Technical Specifications

• Material: Brass
• Saddle Type: Double Strap
• Nominal Pipe Size: 12 inches
• Pipe OD Range: 13.20 to 14.38 inches
• Tap Size: 1-1/2 inches Iron Pipe (IP)
• Weight: 14.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202b-1320-ip6
