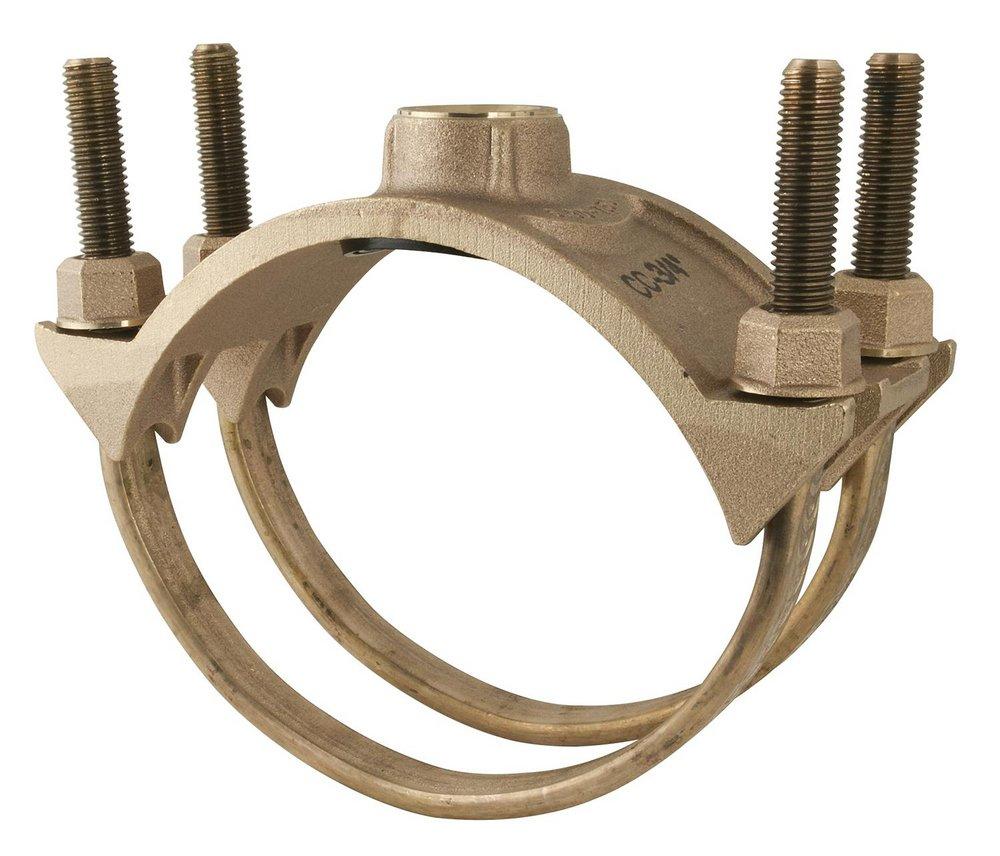

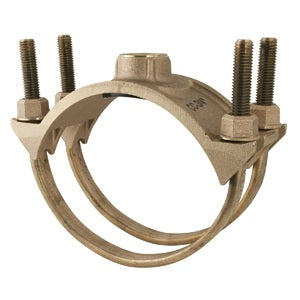

Ford Meter Box 202B-1212-IP7 Brass Saddle 2in Ip

Product Description

The FORD METER BOX 202B-1212-IP7 is a brass saddle with a double strap design and a 2" iron pipe tap. It fits pipe sizes of 10 inches and is suitable for AC or iron pipes. The saddle is constructed from high-quality brass and adheres to ANSI/NSF Standard 61 (2007a).

• Straps are 5/8 inch high quality silicon bronze flattened to provide a wider bearing surface against pipe
• Gasket is EPDM rubber ASTM D2000
• Brass nuts

Product Highlights

This brass saddle features a double strap design, EPDM rubber gasket, and is suitable for use with AC or iron pipes.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202B-1212-IP7

Technical Specifications

• Item Number: 202B-1212-IP7
• Details: BRASS SADDLE, DOUBLE STRAP RANGE 11.10-12.12 2" IRON PIPE TAP
• AWWA: AWWA C-800
• Collection: Style 202B
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 10 in
• Fitting Type: Saddle
• Material: Brass, Rubber, Silicon Bronze
• Material Type: EPDM
• NSF Certified: Yes
• Pressure Class: 200#
• Range (in): 11.10 in - 12.12 in
• Tap Size: 2
• UL Listed: Yes
• Type: Double Strap
• Standards: Approved to ANSI/NSF Standard 61 (2007a)
• Applications: For AC or Iron Pipe
