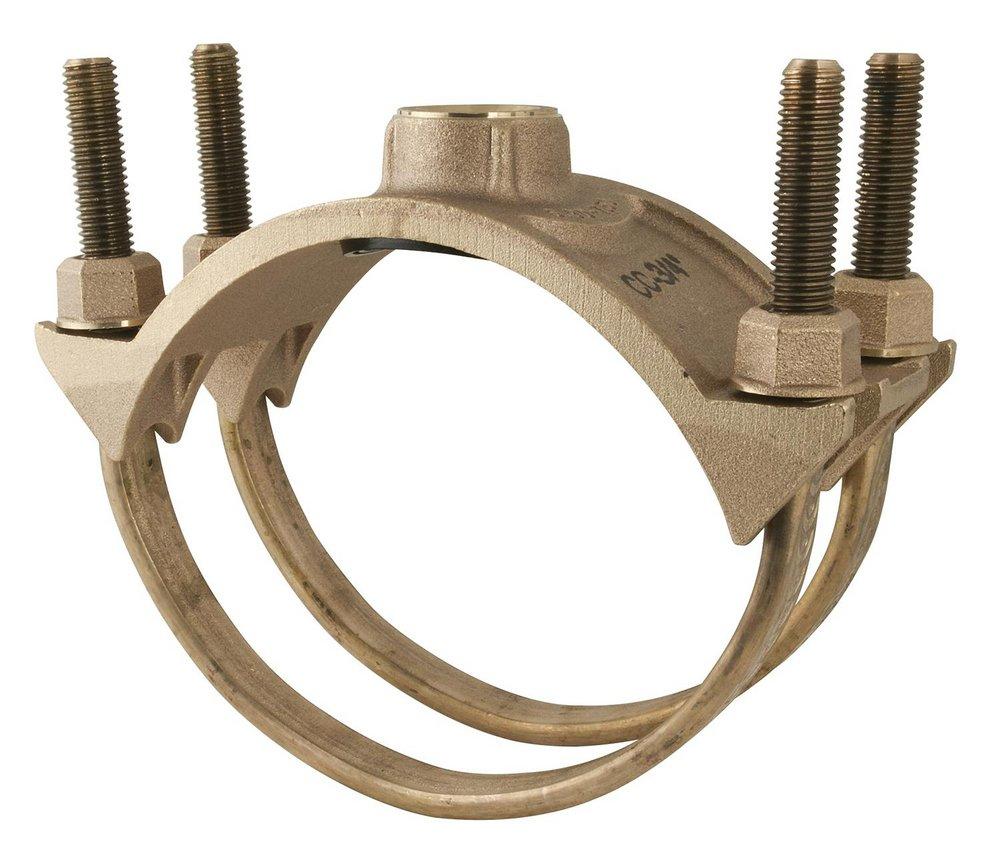

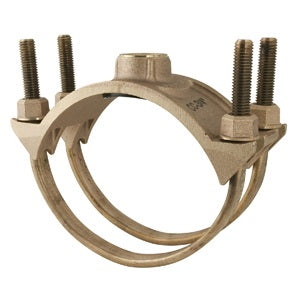

Ford Meter Box 202B-1212-IP4 Double Strap Saddle 1 in FNPT

Product Description

The FORD METER BOX 202B-1212-IP4 double strap saddle is designed with flexibility to fit asbestos-cement and cast iron pipe. The body bends during installation to fit different pipe sizes. It features a brass clamp and EPDM gasket. Designed for AC and ductile iron pipe.

• Straps are 5/8 in high quality silicon bronze flattened to provide a wider bearing surface against pipe
• For AC and Ductile Iron Pipe
• Designed with built-in flexibility to cover asbestos-cement and/or cast iron size pipe

Product Highlights

The FORD double strap brass saddles are designed to fit class 200 asbestos-cement but will bend during installation to conform to the smaller size cast iron or ductile iron material.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202B-1212-IP4

Technical Specifications

• Item Number: 202B-1212-IP4
• Type: Double Strap
• Nominal Size: 10 in
• Connection Type: 1 in FNPT
• Clamp Material: Brass
• Gasket Material: EPDM Rubber
• Hole Diameter: 12.12 in
• Brand: FORD
• UNSPSC: 10141501
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: 202B-1212-IP4
• OD: 11.1 to 12.12 in
• Application: For AC and Ductile Iron Pipe
• Approximate Weight: 11.0000 lb
• Weight: 10.60
