Ford Meter Box 202b-1212-ip3 Brass Saddle 10 in 3/4 Ip

Product Description

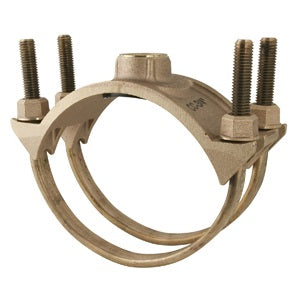

The FORD METER BOX 202b-1212-ip3 is a double strap brass saddle designed for tapping into water mains and service lines at a 3/4-inch iron pipe thread outlet. Built for use on pipe with an outside diameter range of 11.10 to 12.12 inches, this saddle provides a secure, leak-resistant connection point without requiring a full line shutdown. The double strap design distributes clamping force evenly around the pipe, making it a reliable choice for new service taps on pressurized mains. Licensed plumbers and utility contractors install this type of fitting during water service installations and main extensions.

This brass saddle is suited for potable water distribution applications in municipal, residential, and commercial settings. It is typically used when tapping a new service connection off an existing main line in the 10-inch nominal pipe size range. The 3/4-inch iron pipe thread outlet accommodates standard corporation stops and service valves used in water utility work. The fitting is appropriate for direct bury applications where a durable, corrosion-resistant material is required.

Key Features

• Double strap configuration distributes clamp load evenly around the pipe circumference
• 3/4-inch iron pipe thread tap outlet compatible with standard corporation stops
• Fits pipe outside diameter range of 11.10 to 12.12 inches
• Brass construction for corrosion resistance in direct bury and potable water service
• Sold in a box quantity of 4 units

Compatibility

Designed for use on pipe with an outside diameter of 11.10 to 12.12 inches with a 3/4-inch iron pipe thread tap. Verify pipe OD and thread standard before installation to confirm fit.

Installation Notes

Installation is performed by licensed plumbers or utility contractors following local water authority requirements and applicable plumbing codes such as the IPC. Shut off or isolate the line section if required by the operating pressure and local regulations before drilling and tapping. Use appropriate saddle tap drilling equipment sized for the outlet thread. Confirm that all strap hardware is torqued evenly and that the outlet threads are properly sealed with an approved thread sealant before restoring service pressure.

Technical Specifications

• Material: Brass
• Pipe OD Range: 11.10 to 12.12 inches
• Outlet Thread Size: 3/4 inch Iron Pipe
• Strap Style: Double Strap
• Weight: 10.65 pounds
• Box Quantity: 4

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202b-1212-ip3
