Fluke Fluke-902 FC HVAC Clamp Meter

Product Description

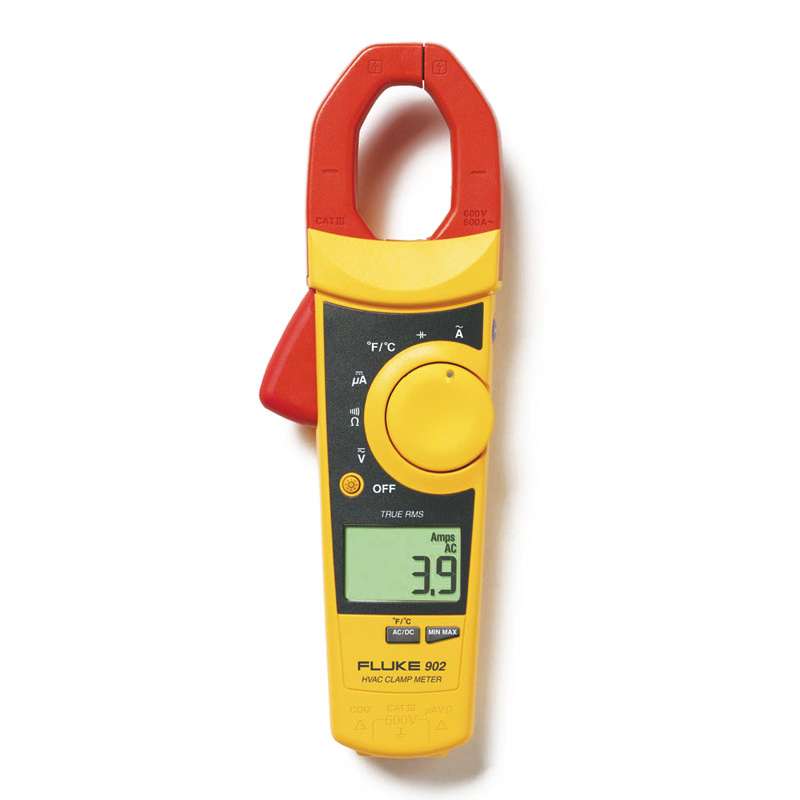

The Fluke FLUKE-902 FC is a true-rms HVAC clamp meter with a CAT III 600V and CAT IV 300V safety rating. Designed for HVAC applications, it measures capacitance, DC current (&micro A), and temperature. The ergonomic design fits comfortably in hand and features a large, backlit display for easy reading. Includes a soft carrying case and TPAK magnetic strap (optional).

• True-rms HVAC Clamp Meter
• CAT III 600V, CAT IV 300V safety rating
• Large, easy-to-read backlit display

Product Highlights

Compact and versatile HVAC clamp meter for essential measurements, featuring a durable design and wireless connectivity.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: FLUKE-902 FC
• Country of Origin: Singapore

Technical Specifications

• ECCN: 3A992
• Country of Origin: Singapore
• UNSPSC: 41113600
• Display Type: Backlit
• Model Number: FLUKE-902
• Power Source: Battery
• Product Type: Clamp Meter
• Safety Category: CAT III 600 V
• Clamp Meter Type: Current and Voltage Tester
• Functions Measured: AC Voltage,DC Voltage,AC Current,DC Current,Resistance,Frequency,Capacitance,Continuity
• Safety Category Level: CAT III
• Capacitance Resolution: 0.1/1 µF
• Safety Category Voltage: 600V
• Best AC Current Accuracy: 2%
• Best AC Voltage Accuracy: 1%
• Best DC Current Accuracy: 1%
• Best DC Voltage Accuracy: 1%
• Maximum Operating Temperature: +50°C
• Minimum Operating Temperature: -10°C
• Maximum AC Current Measurement: 600A
• Maximum AC Voltage Measurement: 600V
• Maximum DC Current Measurement: 200µA
• Maximum DC Voltage Measurement: 600V
• Minimum AC Current Measurement: 0A
• Minimum AC Voltage Measurement: 0V
• Minimum DC Current Measurement: 0µA
• Minimum DC Voltage Measurement: 0V
• Maximum Capacitance Measurement: 1000µF
• Maximum Temperature Measurement: +752°C
• Minimum Capacitance Measurement: 1µF
• Minimum Temperature Measurement: -14°F
• AC Current Measurement Resolution: 0.1A
• AC Voltage Measurement Resolution: 0.1V
• DC Current Measurement Resolution: 0.1µA
• DC Voltage Measurement Resolution: 0.1V
• Temperature Measurement Resolution: 0.1°C
• Best Resistance Measurement Accuracy: 1.5%
• Best Capacitance Measurement Accuracy: 1.9%
• Best Temperature Measurement Accuracy: 1%
• Battery: 2 AA Alkaline Battery
• A ac (via Jaw) Range: 60/600A
• A ac (via Jaw) Resolution: 0.01/0.1 A
• A ac (via Jaw) Accuracy: 2.0% ±5 digit (45 to 65 Hz) 2.5% ±5 digit (65 to 400 Hz)
• A ac (via Jaw) Crest factor (50Hz or 60Hz): 2.5 at 220A 3.0 at 180A >1.4 at 600A Add 2% kΩ for CF>2
• V ac Range: 600V
• V ac Resolution: 0.1 V
• V ac Accuracy: 1.5% ±5 digits (45 to 400Hz)
• V dc Range: 600V
• V dc Resolution: 0.1 V
• V dc Accuracy: 1% ±5 digits
• Ohms Range: 600/6,000/60,000 Ω
• Ohms Resolution: 0.1/1/10
• Ohms Accuracy: 1% ±5 digits
• μA Range: 200 µA
• μA Resolution: 0.1 µA
• μA Accuracy: 1% ±4 digits
• Contact temperature Range: 14 to 752°F (10 to 400°C)
• Contact temperature Resolution: 0.1 C/F
• Contact temperature Accuracy: 1% ±8 digits
• Capacitance Range: 100.0/1000 µF
• Capacitance Accuracy: 1% ±4 digits
