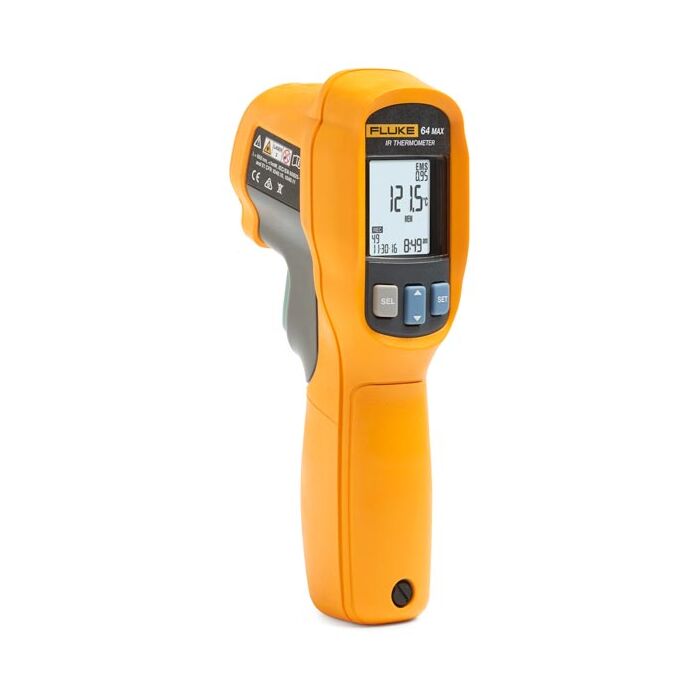

Fluke Fluke-64MAX ir Thermometer 20:1

Product Description

The FLUKE FLUKE-64MAX thermometer provides accurate measurements. Designed to withstand a 3-meter drop, this lightweight, compact infrared thermometer is reliable in harsh conditions. It features precise laser technology, a 20:1 distance to spot ratio and a flashlight with a backlit LCD display for easy viewing.

• Precise laser technology for accurate and repeatable measurements
• Temperature accuracy of up to ± 1°C or ± 1% of reading
• IP54 rated for protection against airborne contaminants

Product Highlights

This infrared thermometer has a 99 data point logging capability and a 30-hour battery life. It displays the minimum, maximum, or average temperature.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: FLUKE-64MAX
• Country of Origin: China

Technical Specifications

• Temperature Range: -30 °C to 600 °C (-22 °F to 1112 °F)
• Accuracy (Calibration geometry with ambient temperature 23 °C +/- 2 °C: ± 1.0 °C or ± 1.0 % of reading, whichever is greater ± 2.0 °C at -10 °C to 0 °C ± 3.0 °C at -30 °C to -10 °C
• Optical Resolution: 20:1 (calculated at 90 % energy)
• Response Time (95 %): < 500 ms (95% of reading)
• Spectral Response: 8 to 14 microns
• Emissivity: 0.10 to 1.00
• Display Resolution: 0.1 °C (0.2 °F)
• Repeatability (% of reading): ± 0.5% of reading or ± 0.5 °C (whichever is greater)
• Auto Capture: Set time and interval to capture up to 99 measurements
• Internal Memory: 99 data point logging capability
• Flashlight: Yes
• Power: 1 AA battery
• Battery Life: 30 hours with laser and backlight on
• Weight: 255 g (8.99 oz)
• Dimensions: (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F) (without battery)
• Operating Humidity: Non- condensing @ ≤ 10 °C (50 °F) ≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F) ≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F) ≤ 45 % RH @ 40 °C 104 °F to 50 °C (122 °F)
• Operating Altitude: 2,000 meters above mean sea level
• Drop Test: 3 meters
• Implement Standard: Q/ASF01
• Compliance: IEC 61010-1: Pollution Class 2
• Laser Safety: IEC 60825-1 Class 2, 650 nm, < 1 mW
• Ingress Protection Rating: IP 54 per IEC 60529
• Warranty: 3 years
• Special Feature: Auto Capture
• Specification Met: RoHS
• Display Type: Digital
• Product Care Instructions: Wipe Clean
• Unit Count: 1.0 Count
• Power Source: Battery Powered
• Testing Functions: Average, Difference, Maximum Temperature, Minimum Temperature
• Min. Emissivity: 0.10
• Max. Emissivity: 1.00
• Body Style: Compact
• Mounting Style: Handheld
• Includes Work Light: Work Light Included
• Intrinsic Safety: Not Specified Intrinsically Safe
• Minimum Temperature Measured °F: -22
• Max. Temperature Measured °F: 1,112
• Min. Temperature Measured: -22°
• Standards: Class II Laser, IEC 60529, IEC 60825-1: Class 2, IEC 61010-1: Pollution Class 2, Q/ASF01
• Max. Temperature Measured: Up to 1202° F
• Alert Type: Digital Display Sound
• Response Time: 500 msec
• Operating Temp. Range: 32 °F to 122 °F
• Temp. Measured Range: -22 °F to 1,112 °F
• Temperature Alerts: High Temperature, Low Temperature
• Laser Sighting Type: Single Dot
• Includes: No Secondary Measuring Method
• Emissivity Adjustability: Adjustable
• Distance to Spot Ratio: 20:1
• Calibration Certificate Type: Not Certified
• Resolution °F: 0.2°F
• Accuracy °F: ±1.0% of Reading or ±1.0° Whichever is Greater
• Data Logging: Yes
• Digital Display Screen Type: LCD
• Accuracy °C: ±1.0% of Reading or ±1.0° Whichever is Greater
• Maximum Temperature Measured °C: 600
• Minimum Temperature Measured °C: -30
• Resolution °C: 0.1°C
• Minimum Emissivity Setting: 0.10
• Maximum Emissivity Setting: 1.00
• Minimum Operating Temperature °F: 32
• Max. Operating Temperature °F: 122
• Sub-brand: fluke 64 max
• Auto Power Off: Yes
• Manufacturer Warranty Length: 3 yr
• Number of Batteries Required: 1
• Battery Chemistry: Alkaline
• Battery Run Time: 30 hr
• Battery Size: AA
• UNSPSC: 41112210
