Product Description

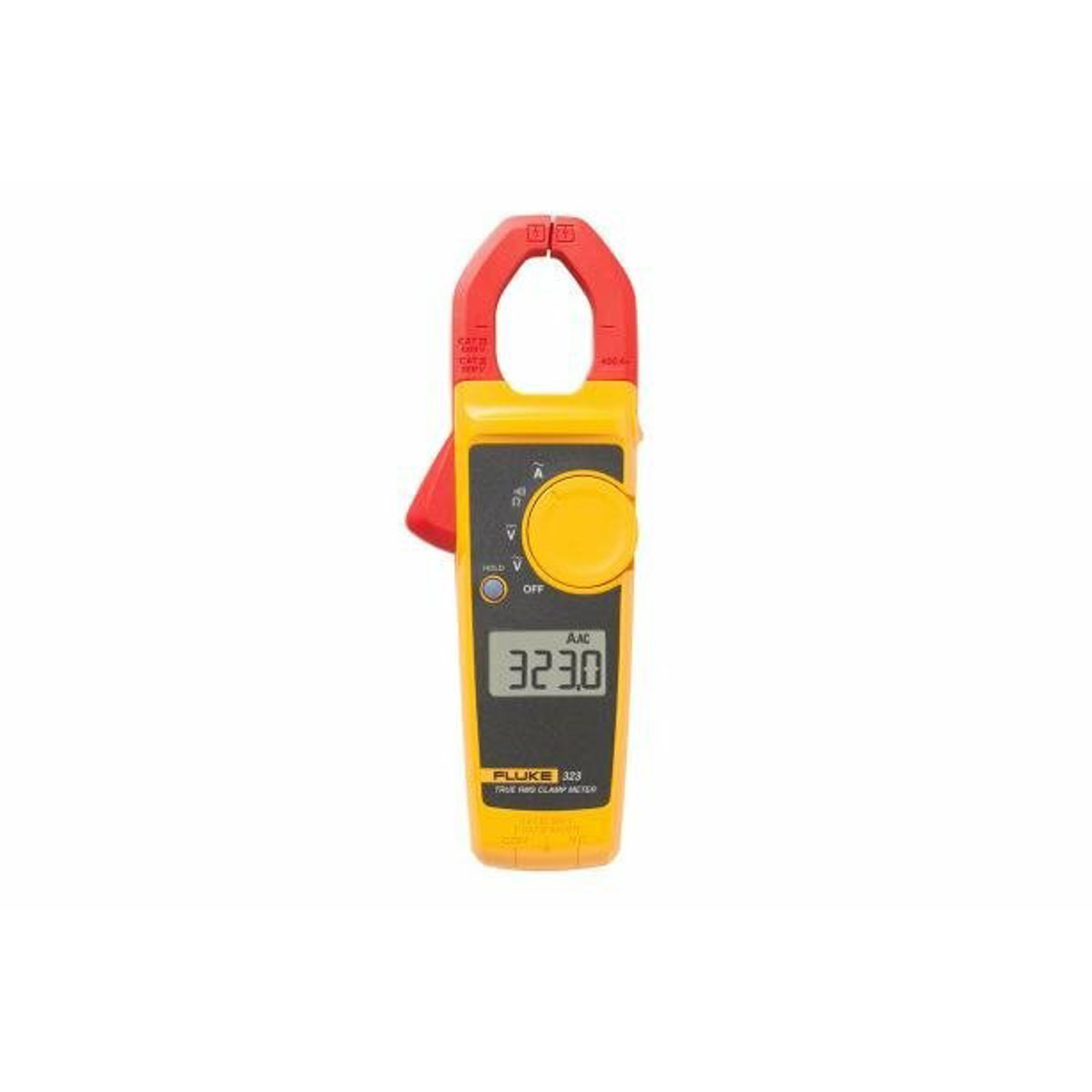

The Fluke FLUKE-323 is a clamp meter designed for current measurements up to four hundred amps and voltage ratings of six hundred volts AC and DC. This device is suited for troubleshooting by commercial and residential electricians, especially in tight cable compartments. The built-in backlit display enhances visibility in low-light settings.
- True-RMS measurements for accuracy on non-linear signals
- Resistance measurement up to 4000 Ohm with continuity detection
- Ergonomic design for ease of use
Product Highlights
The FLUKE-323 model offers various features making it reliable and precise for daily electrical tasks.
Product Information
Standard Information
-
Manufacturer: Fluke
-
Catalog Number: FLUKE-323
Technical Specifications
-
Electrical Ratings: 400 A, 600 VAC/VDC
-
Jaw Capacity: 30 mm
-
Resistance: 4000 Ohm
-
Operating Temperature: -10 to 50 deg C
-
AC Current Accuracy: 2% +/-5 Digits at 45 to 65 Hz; 2.5% +/-5 Digits at 65 to 400 Hz
-
Voltage Accuracy: 1.5% +/-5 Digits VAC; 1% +/-5 Digits VDC
-
Dimensions: 8.15 inches L x 2.95 inches W x 1.34 inches H
-
Safety Rating: CAT III 600 VAC, CAT IV 300 VAC
