Product Description

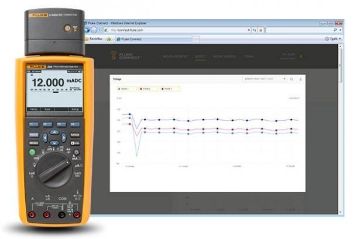

Fluke 289 is a high-performance industrial logging multimeter designed for complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. This multimeter logs data and allows for graphical review on-screen, facilitating rapid problem-solving to minimize downtime. Utilize the 289 to monitor systems while addressing other tasks.
- True-RMS AC voltage and current measurements.
- Up to 15000 recorded events with advanced data logging.
- Wide measurement ranges including 1000 VDC/VAC and 10 A.
Product Highlights
This multimeter offers broad functionality from voltage to capacitance measurements, with an accuracy of 0.025% VDC and 0.4% VAC.
Product Information
Standard Information
-
Brand: Fluke
-
Manufacturer: Fluke
Technical Specifications
-
MPN: FLUKE-289
-
Voltage Rating: 1000 VAC/VDC
-
Amperage Rating: 10 A
-
Measuring Range: 1000 VDC/VAC, 10 A, 500 MOhm
-
Temperature Rating: -328 to 2462 deg F
-
Frequency Rating: 999.99 kHz
-
Dimensions: 2.38 in L x 4.03 in W x 8.75 in H
-
Battery Type: (6) AA Alkaline, NEDA 15 A/IEC LR6 V
-
Display Type: Dot Matrix
-
Resistance: 500 Ohm to 50 MOhm
-
Capacitance: 1 nF to 100 uF
