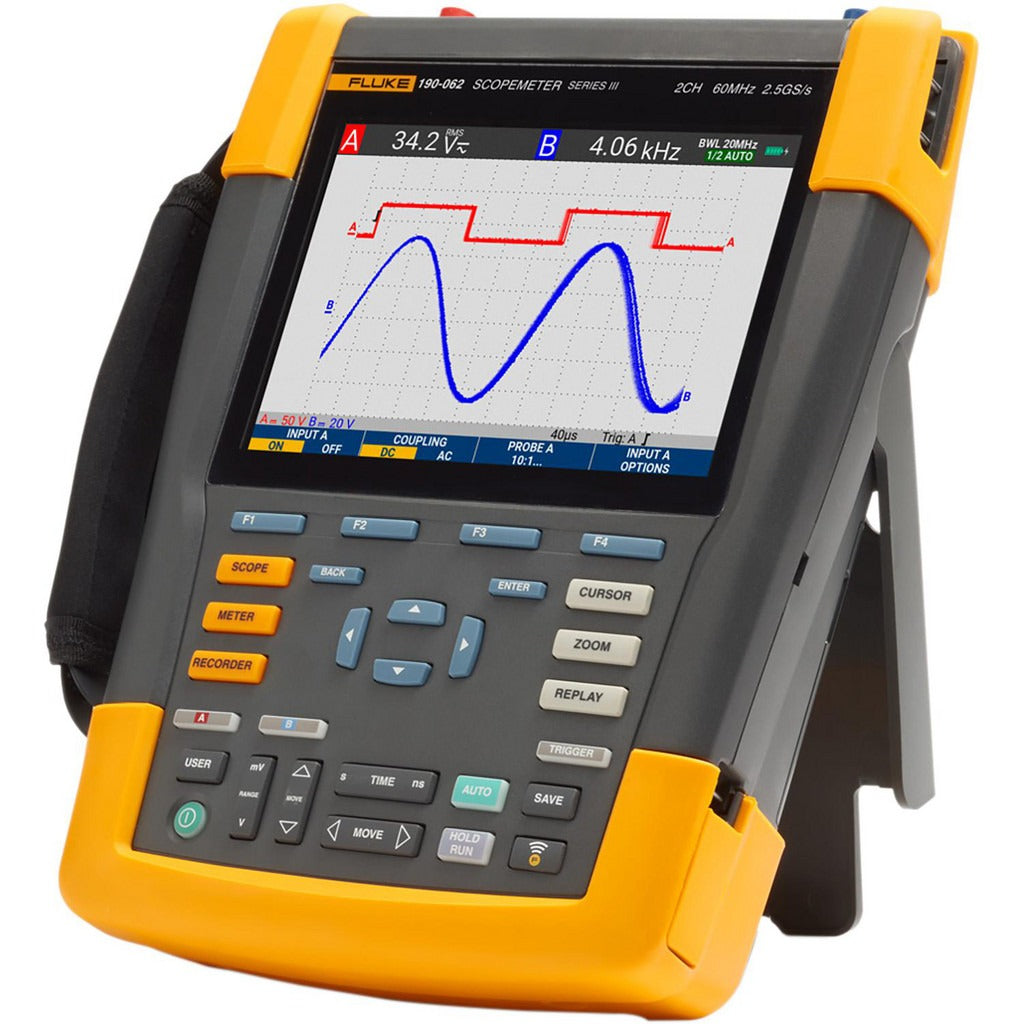

Fluke FLUKE-190-062-III Portable Oscilloscope 60 Mhz

Product Description

The FLUKE FLUKE-190-062-III is a portable, two-channel oscilloscope built for field and bench diagnostic work by electricians, HVAC technicians, and industrial service professionals. It delivers a 60 MHz bandwidth across two independent channels, making it suitable for capturing waveforms in motor drives, control circuits, variable-frequency drives, and low-voltage automation systems. The color LCD display provides clear waveform visualization in both indoor and outdoor service environments. Vertical deflection ranges from 2 mV per division to 100 mV per division, giving technicians flexibility across a wide range of signal amplitudes. This is a rugged, handheld instrument intended for professionals who need reliable waveform capture away from a fixed lab setup.

The FLUKE-190-062-III fits naturally into commercial and light industrial service work where portable signal analysis is required. Common applications include troubleshooting variable-speed drives, verifying control board output signals, diagnosing sensor wiring in HVAC equipment, checking ignition waveforms, and confirming proper operation of motor windings and actuators. Its compact form factor and LCD display make it practical for confined mechanical rooms, rooftop units, and panel enclosures where a full bench oscilloscope is not practical.

Key Features

• 60 MHz bandwidth supports accurate capture of signals in motor control and low-voltage circuits
• Two independent input channels for simultaneous comparative waveform analysis
• Vertical deflection range of 2 mV per division to 100 mV per division accommodates a wide signal range
• LCD display provides clear waveform readout in variable lighting conditions
• Portable handheld design suited for field service and on-equipment diagnostics

Compatibility

Designed as a portable handheld oscilloscope for use with standard oscilloscope probes and accessories compatible with the Fluke ScopeMeter 190 Series II platform. No specific replacement part numbers or system compatibility data were provided in the product information.

Installation Notes

This instrument is operated by qualified electrical or instrumentation technicians. Before connecting probes to live circuits, verify that the probe voltage and category rating meet or exceed the circuit being tested. Always power down and de-energize equipment before attaching or removing probes where safe to do so. Follow applicable NEC and facility safety procedures when working in panel enclosures or near energized conductors.
