Product Description

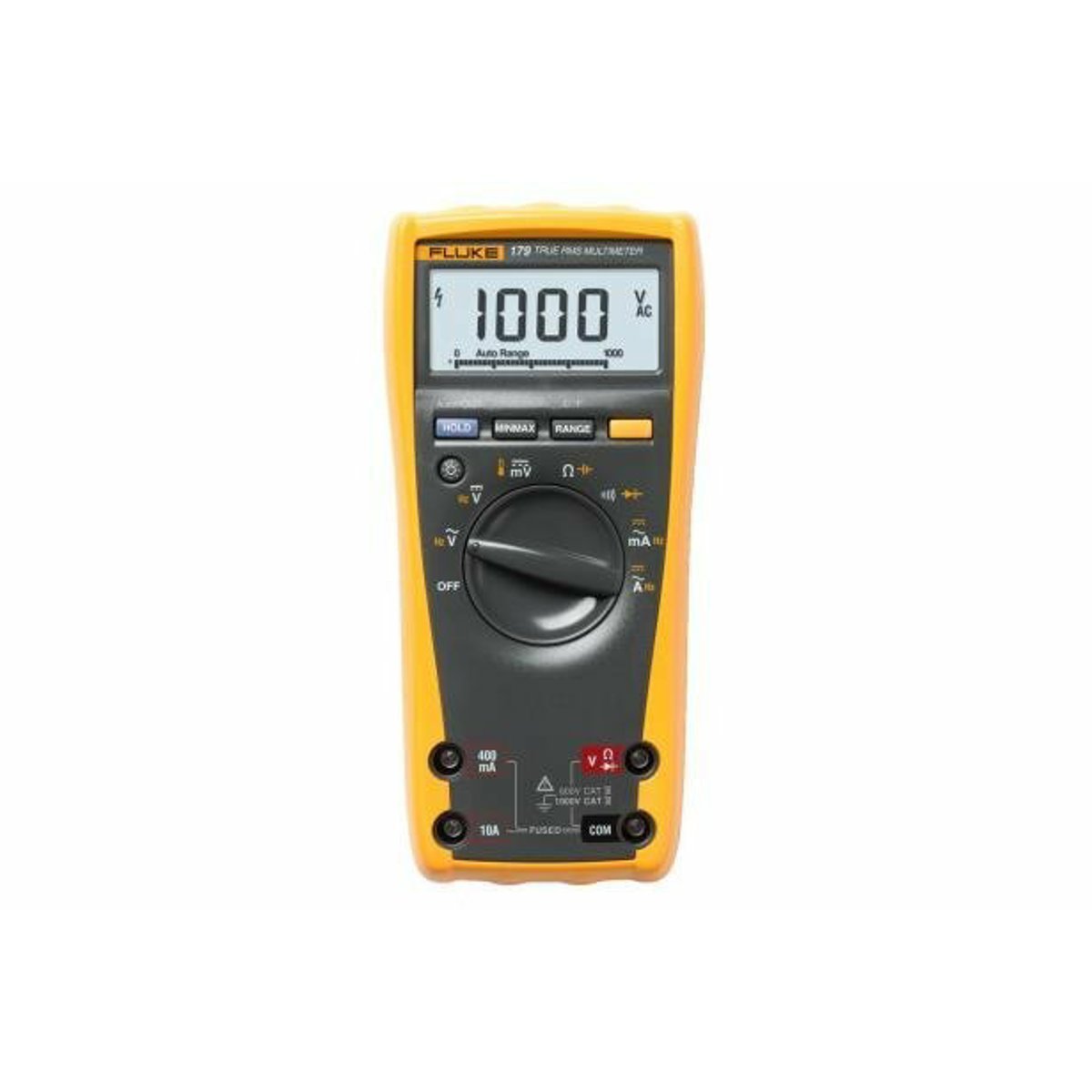

The Fluke FLUKE-179-ESFP is a True-RMS digital multimeter designed for accurate measurements in electrical and electronic systems. This device features both a digital display and a bar graph, and it can measure temperature as well. It is reliable and efficient for use in a wide range of conditions, including high energy and noisy work environments.
- True-RMS accuracy for both AC and DC measurements
- Digital display with analog bar graph for easy reading
- CAT IV 600V and CAT III 1000V safety rating
Product Highlights
This multimeter is ideal for troubleshooting and repairs. It provides critical measurements including voltage, current, resistance, and temperature. The durable design and multiple features make it suitable for intense fieldwork.
Product Information
Standard Information
-
Brand: Fluke
-
MPN: FLUKE-179-ESFP
Technical Specifications
-
Catalog Number: FLUKE-179-ESFP
-
Accuracy: 2.0 % + 3 (500 Hz to 1 kHz)
-
Amperage Rating: 10 A
-
Battery: 9 V Alkaline NEDA 1604 / 1604A
-
Display: Digital: 6000 counts, updates 4/sec; Bar Graph: 33 segments, Updates 40/sec
-
Frequency Rating: 100 kHz
-
Resistance: 50 MΩ
-
Voltage Rating: 1000 V
-
Dimensions: 7.28 x 3.54 x 1.7 inches
-
Temperature Measurement: +752°F to -40°F
