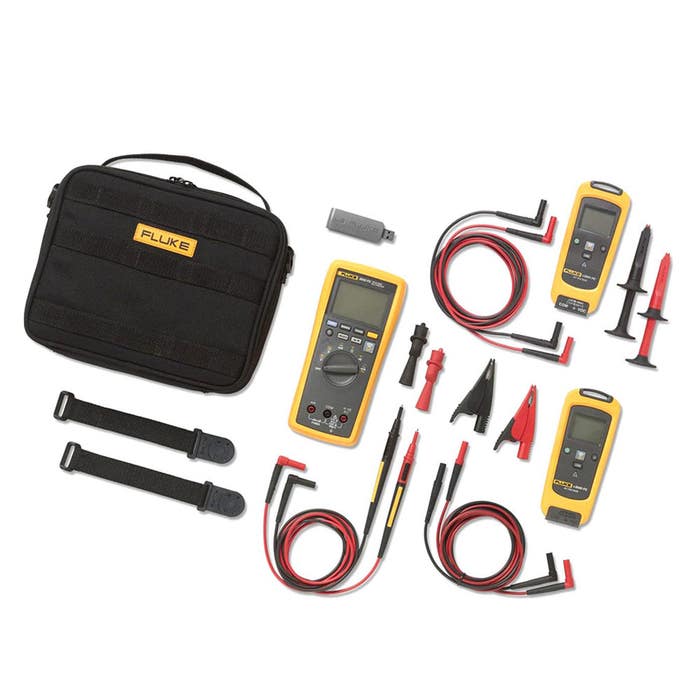

Fluke FLK-V3003FCKIT Wireless AC-DC Voltage Measurement Combo Kit

Product Description

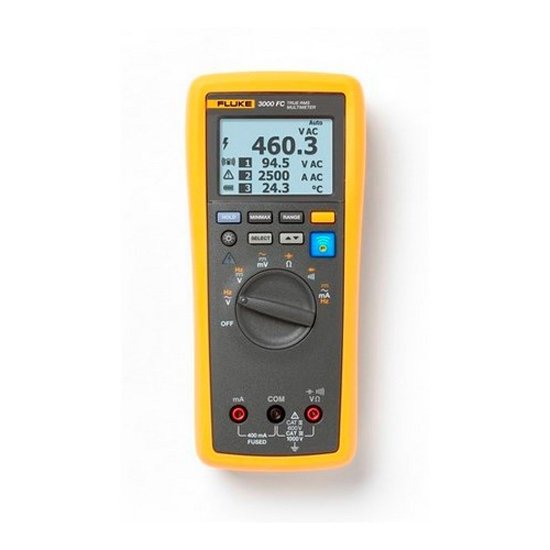

The Fluke FLK-V3003FCKIT features Fluke's 3000 FC Wireless True-RMS Digital Multimeter, Fluke's V3000 FC True-RMS AC Voltage Meter, and Fluke's V3001 FC True-RMS DC Voltage Meter. It includes a True-RMS digital multimeter; a True-RMS voltage meter that wirelessly relays AC voltage measurements; and a DC voltage meter that wirelessly relays DC voltage measurements.

• Communicate with iOS (4s and later) and Android (V4.3 and up) devices with Fluke Connect mobile app
• Wireless technology allows connectivity between phone, PC, and Fluke Connect-enabled test tools
• Team can see what you see remotely with ShareLive video calls

Product Highlights

The Fluke FLK-V3003FCKIT reduces arc flash risk and increases productivity with wireless capabilities. It measures AC/DC voltage up to 1000V and AC/DC current with 0.01mA resolution.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: FLK-V3003FCKIT
• Country of Origin: United States

Technical Specifications

• Brand: Fluke
• Catalog: 4467789
• Condition: NEW
• AC Voltage Range: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
• AC Voltage Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V, 1 V
• AC Voltage Accuracy (45 Hz to 500 Hz): 1.0% + 3
• AC Voltage Accuracy (500 Hz to 1 kHz): 2.0% + 3
• DC Voltage Range: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
• DC Voltage Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V, 1 V
• DC Voltage Accuracy (mV): 0.09% + 2
• DC Voltage Accuracy (V): 0.09% + 2 (6.000 V, 60.00 V, 600.0 V), 0.15% + 2 (1000 V)
• Continuity: Meter beeps at < 25 , beeper detects opens or shorts of 250 or longer.
• Resistance Range: 600 , 600.0 , 6.000 k , 60.00 k , 600.0 k , 50.00 M
• Resistance Resolution: 1 , 0.1 , 0.001 k , 0.01 k , 0.1 k , 0.001 M , 0.01 M
• Resistance Accuracy: 0.5% + 2 (600.0 , 6.000 k ), 0.5% + 1 (60.00 k , 600.0 k ), 1.5% + 3 (50.00 M )
• Diode Test: 2.000 V
• Diode Test Resolution: 0.001 V
• Diode Test Accuracy: 1% + 2
• Capacitance Range: 1000 nF, 10.00 F, 100.0 F, 9999 F
• Capacitance Resolution: 1 nF, 0.01 F, 0.1 F, 1 F
• Capacitance Accuracy: 1.2% + 2 (1000 nF, 10.00 F, 100.0 F), 10% typical (9999 F)
• AC Current Range (45 Hz to 1 kHz): 60.00 mA, 400.0 mA
• AC Current Resolution: 0.01 mA, 0.1 mA
• AC Current Accuracy: 1.5% + 3
• DC Current Range: 60.00 mA, 400.0 mA
• DC Current Resolution: 0.01 mA, 0.1 mA
• DC Current Accuracy: 0.5% + 3
• Frequency Range: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz
• Frequency Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz
• Frequency Accuracy: 0.1% + 1
• Maximum voltage between any terminal and earth ground: 1000 VDC or AC rms
• fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
• Display (LCD) Update rate: 4/sec
• Volts, amps, ohms: 6000 counts
• Frequency: 10,000 counts
• Capacitance: 1,000 counts
• Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6
• Battery life: 250 hours minimum
• RF communications: 2.4 GHZ ISM Band
• RF communication range Open air, unobstructed: Up to 20 m
• RF communication range Obstructed, sheetrock wall: Up to 6.5 m
• RF communication range Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5 m
• Operating Temperature: -10 C to 50 C
• Storage Temperature: -40 C to 60 C
• Temperature coefficient: 0.1 x (specified accuracy) / C (<18 C or >28 C)
• Relative humidity: 0% to 90% (0 C to 35 C), 0% to 75% (35 C to 40 C), 0% to 45% (40 C to 50 C)
• Operating Altitude: 2,000 m
• Storage Altitude: 12,000 m
• Electromagnetic compatibility: EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
• Safety compliance: ANSI/ISA 61010-1 / (82.02.01) 3rd edition CAN/CSA-C22.2 No 61010-1-12 3rd edition UL 61010-1 3rd edition IEC/EN 61010-1 2010
• Certifications: CSA, FCC, CE
• Ingress Protection (IP) rating: IP54
• Pollution degree: 2
• Size (H x W x L): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
