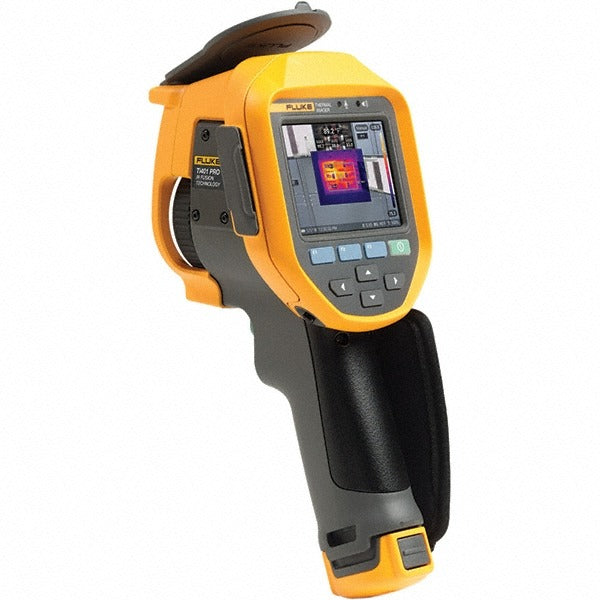

Fluke FLK-TI401-PRO 60HZ Thermal Imaging Ir Camera

Product Description

The FLUKE FLK-TI401-PRO 60HZ is a professional-grade thermal imaging IR camera built for electrical, mechanical, and building envelope inspections. It delivers a 640x480 infrared resolution with a temperature measurement range of -4 to 1202 degrees F (-20 to 650 degrees C) and an accuracy of plus or minus 2 percent. The 3.5 inch color LCD display provides a clear view in the field, while the articulating lens allows technicians to capture angles that fixed-lens cameras cannot. Power comes from two lithium-ion rechargeable batteries, and onboard 4 GB of storage holds images for report generation without an external card. Licensed electricians, HVAC technicians, and facility maintenance professionals are the primary installers and operators of this tool.

This camera is suited for commercial and residential electrical panel inspections, motor and bearing diagnostics, HVAC duct and equipment surveys, and building envelope moisture or heat-loss investigations. The articulating lens makes it practical in confined electrical panels, overhead mechanical spaces, and tight equipment rooms. Auto focus keeps workflow moving during systematic scans. Wireless connectivity supports image transfer to reporting software. The dust-resistant and splash-resistant construction holds up in field service conditions where jobsite exposure is unavoidable.

Key Features

• 640x480 infrared resolution for detailed thermal imaging
• Temperature range of -4 to 1202 degrees F (-20 to 650 degrees C)
• Articulating lens for access in confined or angled inspection points
• Auto focus with laser sighting for accurate targeting
• Wireless connectivity for image transfer and reporting workflows
• Dust-resistant and splash-resistant housing rated to IEC 60529
• 4 GB onboard storage supports report creation and image editing in the field

Compatibility

Designed for use as a professional thermal imaging instrument across electrical, HVAC, and mechanical inspection applications. No specific compatible system or replacement part numbers were provided in the product data.

Installation Notes

This camera is a handheld diagnostic instrument, not a fixed-mount component. No wiring or mechanical installation is required. Before scanning energized electrical equipment, follow NFPA 70E arc flash safety protocols and wear appropriate PPE. Keep the lens clean and free of condensation to maintain measurement accuracy, especially when moving between temperature extremes.
