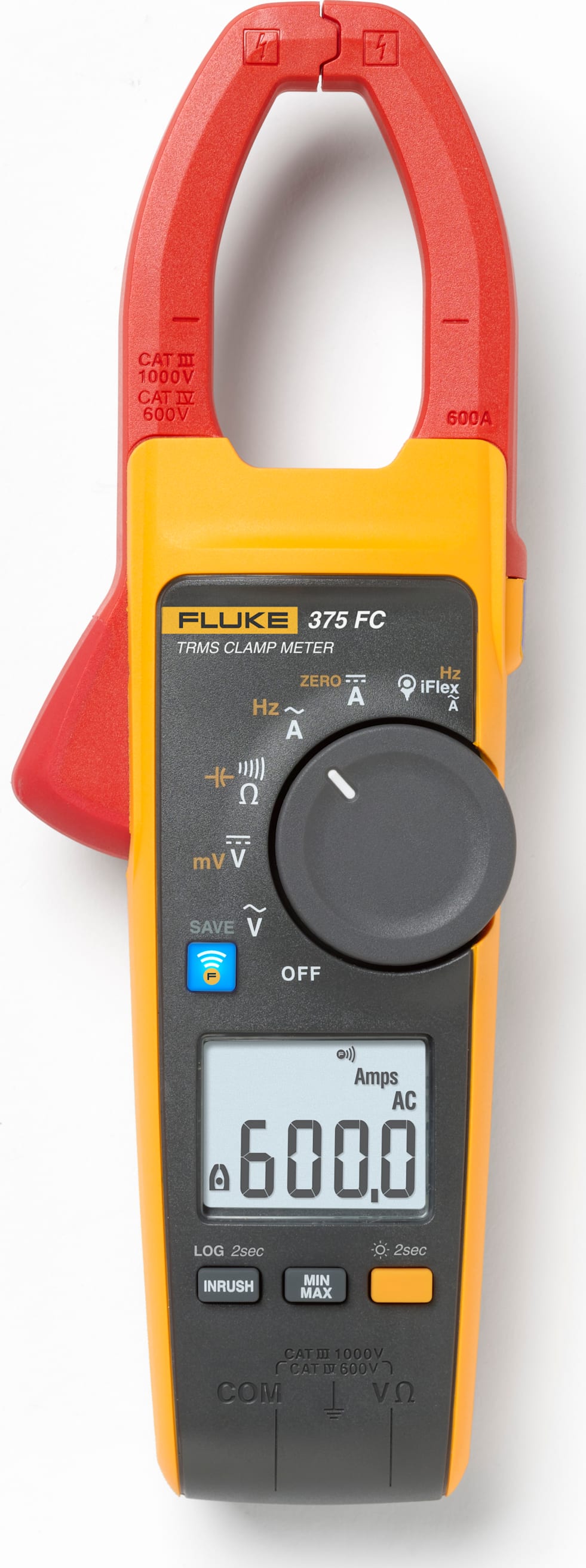

Fluke 5065976 375 FC True-RMS AC/DC Clamp Meter 600 A (34 mm Jaw)

Product Description

Fluke 5065976 is a True-RMS AC/DC clamp meter (375 FC) that measures AC and DC current to 600 A with a fixed jaw and expands to 2500 A AC with an optional iFlex probe, while measuring AC/DC voltage to 1000 V. It includes a VFD low-pass filter for motor drive measurements, Bluetooth connectivity for Fluke Connect data logging, Min/Max/Avg and inrush recording, frequency to 500 Hz, capacitance to 1000 μF, and resistance to 60 kΩ.

• True-RMS measurements; AC/DC current to 600 A (fixed jaw) and up to 2500 A AC with optional iFlex; AC/DC voltage to 1000 V
• VFD low-pass filter, Min/Max/Avg, inrush recording, frequency to 500 Hz, capacitance to 1000 μF, resistance to 60 kΩ
• Bluetooth connectivity for Fluke Connect data logging and reporting; includes TL75 test leads, soft carrying case, and two AA batteries

Product Highlights

True-RMS clamp meter with 600 A jaw, 1000 V range, VFD filter, Fluke Connect Bluetooth, 34 mm jaw opening

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 5065976
• Country of Origin: Singapore

Technical Specifications

• Brand: Fluke
• Model / MPN: 5065976 (375 FC)
• Product type: True-RMS AC/DC Clamp Meter
• True RMS: Yes
• Maximum Current (AC, jaw): 600 A
• Maximum Current (AC, with iFlex): 2500 A (with optional iFlex)
• Maximum Current (DC): 600 A
• Maximum Voltage (AC/DC): 1000 V
• mV DC Range: 500.0 mV
• Frequency Range: 5 Hz to 500 Hz
• Resistance Range: 60 ka9
• Capacitance Range: 1000 bcF
• Crest Factor: 3 @ 500 A; 2.5 @ 600 A (add 2% for C.F. >2)
• Jaw Opening: 34 mm
• Flexible Current Probe Diameter: 7.5 mm
• Flexible Current Probe Cable Length: 1.8 m (head to electronics connector)
• Trigger Level (frequency via jaw): 5 Hz to 10 Hz, e510 A; 10 Hz to 100 Hz, e55 A
• Trigger Level (flexible probe): 5 Hz to 20 Hz, e525 A; 20 Hz to 100 Hz, e520 A; 100 Hz to 500 Hz, e525 A
• Maximum Voltage Between Any Terminal and Earth Ground: 1000 V
• Battery Type: 2 x AA (NEDA 15A, IEC LR6)
• Operating Temperature: -10 b0C to +50 b0C
• Storage Temperature: -40 b0C to +60 b0C
• Operating Humidity: e490% RH (10 b0C to 30 b0C); e475% RH (30 b0C to 40 b0C)
• Operating Altitude: 3000 m
• Storage Altitude: 12,000 m
• Dimensions (L x W x H): 9.80 x 3.35 x 1.77 inches
• Weight: 0.87 lb (395 g)
• Safety Ratings: IEC 61010-1; IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
• IP Rating: IEC 60529: IP30 (non-operating)
• Radio Certification: FCC ID T68-FBLE; IC:6627A-FBLE
• EMC: IEC 61326-1; IEC 61326-2-2; CISPR 11 Group 1 Class A

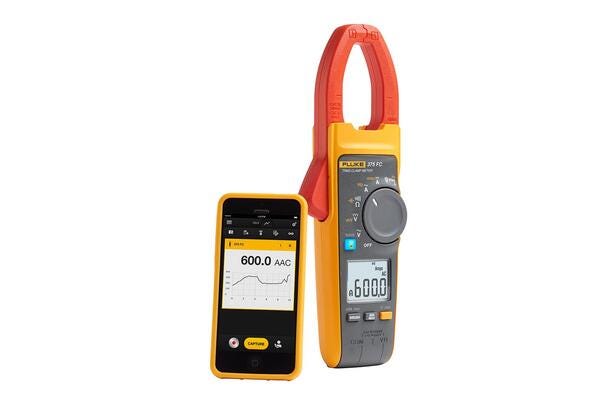

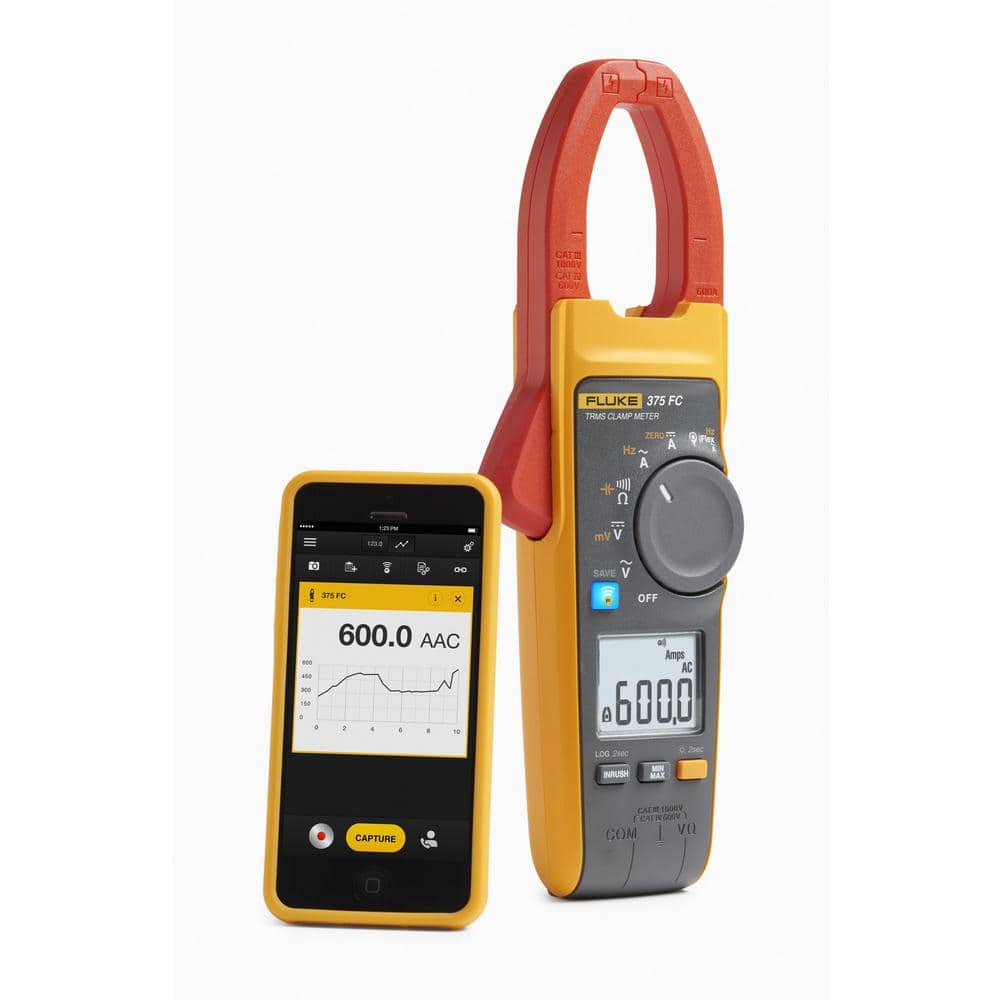

• Connectivity: Bluetooth (Fluke Connect)

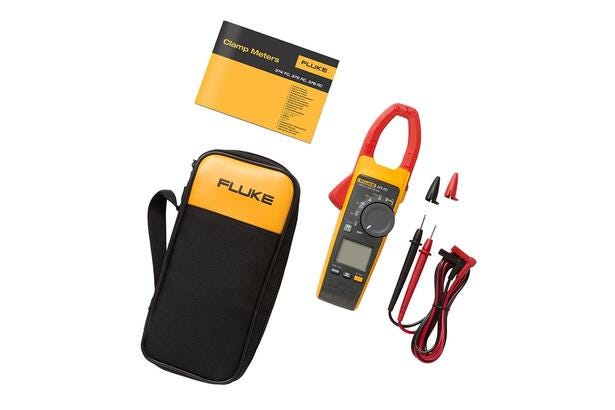

• Includes: TL75 test leads; soft carrying case; two AA batteries; quick reference guide
