Product Description

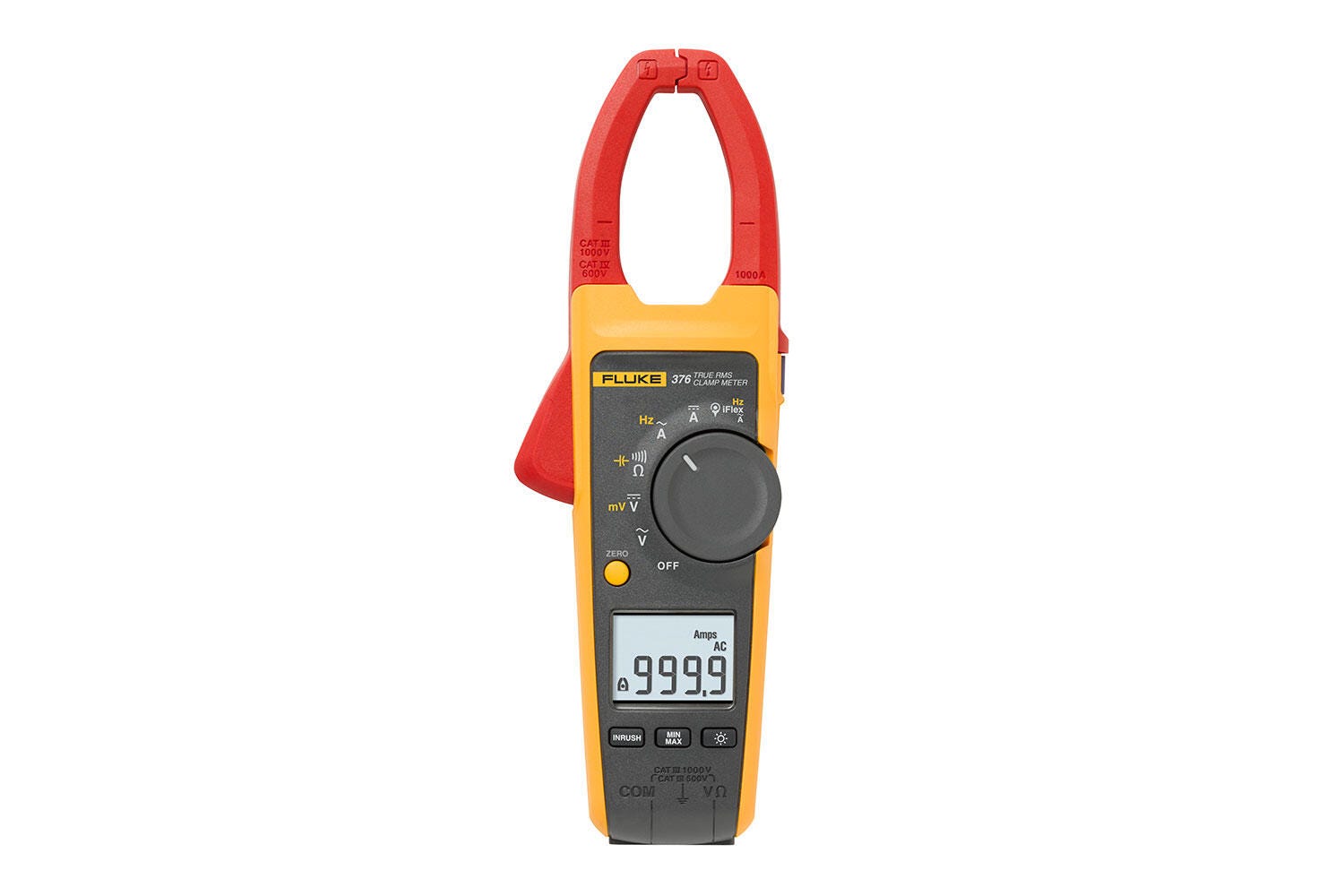

The FLUKE 5065965 is a True-RMS Clamp Meter, an advanced troubleshooting tool for industrial and commercial electricians. It features an integrated low-pass filter for accurate measurements of non-linear signals and proprietary inrush measurement technology to capture motor starting current. The included 18-inch iFlex flexible current probe expands the measurement range to 2500 A AC, allowing frequency measurement up to 500 Hz.
- Uses an integrated low-pass filter for accurate measurements of non-linear signals.
- Employs proprietary inrush measurement technology to filter noise and capture motor starting current.

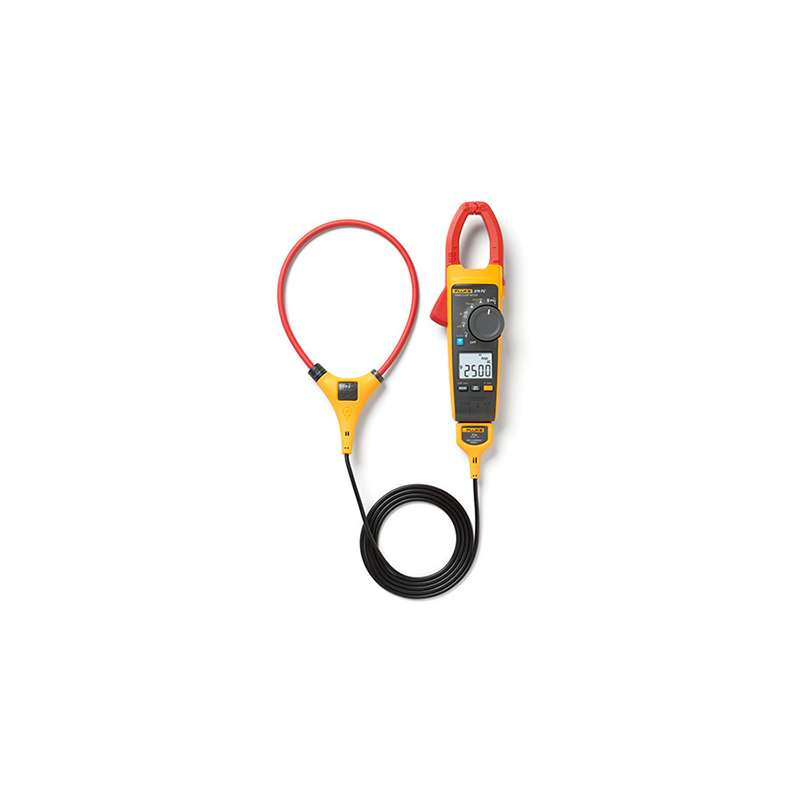

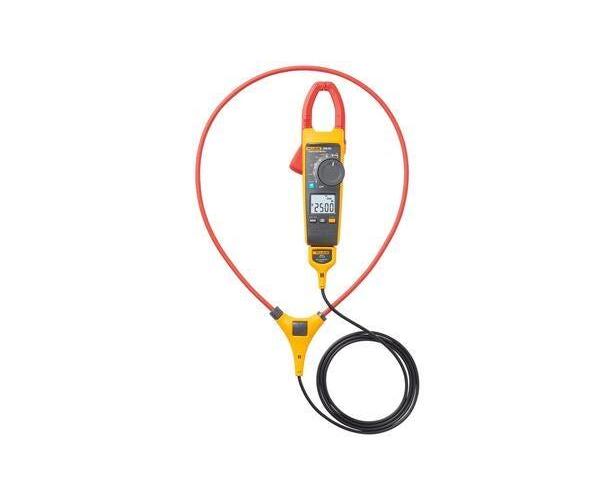

- Includes an 18-inch iFlex flexible Current Probe, expanding AC measurement range to 2500 A and frequency to 500 Hz.
Product Highlights

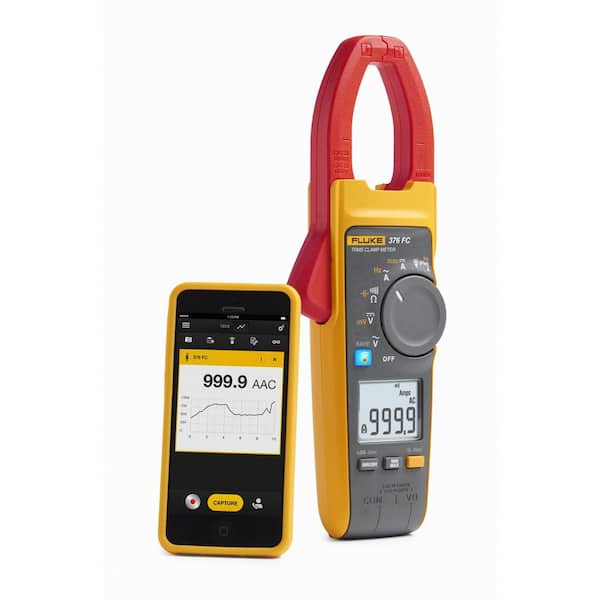

Advanced troubleshooting tool with wireless connectivity and expanded measurement capabilities for industrial and commercial electricians.
Product Information
Standard Information
-
Brand: FLUKE
-
Manufacturer Part Number: 5065965
-
Country of Origin: China
Technical Specifications
-
Brand: Fluke
-
Product Type: Clamp Meter
-
iFlex Flexible Current Probe Length: 18-in
-

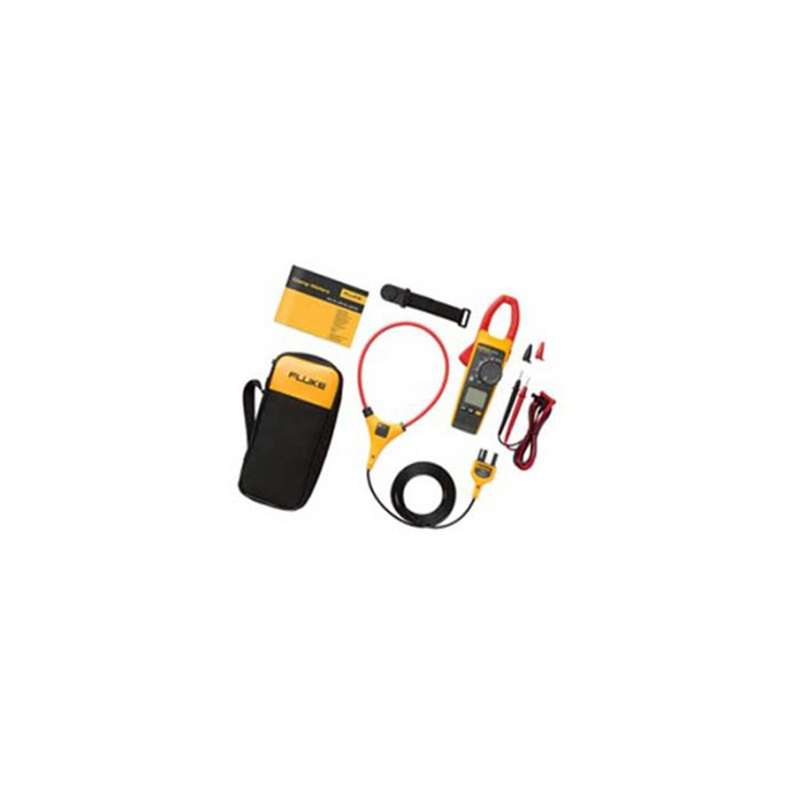

Included Accessory: TPAK magnetic hanging strap
-
Test Leads: TL75
-
Batteries: 2 AA, NEDA 15A, IEC LR6
-
Carrying Case: Soft
-
AC Current (Jaw) Range: 999.9 A
-
AC Current (Jaw) Resolution: 0.1 A
-
AC Current (Jaw) Accuracy: 2% ±5 digits (10-100 Hz), 2.5% ±5 digits (100-500 Hz)
-
AC Current (Jaw) Crest Factor: 3 @ 500 A, 2.5 @ 600 A (add 2% for C.F. >2)
-
AC Current (Flexible Probe) Range: 2500 A
-
AC Current (Flexible Probe) Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A)
-
AC Current (Flexible Probe) Accuracy: 3% ±5 digits (5-500 Hz)
-
AC Current (Flexible Probe) Crest Factor: 3.0 @ 1100 A, 2.5 @ 1400 A, 1.42 @ 2500 A (add 2% for C.F. >2)
-
DC Current Range: 999.9 A
-
DC Current Resolution: 0.1 A
-
DC Current Accuracy: 2% ±5 digits
-
AC Voltage Range: 1000 V
-
AC Voltage Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V)
-
AC Voltage Accuracy: 1% ±5 digits (20-500 Hz)
-
DC Voltage Range: 1000 V
-
DC Voltage Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V)
-
DC Voltage Accuracy: 1% ±5 digits
-
mV DC Range: 500.0 mV
-
mV DC Resolution: 0.1 mV
-
mV DC Accuracy: 1% ±5 digits
-
Frequency (Jaw) Range: 5.0 Hz to 500.0 Hz
-
Frequency (Jaw) Resolution: 0.1 Hz
-
Frequency (Jaw) Accuracy: 0.5% ±5 digits
-
Frequency (Jaw) Trigger Level: 5-10 Hz (≥10 A), 10-100 Hz (≥5 A), 100-500 Hz (≥10 A)
-
Frequency (Flexible Probe) Range: 5.0 Hz to 500.0 Hz
-
Frequency (Flexible Probe) Resolution: 0.1 Hz
-
Frequency (Flexible Probe) Accuracy: 0.5% ±5 digits
-
Frequency (Flexible Probe) Trigger Level: 5-20 Hz (≥25 A), 20-100 Hz (≥20 A), 100-500 Hz (≥25 A)
-
Resistance Range: 60 kΩ
-
Resistance Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ)
-
Resistance Accuracy: 1% ±5 digits
-
Capacitance Range: 1000 µF
-
Capacitance Resolution: 0.1 µF (≤ 100 µF), 1 µF (≤ 1000 µF)
-
Capacitance Accuracy: 1% ±4 digits
-
Max Voltage to Earth Ground: 1000 V
-
Operating Temperature: -10 °C to +50 °C
-
Storage Temperature: -40 °C to +60 °C
-
Operating Humidity (Non-Condensing): ≤90% RH (10-30 °C), ≤75% RH (30-40 °C), ≤45% RH (40-50 °C)
-
Operating Altitude: 3,000 m
-
Storage Altitude: 12,000 m
-
Jaw Opening: 34 mm
-
Flexible Current Probe Diameter: 7.5 mm
-
Flexible Current Probe Cable Length: 1.8 m
-
Safety Rating: IEC 61010-1, Pollution Degree 2; IEC 61010-2-032/033: CAT III 1000 V / CAT IV 600 V
-
IP Rating: IP30 (non-operating)
-
RF Certification: FCC ID T68-FBLE, IC 6627A-FBLE
-
EMC (International): IEC 61326-1, IEC 61326-2-2, CISPR 11 Group 1 Class A
-
EMC (Korea KCC): Class A Equipment
-
EMC (USA FCC): 47 CFR 15 subpart B (exempt device)
-
Temperature Coefficients: Add 0.1 x specified accuracy per °C above 28 °C or below 18 °C
-
Auto-Ranging: Yes
-
Data Logging: Yes
-
True RMS: Yes
-
Measurement Type: AC/DC
-
Style: Clamp
-
Alias: FLUKE-376-FC
-
RoHS Compliant: Yes
-
Product Family: 376 FC
-
Data Hold: No
-
Diode Test: No
-
Continuity Test: No
-
Display Counts: 6000
-
Jaw Capacity: 1-1/8 in
-
Display Type: LCD Backlit
