Fluke 4401563 T3000 FC Wireless K-Type Temperature Module 2 AA (1 Pack)

Product Description

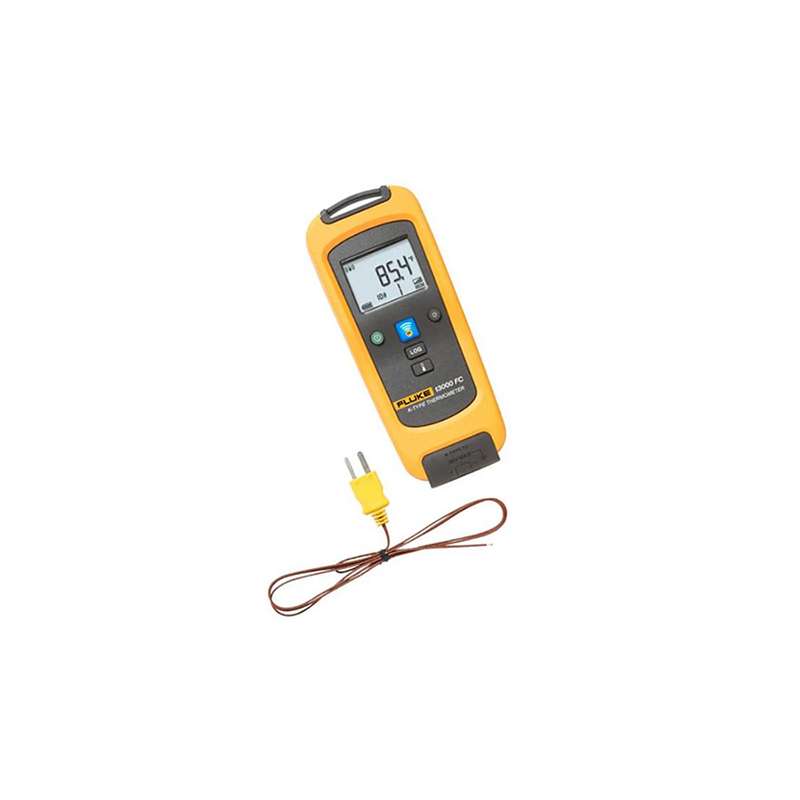

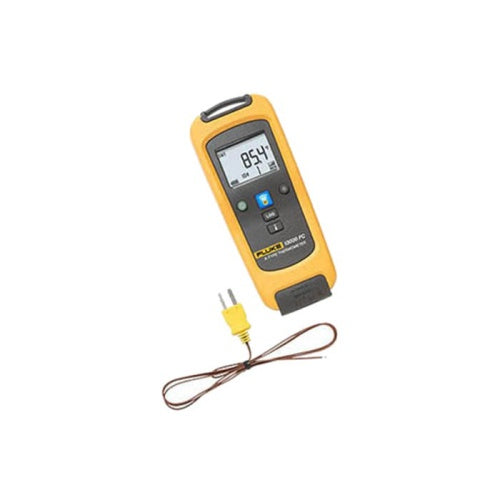

Fluke 4401563 T3000 FC is a wireless K-type temperature module that relays K-type thermocouple measurements to Fluke Connect–enabled master units and the Fluke Connect mobile app. The compact, battery-powered module accepts K-type mini input terminals, logs up to 65,000 readings, and transmits data over a 2.4 GHz link with varying ranges depending on obstruction. It includes a backlit LCD and a magnetic hanging strap.

• K-type thermocouple input with measurement range -200°C to 1372°C, 0.1°C resolution, accuracy ±(0.5% + 0.5°C).
• Records up to 65,000 readings with log interval down to 1 second; 3.5-digit backlit LCD for local viewing.
• Battery powered (2 AA, NEDA 15A/IEC LR6) with approximately 400 hours battery life; RF communications on 2.4 GHz with up to 20 m open-air range.

Product Highlights

Wireless K-type module for Fluke Connect; logs 65,000 readings; 2.4 GHz wireless up to 20 m; K-type mini input; 2 AA battery operation.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 4401563

Technical Specifications

• Brand: Fluke
• Model: FLK-t3000 FC
• Manufacturer Part Number: 4401563
• Temperature Range (K-Type): -200°C to 1372°C
• Resolution: 0.1°C
• Accuracy: ±(0.5% + 0.5°C)
• Input Terminals: K-type mini
• Display: 3.5 digits LCD with backlight
• Log Rate / Interval: 1 second minimum (adjustable by PC)
• Memory: Record up to 65,000 readings
• Battery Type: 2 AA (NEDA 15A, IEC LR6)
• Battery Life: Approx. 400 hours
• RF Communications: 2.4 GHz ISM Band
• RF Communication Range (open air): Up to 20 m
• RF Communication Range (sheetrock wall): Up to 6.5 m
• RF Communication Range (concrete/steel enclosure): Up to 3.5 m
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +60°C
• Temperature Coefficient: 0.01% of reading + 0.03°C per °C
• Temperature Scale: ITS-90
• Operating Humidity: 90% at 35°C; 75% at 40°C; 45% at 50°C
• Operating Altitude: 2000 m
• Storage Altitude: 12,000 m
• EMC: EN 61326-1:2006
• Safety Compliance: IEC 61010-1, CAT I, 3rd edition, Pollution Degree 2
• Certifications: CSA, CE, FCC (T68-FBLE) IC: 6627A-FBLE
• Ingress Protection (IP) Rating: IP42
• Pollution Degree: 2
• Dimensions (H x W x D): 6.5 x 2.5 x 1.4 in
• Weight: 0.49 lb
• Compatibility Note: Not compatible with Fluke CNX test tools
• Included Accessories: Magnetic hanging strap
