Product Description

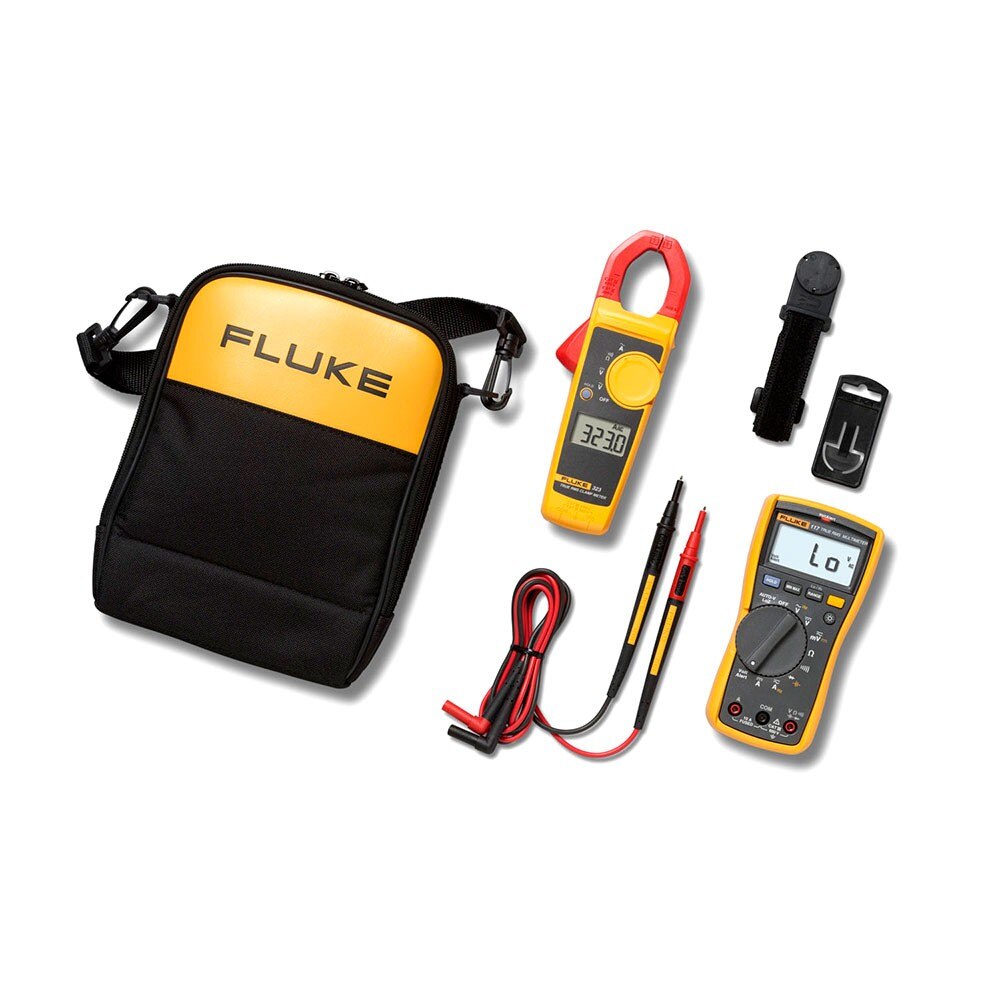

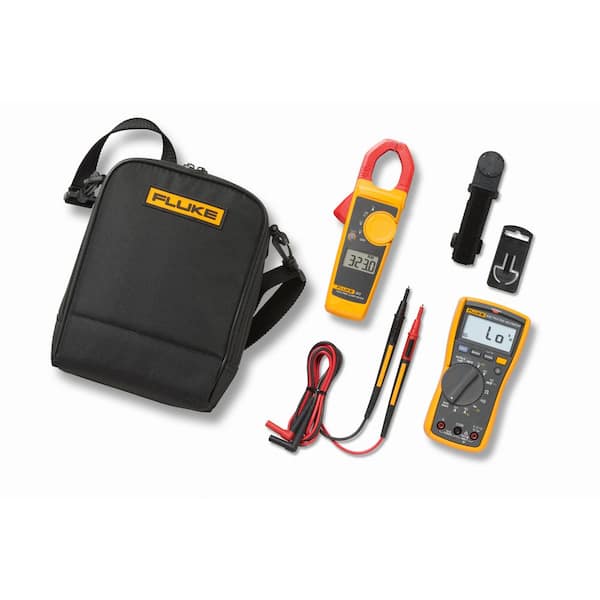

The Fluke 4296041 117/323 Electricians Combo Kit provides essential tools for electrical professionals, combining a versatile digital multimeter with a fast-acting clamp meter. This kit is suitable for residential and commercial electrical work, offering comprehensive troubleshooting capabilities. The Fluke 117 multimeter features non-contact voltage detection, AutoV/LoZ, and measures frequency and capacitance. The Fluke 323 clamp meter provides true RMS measurements, optimized ergonomics, and a small clamp design for tight cable compartments, handling current up to 400 A and voltage up to 600 V.
- Combines a versatile digital multimeter and a general-purpose clamp meter for comprehensive electrical work.

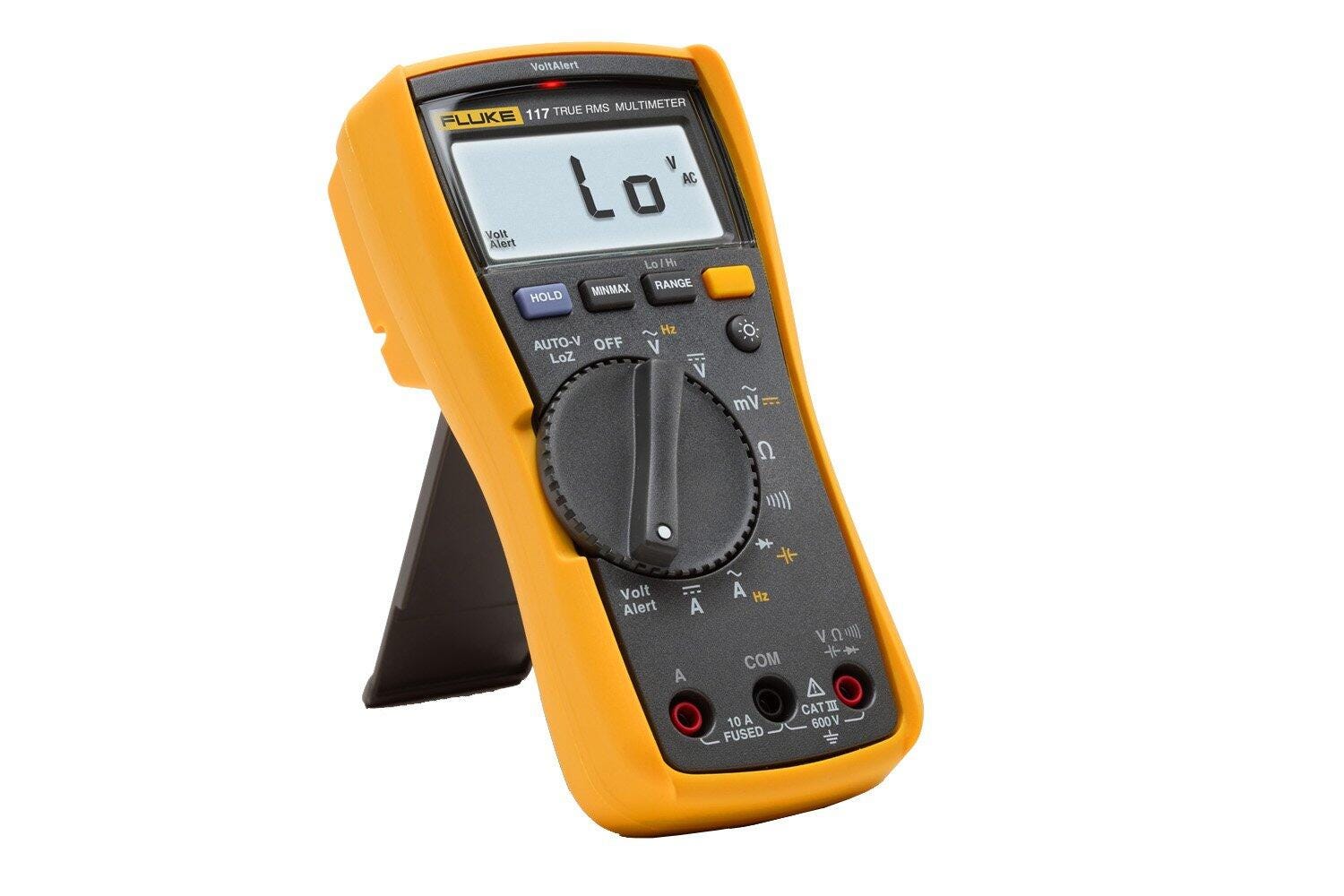

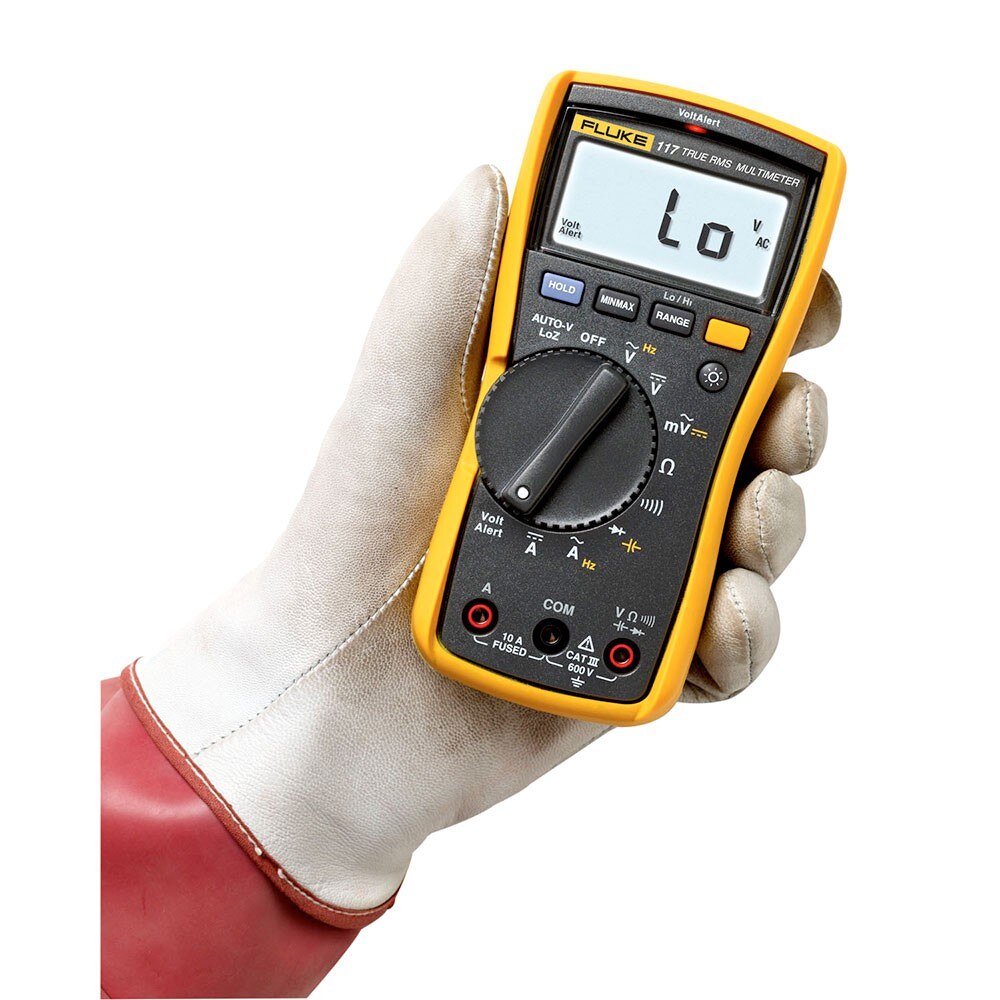

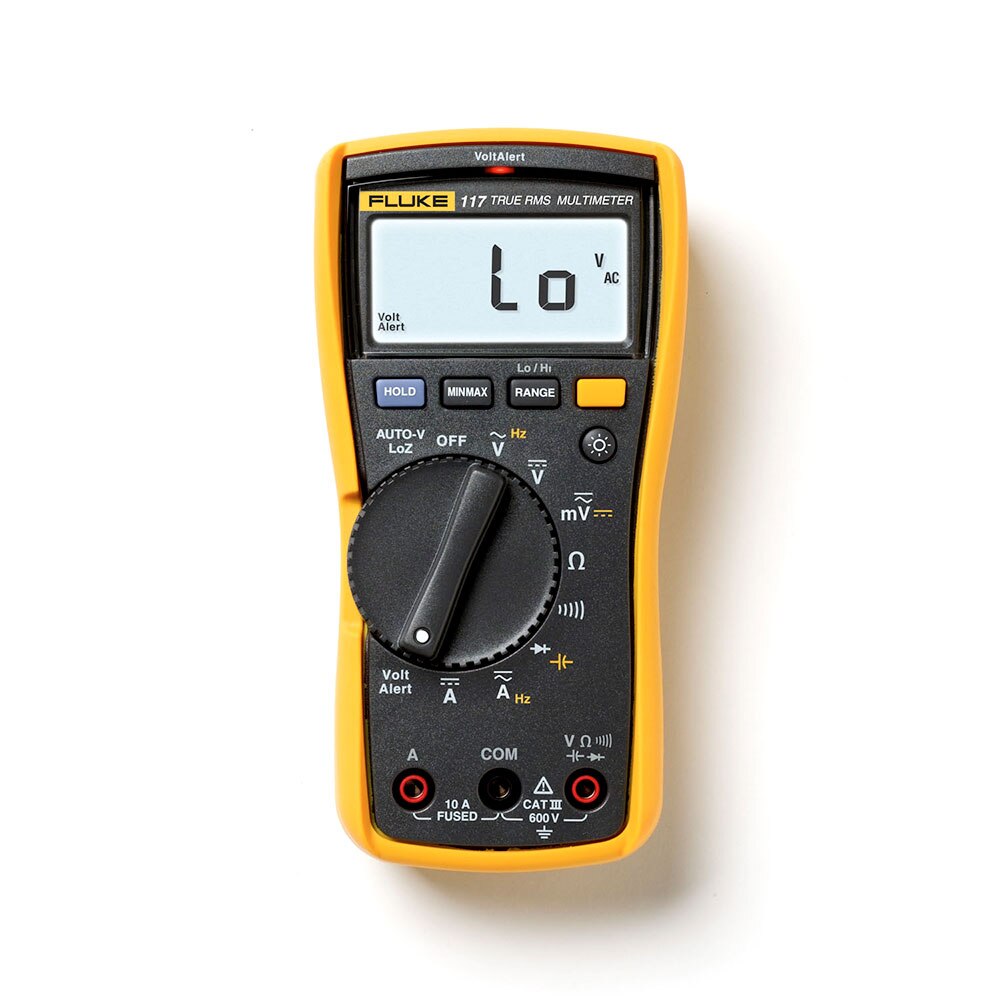

- Fluke 117 features non-contact voltage detection, AutoV/LoZ, and Min/Max/Average readings.
- Fluke 323 offers true RMS measurements, optimized ergonomics, and measures up to 400 A AC current and 600 V AC/DC voltage.
Product Highlights
Essential combo kit for electricians, featuring a digital multimeter with non-contact voltage detection and a true RMS clamp meter for current and voltage measurements up to 400A and 600V respectively.
Product Information
Standard Information
-
Brand: FLUKE
-
Manufacturer Part Number: 4296041
-
Country of Origin: Malaysia
Technical Specifications
-
Product Name: Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp Meter
-
Brand: Fluke
-
MPN: 4296041
-
SKU: FLUKE-117/323 KIT
-
Alias: FLUKE-117/323-KIT
-
Model: FLUKE-117/323 KIT
-
Barcode: 095969659222
-
Product Style: Multimeter and Clamp Meter Combo Kit
-
Manufacturer: Fluke Corporation
-
Series: 11X
-
Technology: Voltalert
-
RoHS Compliant: Yes
-
Country of Origin: MY
-
ECCN: 3A992
-
Standard Pack Quantity: 1
-
Compatible Devices: Fluke 117 multimeter, Fluke 323 clamp meter
-
Certifications: UL, CSA (Canada and US), ANSI/ISA, CAN/CSA, CE, C-Tick, TUV, VDE
-
True RMS Capability: AC voltage and current
-
Min/Max/Average Function: Yes (with elapsed time)
-
Frequency Max: 100 kHz
-
Multimeter Max Voltage to Earth Ground: 600 V
-
Multimeter Surge Protection: 6 kV peak (IEC 61010-1 600V CAT III, Pollution Degree 2)
-
Multimeter Fuse (A Input): 11 A, 1000 V FAST Fuse (Fluke PN 803293)
-
Multimeter Display Type: Digital (6,000 counts, 4 updates/sec), Bar Graph (33 segments, 32 updates/sec)
-
Multimeter Operating Temperature: -10 °C to +50 °C
-
Multimeter Storage Temperature: -40 °C to +60 °C
-
Multimeter Battery Type: 9V Alkaline (NEDA 1604A/IEC 6LR61)
-
Multimeter Battery Life: 400 hours (typical, without backlight)
-
Multimeter DC Millivolts Range: 600.0 mV
-
Multimeter DC Millivolts Accuracy: 0.5% + 2 counts
-
Multimeter DC Volts Range: 6.000 V, 60.00 V, 600.00 V
-
Multimeter DC Volts Accuracy: 0.5% + 2 counts
-
Multimeter Auto Volts Range: 600.0 V
-
Multimeter Auto Volts Accuracy: 2.0% + 3 (DC, 45-500 Hz), 4.0% + 3 (500 Hz-1 kHz)
-
Multimeter AC Millivolts True RMS Range: 600.0 mV
-
Multimeter AC Millivolts True RMS Accuracy: 1.0% + 3 (DC, 45-500 Hz), 2.0% + 3 (500 Hz-1 kHz)
-
Multimeter AC Volts True RMS Range: 6.000 V, 60.00 V, 600.0 V
-
Multimeter AC Volts True RMS Accuracy: 1.0% + 3 (DC, 45-500 Hz), 2.0% + 3 (500 Hz-1 kHz)
-
Multimeter Continuity Range: 600 Ω
-
Multimeter Continuity Threshold: < 20 Ω (on), > 250 Ω (off)
-
Multimeter Resistance Range: 600.0 Ω to 40.00 MΩ
-
Multimeter Resistance Accuracy: 0.9% + 1 (up to 6 MΩ), 5% + 2 (40 MΩ)
-
Multimeter Diode Test Range: 2.00 V
-
Multimeter Diode Test Accuracy: 0.9% + 2 counts
-
Multimeter Capacitance Range: 1 nF to 9999 μF
-
Multimeter Capacitance Accuracy: 1.9% + 2 (up to 1000 μF), 5% + 20% (> 1000 μF)
-
Multimeter AC Amps True RMS Range: 6.000 A, 10.00 A
-
Multimeter AC Amps True RMS Accuracy: 1.5% + 3
-
Multimeter DC Amps Range: 6.000 A, 10.00 A
-
Multimeter DC Amps Accuracy: 1.0% + 3
-
Multimeter Frequency Range: 99.99 Hz to 9.999 kHz
-
Multimeter Frequency Accuracy: 0.1% + 2
-
Multimeter Temperature Range: -40 °F to 752 °F
-
Multimeter Dimensions: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
-
Multimeter Weight: 550 g
-
Multimeter Safety Rating: CAT III 600 V
-
Clamp Meter AC Current Range: 400.0 A
-
Clamp Meter AC Current Accuracy: 2% ±5 digits (45-65 Hz), 2.5% ±5 digits (65-400 Hz)
-
Clamp Meter AC Voltage Range: 600.0 V
-
Clamp Meter AC Voltage Accuracy: 1.5% ±5 digits
-
Clamp Meter DC Voltage Range: 600.0 V
-
Clamp Meter DC Voltage Accuracy: 1.0% ±5 digits
-
Clamp Meter Resistance Range: 400.0 Ω / 4000 Ω
-
Clamp Meter Resistance Accuracy: 1.0% ±5 digits
-
Clamp Meter Continuity Threshold: ≤ 70 Ω
-
Clamp Meter AC Response: True RMS
-
Clamp Meter Data Hold: Yes
-
Clamp Meter Dimensions: 207 x 75 x 34 mm
-
Clamp Meter Max Wire Diameter: 30 mm (600 MCM)
-
Clamp Meter Weight: 265 g
-
Clamp Meter Safety Rating: CAT III 600 V, CAT IV 300 V
