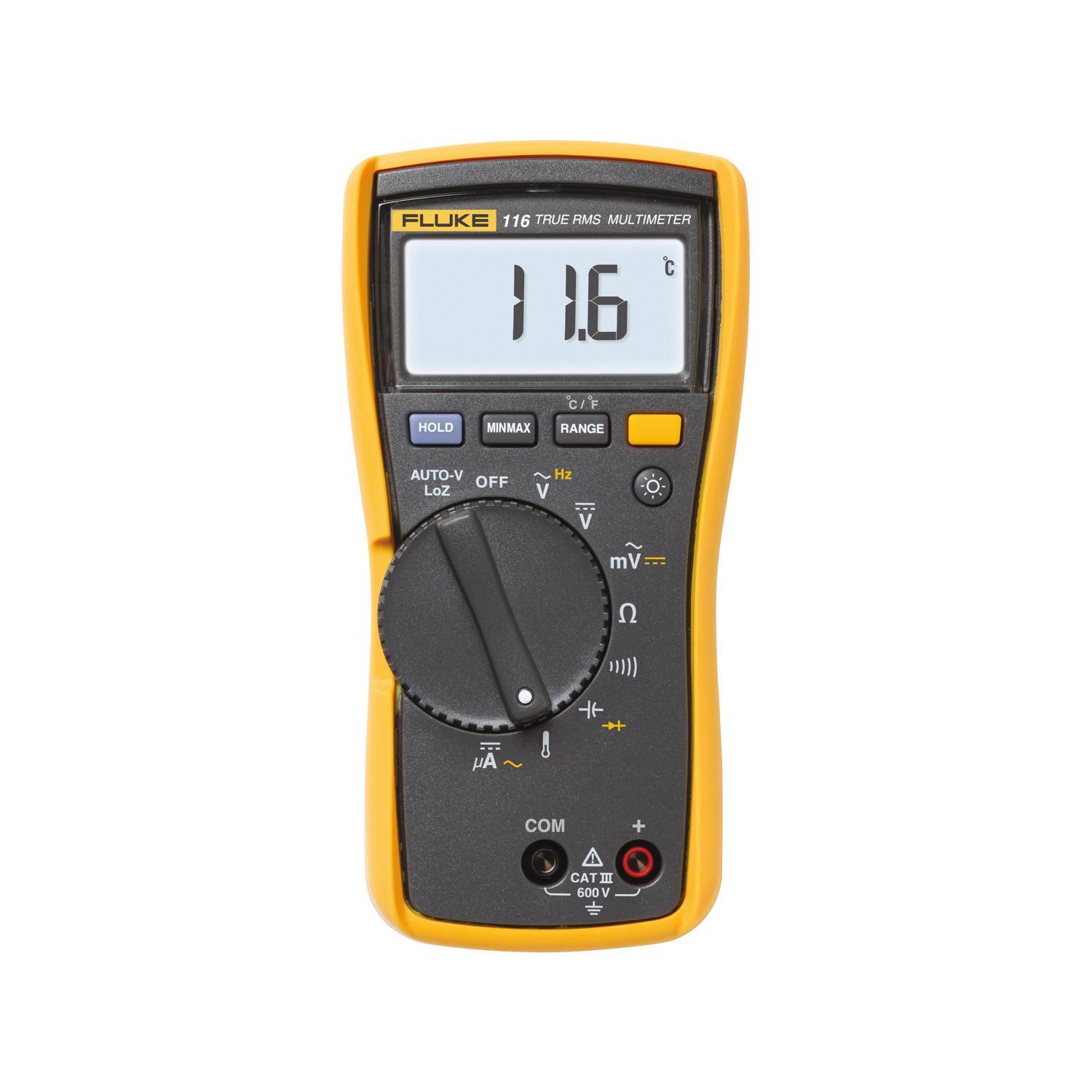

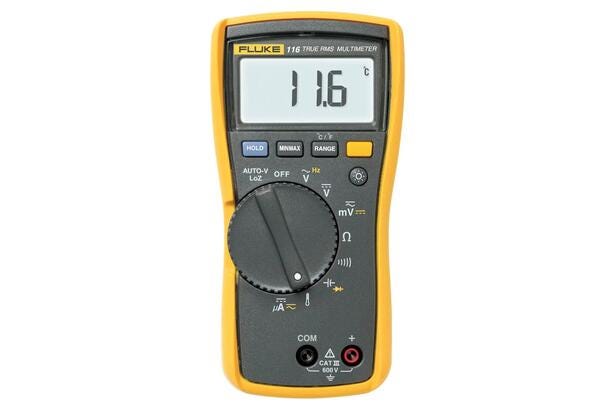

Fluke 2538803 116 Digital HVAC Multimeter

Product Description

The FLUKE 2538803 116 Digital HVAC Multimeter is designed for HVAC professionals to troubleshoot equipment. It features a built-in thermometer for temperatures up to 400°C (752°F) and microamps for flame sensor testing. This multimeter measures resistance, continuity, frequency, and capacitance. A large white LED backlight ensures visibility in poorly lit areas. It is independently tested for safe use in CAT III 600 V environments.

• Designed specifically for HVAC professionals to troubleshoot equipment.
• Includes a built-in thermometer for temperature measurements up to 400°C (752°F).
• Provides microamps to test flame sensors and measures resistance, continuity, frequency, and capacitance.

Product Highlights

This multimeter is designed for HVAC professionals, offering temperature measurement, flame sensor testing, and essential electrical measurements with CAT III 600 V safety.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 2538803
• Country of Origin: United States

Technical Specifications

• Country of Origin: United States
• Maximum Voltage to Earth Ground: 600 V
• Display Type: Digital
• Digital Display Counts: 6,000 counts
• Digital Display Update Rate: 4 per second
• Bar Graph Segments: 33 segments
• Bar Graph Update Rate: 32 per second
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +60°C
• Battery Type: 9 volt Alkaline, IEC 6LR61
• Battery Life: 400 hours typical, without backlight
• DC Millivolts Range: 600.0 mV
• DC Millivolts Resolution: 0.1 mV
• DC Millivolts Accuracy: ±(0.5% + 2 counts)
• DC Volts Range: 6.000 V, 60.00 V, 600.00 V
• DC Volts Resolution: 0.001 V, 0.01 V, 0.1 V
• DC Volts Accuracy: ±(0.5% + 2 counts)
• Auto Volts Range: 600.0 V
• Auto Volts Resolution: 0.1 V
• Auto Volts Accuracy (DC, 45-500 Hz): 2.0% + 3
• Auto Volts Accuracy (500 Hz-1 kHz): 4.0% + 3
• AC Millivolts True RMS Range: 600.0 mV
• AC Millivolts True RMS Resolution: 0.1 mV
• AC Millivolts True RMS Accuracy (DC, 45-500 Hz): 1.0% + 3
• AC Millivolts True RMS Accuracy (500 Hz-1 kHz): 2.0% + 3
• AC Volts True RMS Range: 6.000 V, 60.00 V, 600.0 V
• AC Volts True RMS Resolution: 0.001 V, 0.01 V, 0.1 V
• AC Volts True RMS Accuracy (DC, 45-500 Hz): 1.0% + 3
• AC Volts True RMS Accuracy (500 Hz-1 kHz): 2.0% + 3
• Continuity Range: 600 Ω
• Continuity Resolution: 1 Ω
• Continuity Detection: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 µs or longer
• Ohms Range (Low): 600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ, 6.000 MΩ
• Ohms Resolution (Low): 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 0.001 MΩ
• Ohms Accuracy (Low): 0.9% + 1
• Ohms Range (High): 40.00 MΩ
• Ohms Resolution (High): 0.01 MΩ
• Ohms Accuracy (High): 5% + 2
• Diode Test Range: 2.00 V
• Diode Test Resolution: 0.001 V
• Diode Test Accuracy: 0.9% + 2
• Capacitance Range (Low): 1000 nF, 10.00 µF, 100.0 µF, 9999 µF, 100 µF to 1000 µF
• Capacitance Resolution (Low): 1 nF, 0.01 µF, 0.1 µF, 1 µF
• Capacitance Accuracy (Low): 1.9% + 2
• Capacitance Range (High): > 1000 µF
• Capacitance Accuracy (High): 5% + 20%
• Lo-Z Capacitance Range: 1 nF to 500 µF
• Lo-Z Capacitance Accuracy: 10% + 2 typical
• Temperature Range (°C): -40°C to 400°C
• Temperature Resolution (°C): 0.1°C
• Temperature Accuracy (°C): 1% + 10
• Temperature Range (°F): -40°F to 752°F
• Temperature Resolution (°F): 0.2°F
• Temperature Accuracy (°F): 1% + 18
• AC Microamps True RMS Range (45-500 Hz): 600.0 µA
• AC Microamps True RMS Resolution (45-500 Hz): 0.1 µA
• AC Microamps True RMS Accuracy (45-500 Hz): 1.5% + 3
• DC Microamps Range: 600.0 µA
• DC Microamps Resolution: 0.1 µA
• DC Microamps Accuracy: 1.0% + 2
• Frequency Range (V or A input): 99.99 Hz, 999.9 Hz, 9.999 kHz, 50.00 kHz
• Frequency Resolution (V or A input): 0.01 Hz, 0.1 Hz, 0.001 Hz, 0.01 Hz
• Frequency Accuracy (V or A input): 0.1% + 2
• Surge Protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• Product Type: Multimeter
• Application/Usage: HVAC Professional
• Automatic Ranging: Yes
• Model Number: 116F
