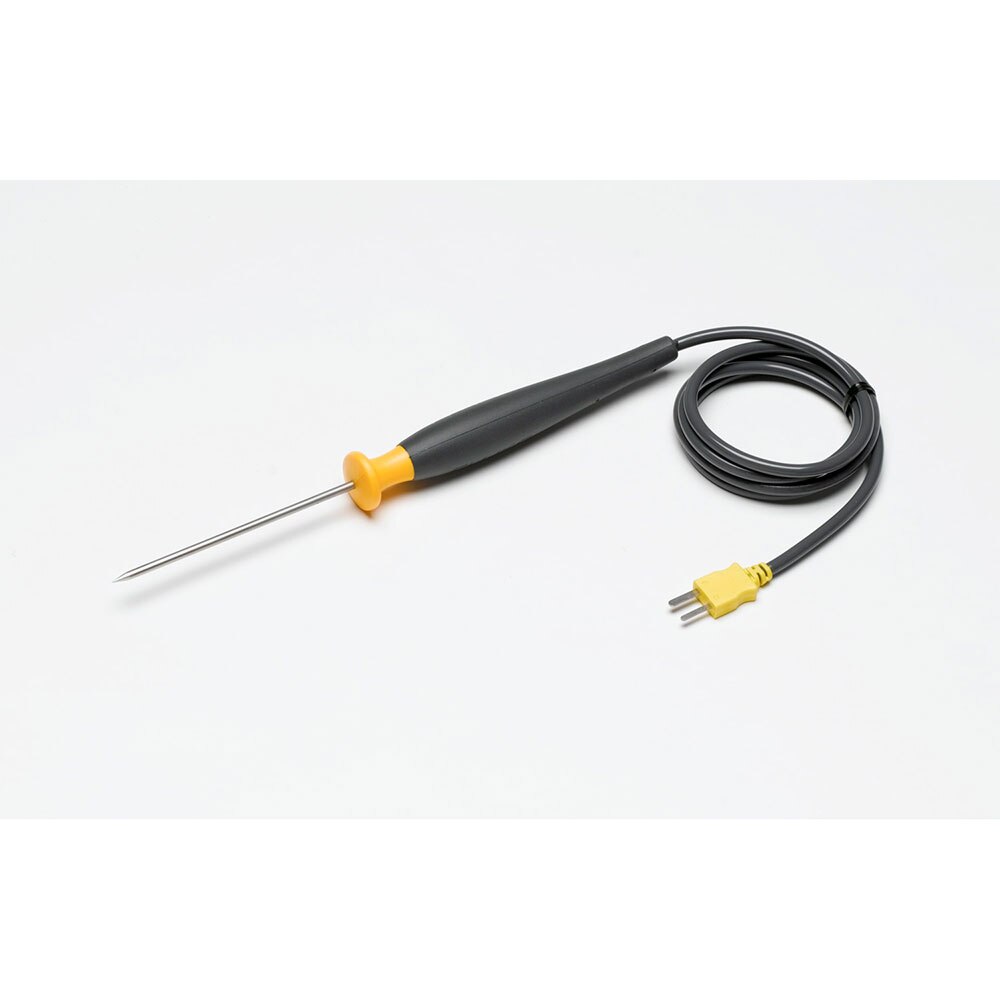

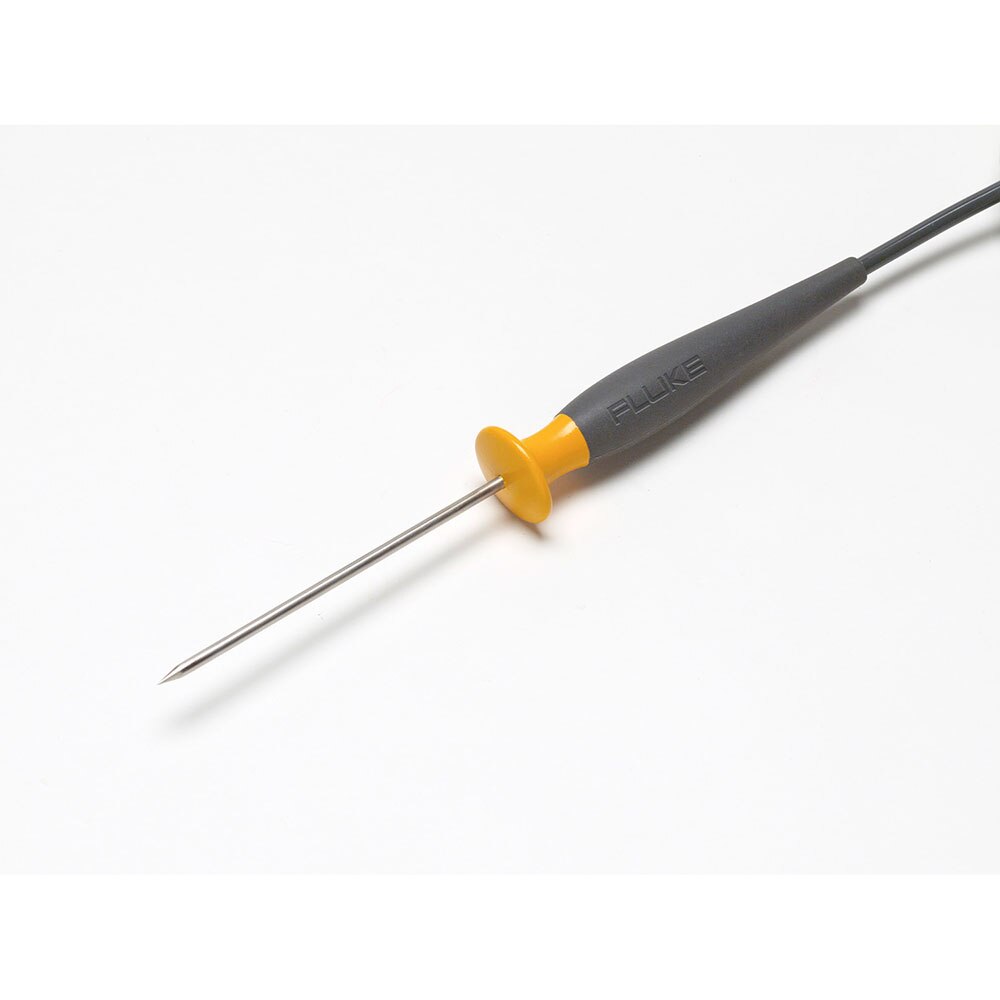

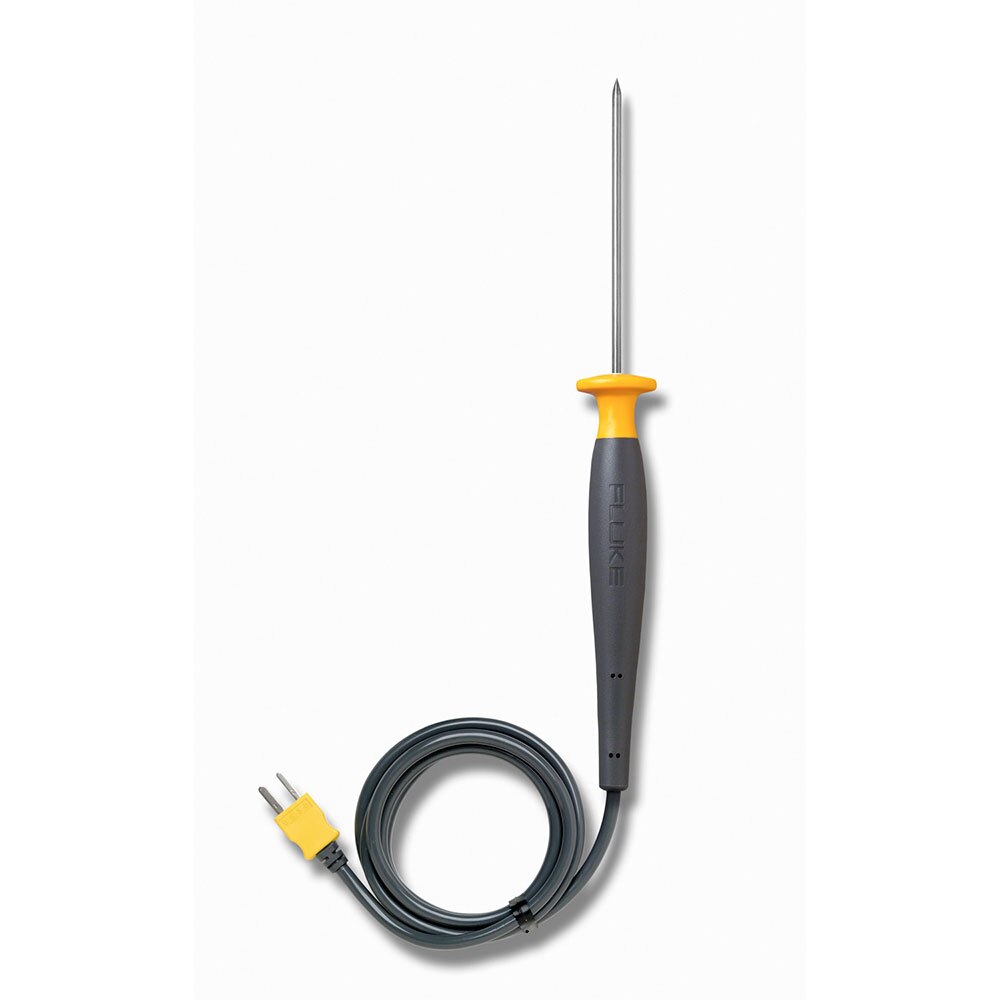

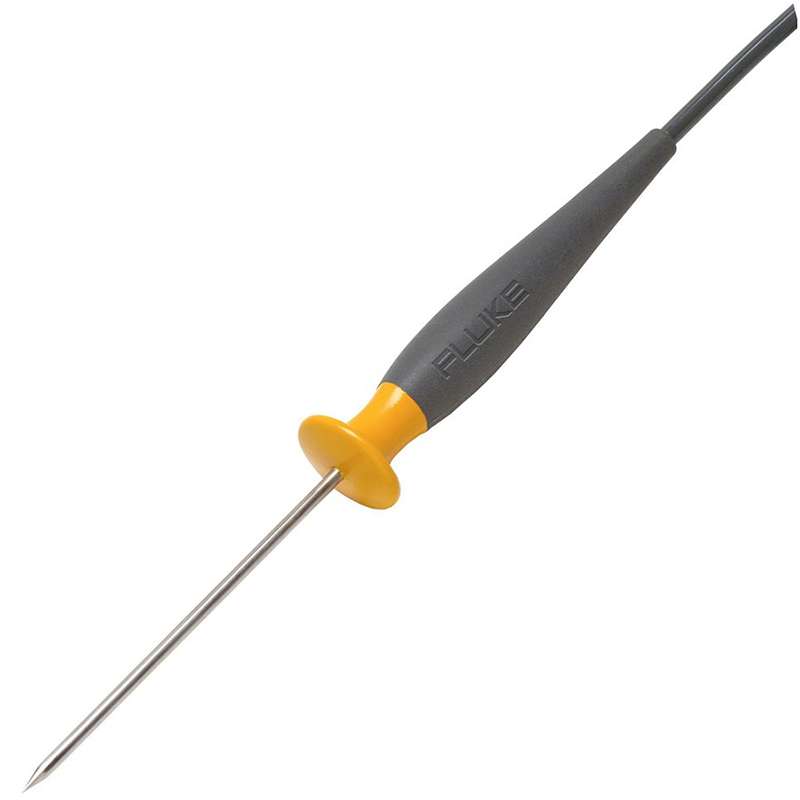

Fluke 2098706 Suregrip Piercing Temperature Probe, K-Type

Product Description

The Fluke 2098706 is the 80PK-25 SureGrip Piercing Temperature Probe suitable for the food industry, liquids, and gel. It is a K type thermocouple probe. The probe is made of 316 stainless steel, suitable for food service use. The 80PK-25 can be used with any temperature-measuring instrument that accepts Type K thermocouples and has a miniature connector input.

• Suitable for the food industry, liquids, and gel.
• Type-K thermocouple.
• Measurement range: -40 °C to 350 °C (-40 °F to 662 °F)

Product Highlights

The Fluke 2098706 Piercing Temperature Probe is designed for use in liquids, gels, soft, and semi-hard materials.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 2098706

Technical Specifications

• Brand: Fluke
• Product Type: Probes
• Type: K Standard Grade Ni-Cr vs Ni-Al (Chromel vs Alumel)
• Measurement Time: Time Constant: 3.0 seconds in 100 °C still water at sea level pressure (5 time constants = 1 complete step change, i.e., 15 seconds)
• Maximum Voltage: 24 V AC rms or 60 V DC
• Grounding: Junction Welded to Sheath
• Overall Probe Length: 8.75" (22.23 cm) from tip to end of cable strain relief
• Measurement range: -40 to 260 °C
• Output: @ 25 °C (77 °F) = 1.00 mV (reference junction @ 0 °C)
• Thermocouple Type: Type-K
