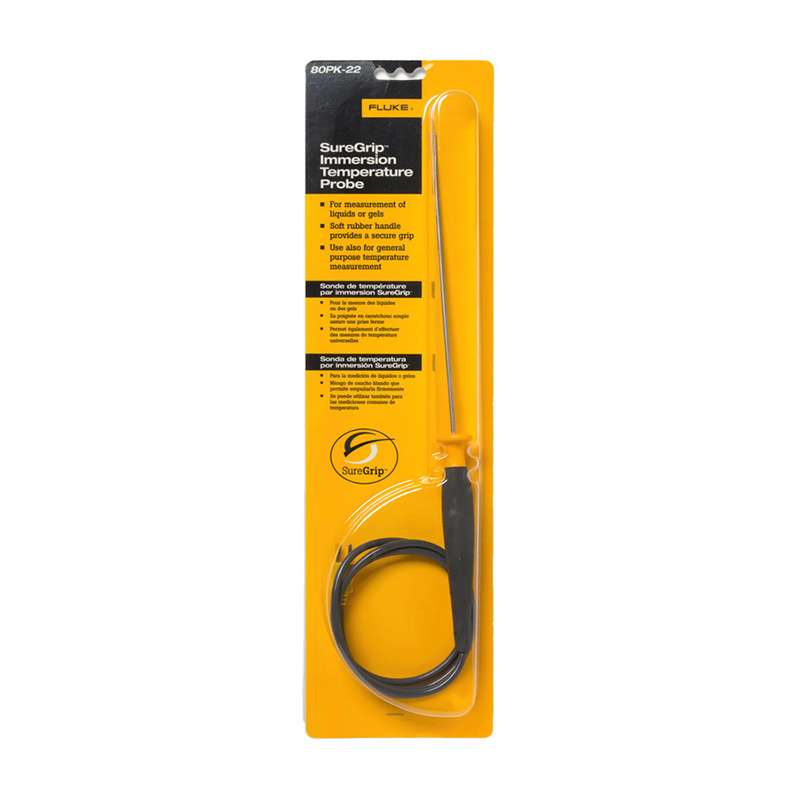

Fluke 2098684 Suregrip Immersion Temperature Probe

Product Description

The FLUKE 2098684 Suregrip Immersion Temperature Probe is designed for accurate temperature measurements in various applications. This K-type thermocouple probe is compatible with instruments accepting K type thermocouples and features a miniature connector input. It offers a wide measurement range from -40 to 1994°F (-40 to 1090°C) and is protected by an Inconel sheath. Its junction is welded to the sheath for reliable grounding.

• Compatible with any temperature measuring instrument that accepts K type thermocouples.
• Suitable for use in liquids and gels, also functions as a general-purpose probe.
• Features an Inconel sheath for protection from tip to handle.

Product Highlights

K-type thermocouple probe with a wide temperature range and robust Inconel sheath for diverse immersion applications.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 2098684

Technical Specifications

• Product Type: Probes
• Thermocouple Type: K Standard Grade Ni-Cr vs Ni-Al (Chromel vs Alumel)
• Measurement Time: 3.0 seconds for air moving at 3.33 meters / second (10.9 feet / second) at sea level pressure (5 time constants = 1 complete step change, i.e., 15 seconds)
• Measurement Range: -40 to 1994°F (-40 to 1090°C)
• Grounding: Junction Welded to Sheath
• Protection Class: Class 3 (IEC 348)
• Overall Probe Length: 12.55" (31.9 cm)
