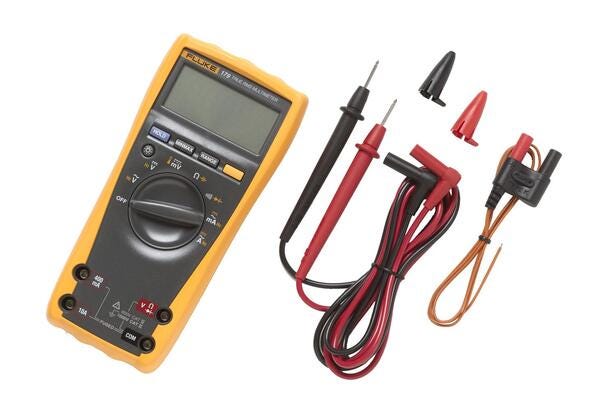

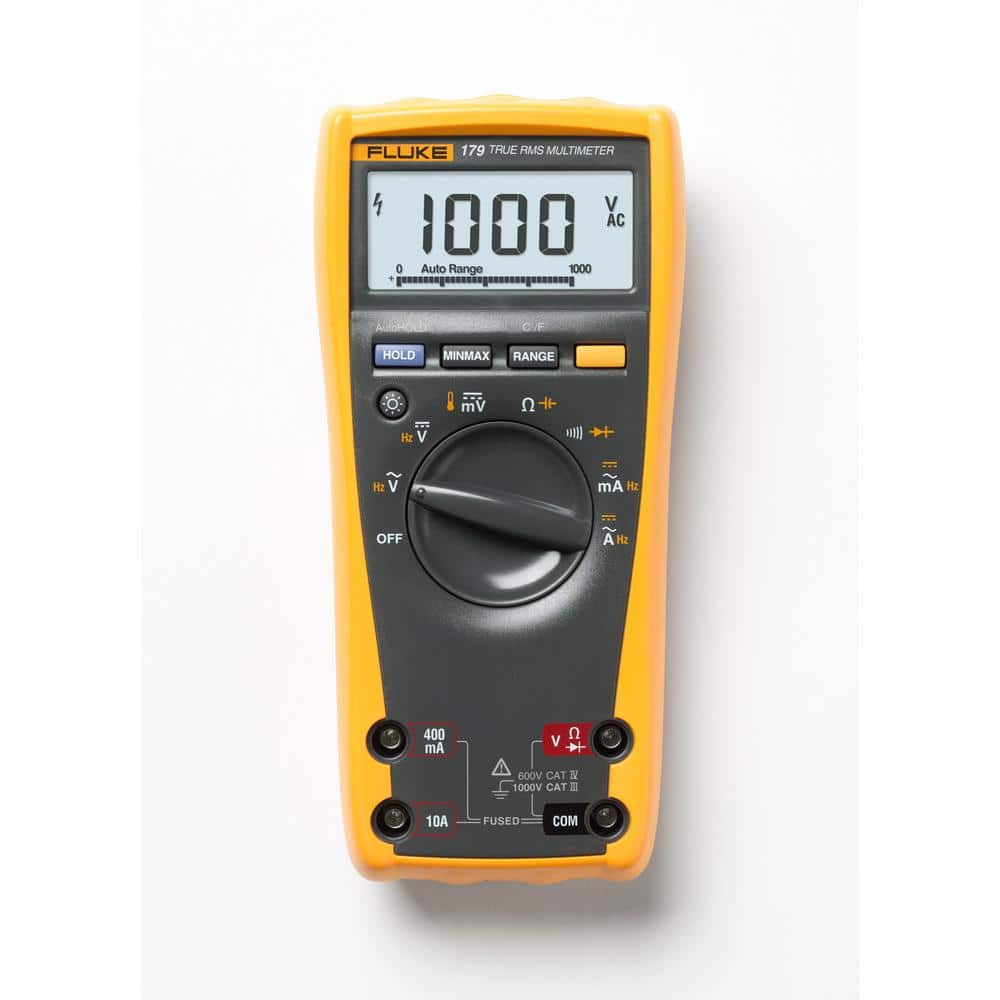

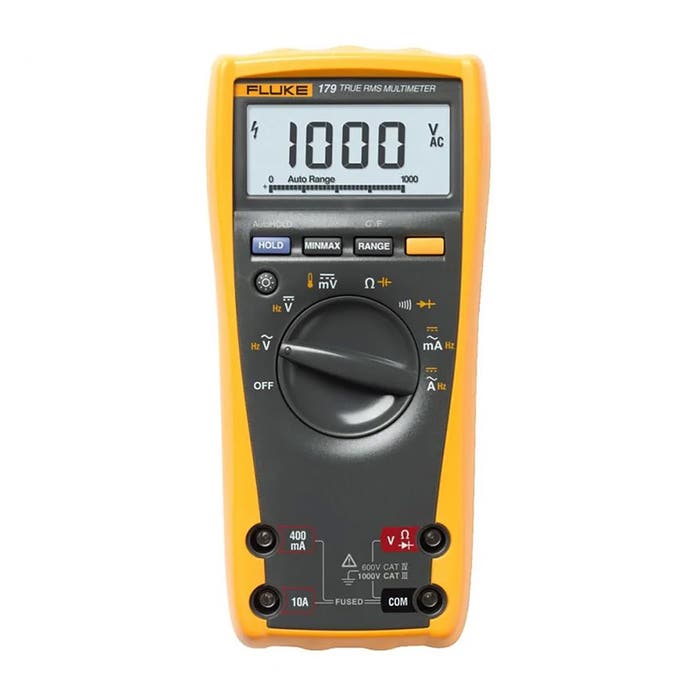

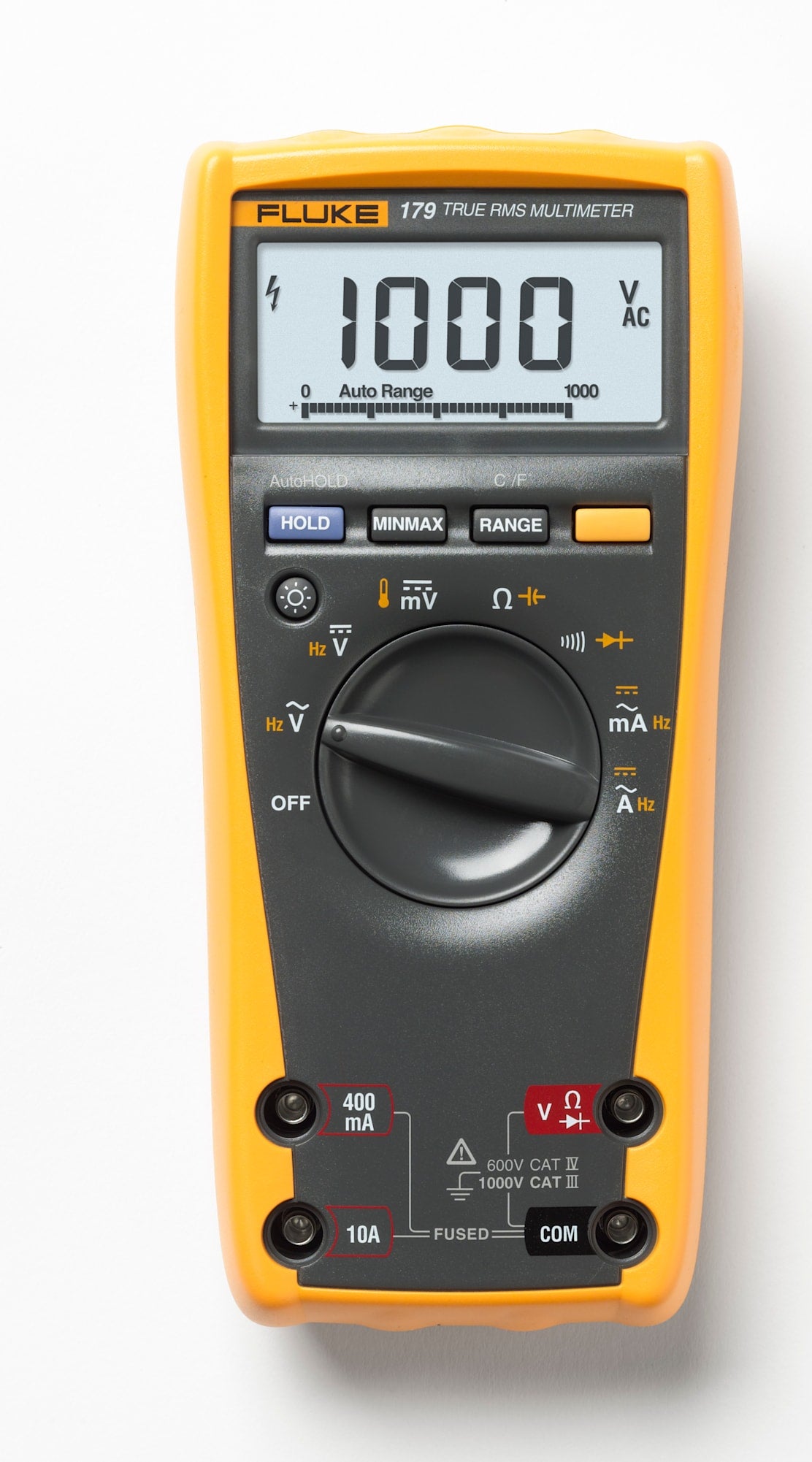

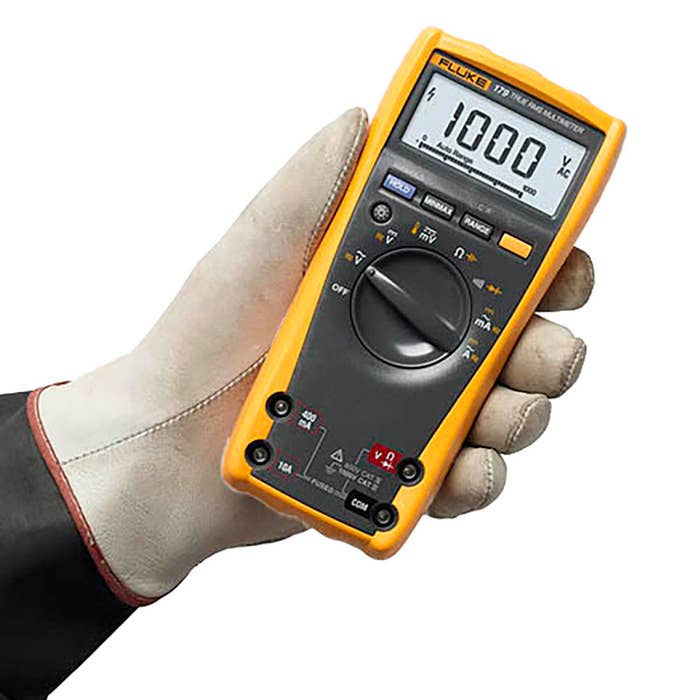

Fluke 1564549 179 True-RMS digital multimeter 1000V (EA)

Product Description

The Fluke 1564549 is the Fluke 179 True-RMS digital multimeter with backlight and built-in temperature measurement. It measures AC/DC voltage to 1000 V and AC/DC current to 10 A, provides resistance up to 50 MOhm, capacitance to 10,000 uF, frequency to 100 kHz, and temperature from -40 degrees C to 400 degrees C. The meter includes an analog bar graph, auto and manual ranging, and input protection rated to CAT III 1000 V and CAT IV 600 V.

• True-RMS measurements; auto and manual ranging; 6000-count display with analog bar graph
• Measures up to 1000 V AC/DC, 10 A AC/DC (20 A for 30 seconds), 50 MOhm resistance, 10,000 uF capacitance, and 100 kHz frequency
• Built-in temperature measurement (-40 degrees C to 400 degrees C) with included 80BK probe; safety rated CAT III 1000 V / CAT IV 600 V

Product Highlights

True-RMS 6000-count DMM with backlit display, temperature probe included, comprehensive electrical measurement ranges and CAT III/IV input protection.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 1564549
• Country of Origin: United States

Technical Specifications

• Brand: Fluke
• Model: 179
• MPN: 1564549
• UPC: 095969095204
• Counts: 6000
• True RMS: Yes
• Maximum AC/DC Voltage: 1000 V
• Maximum AC/DC Current: 10 A (20 A for 30 seconds)
• Resistance Range: Up to 50 MOhm
• Capacitance Range: Up to 10,000 uF
• Frequency Range: Up to 100 kHz
• Temperature Range: -40 degrees C to 400 degrees C
• Temperature Resolution: 0.1 degrees C
• Voltage DC Accuracy: ±(0.09% + 2)
• Voltage AC Accuracy: ±(1.0% + 3)
• Current DC Accuracy: ±(1.0% + 3)
• Current AC Accuracy: ±(1.5% + 3)
• Resistance Accuracy: ±(0.9% + 1)
• Capacitance Accuracy: ±(1.2% + 2)
• Frequency Accuracy: ±(0.1% + 1)
• Display: Backlit digital display with analog bar graph
• Ranging: Auto and manual ranging
• Recording Modes: Min/Max/Average, Peak hold
• Low Pass Filter: Yes (for VFD measurements)
• Safety Rating: EN 61010-1 CAT III 1000 V; EN 61010-1 CAT IV 600 V
• Agency Approvals: UL, CSA, TUV listed; VDE pending
• Dimensions: 1.69 x 3.54 x 7.28 inches
• Weight: 0.93 lb
• Battery Type: 9V
• Battery Life: Approximately 200 hours typical (without backlight)
• Includes: 80BK temperature probe, TL75 test leads, installed 9V battery, quick reference guide
• Drop Resistance: Withstands a fall up to 6 feet
