Fluidmaster B9WM60 Washing Machine Supply Connector 60 In.

Product Description

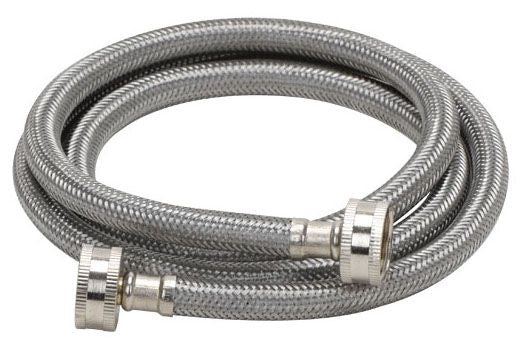

The Fluidmaster B9WM60 is a washing machine connector that measures sixty inches in length. It features a three-quarter inch hose fitting at both ends. This connector is made from 304 stainless steel, which offers strong performance and resistance to corrosion.

• Temperature rating from forty to one hundred fifty degrees Fahrenheit.
• Pressure rating of up to one hundred twenty-five PSI.

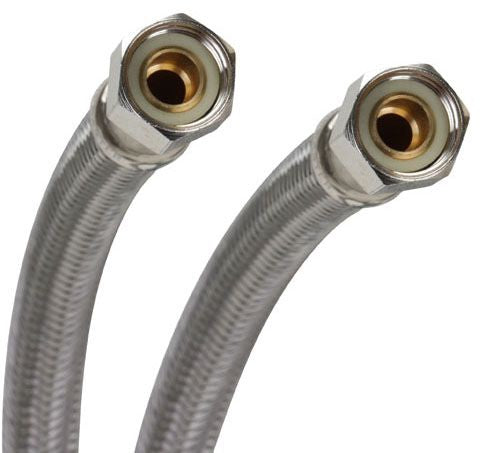

• Includes Santoprene washer and nickel-plated brass ferrule for secure attachment.

Product Highlights

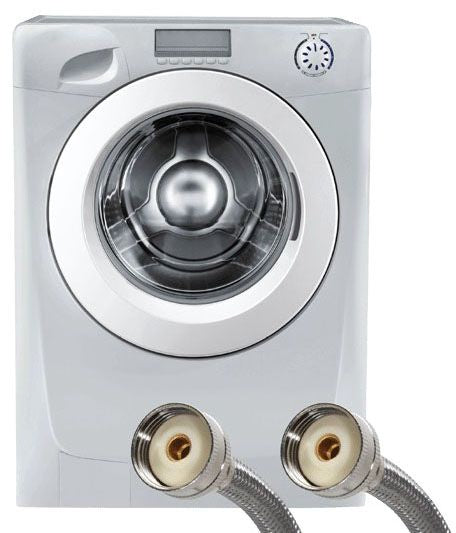

This connector is designed for washing machine applications, ensuring reliable water supply and easy installation. It complies with ASME A112.18.6/CSA B125.6 and NSF 61 standards.

Product Information

Standard Information

• Manufacturer: Fluidmaster
• UPC: 4280500965

Technical Specifications

• Type: Washing Machine Connector
• Length: 60 inches
• End Connection: 3/4 Inch Hose Fitting
• End Fitting Material: Nickel Plated Brass Alloy
• Tubing Material: 304 Stainless Steel Braided Wire
• Temperature Rating: 40 to 150 Degrees F
• Pressure Rating: 125 PSI
• Flow Rating: 7.18 to 7.26 GPM at 80 PSI
