Fluidmaster B4H24 3/4 Fip x 3/4 Compression Water Heater Connector 24 in

Brand: FLUIDMASTER
SKU: B4H24
Availability: In Stock

Ships same day if ordered by 12 pm
$29.36
$29.36
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

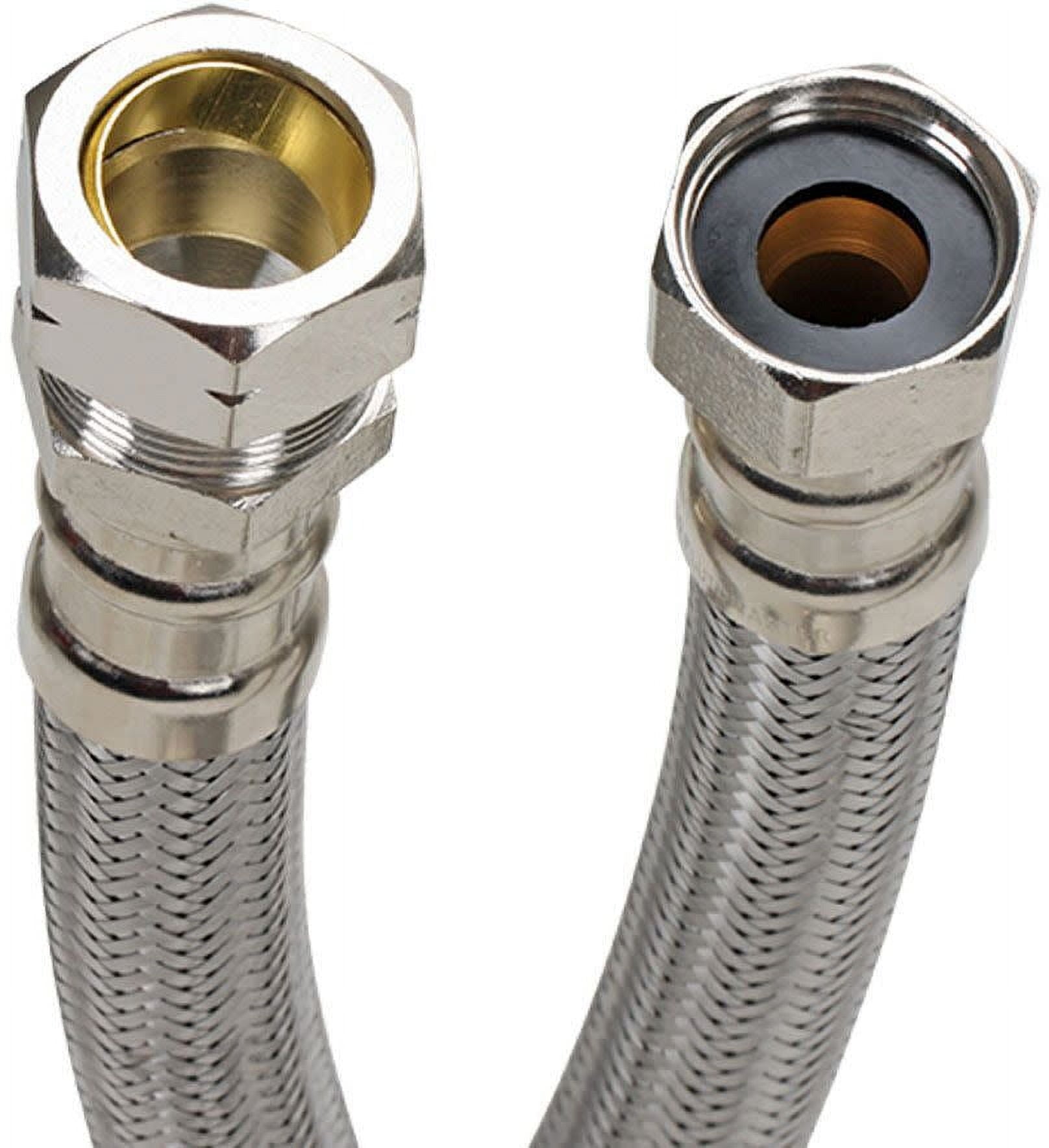

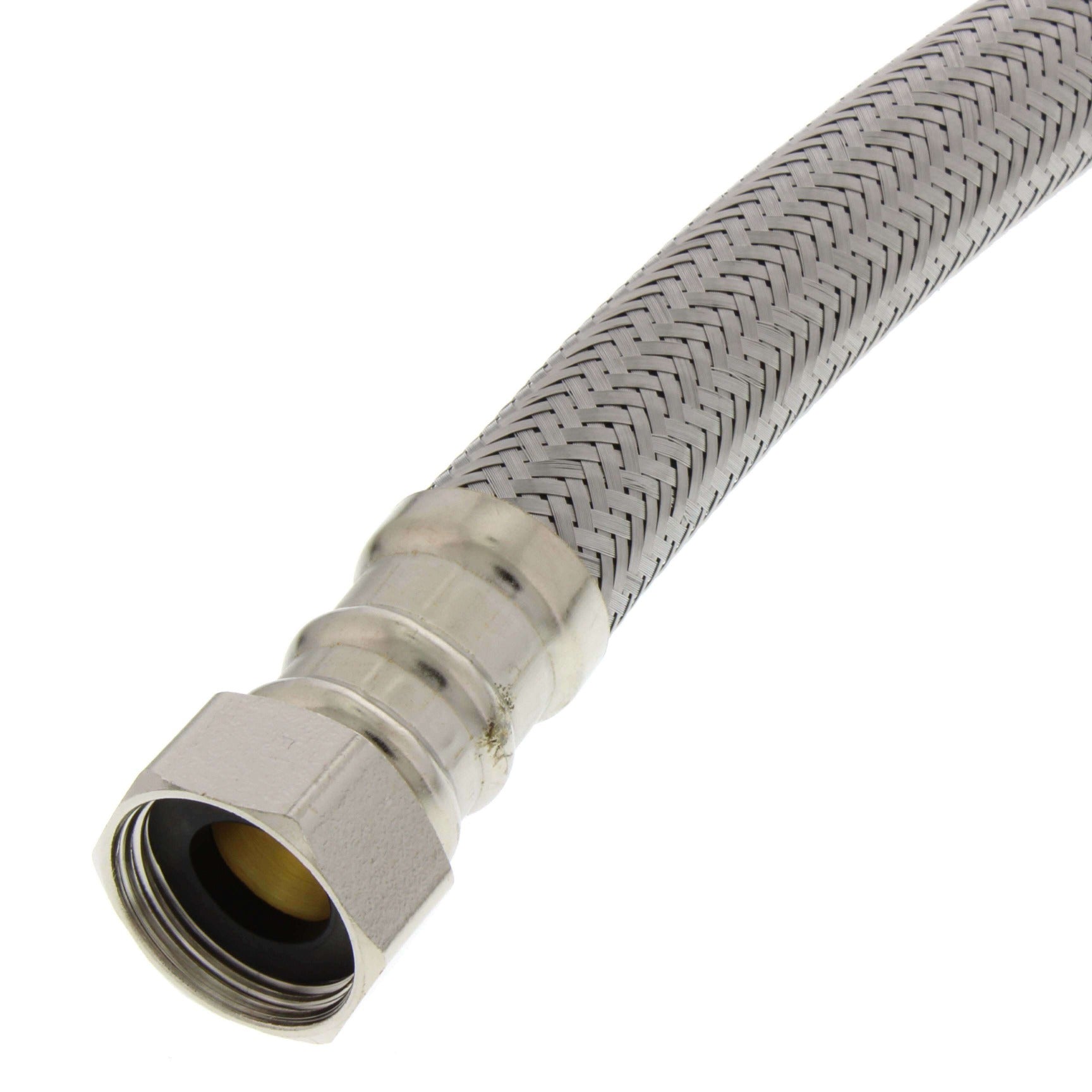

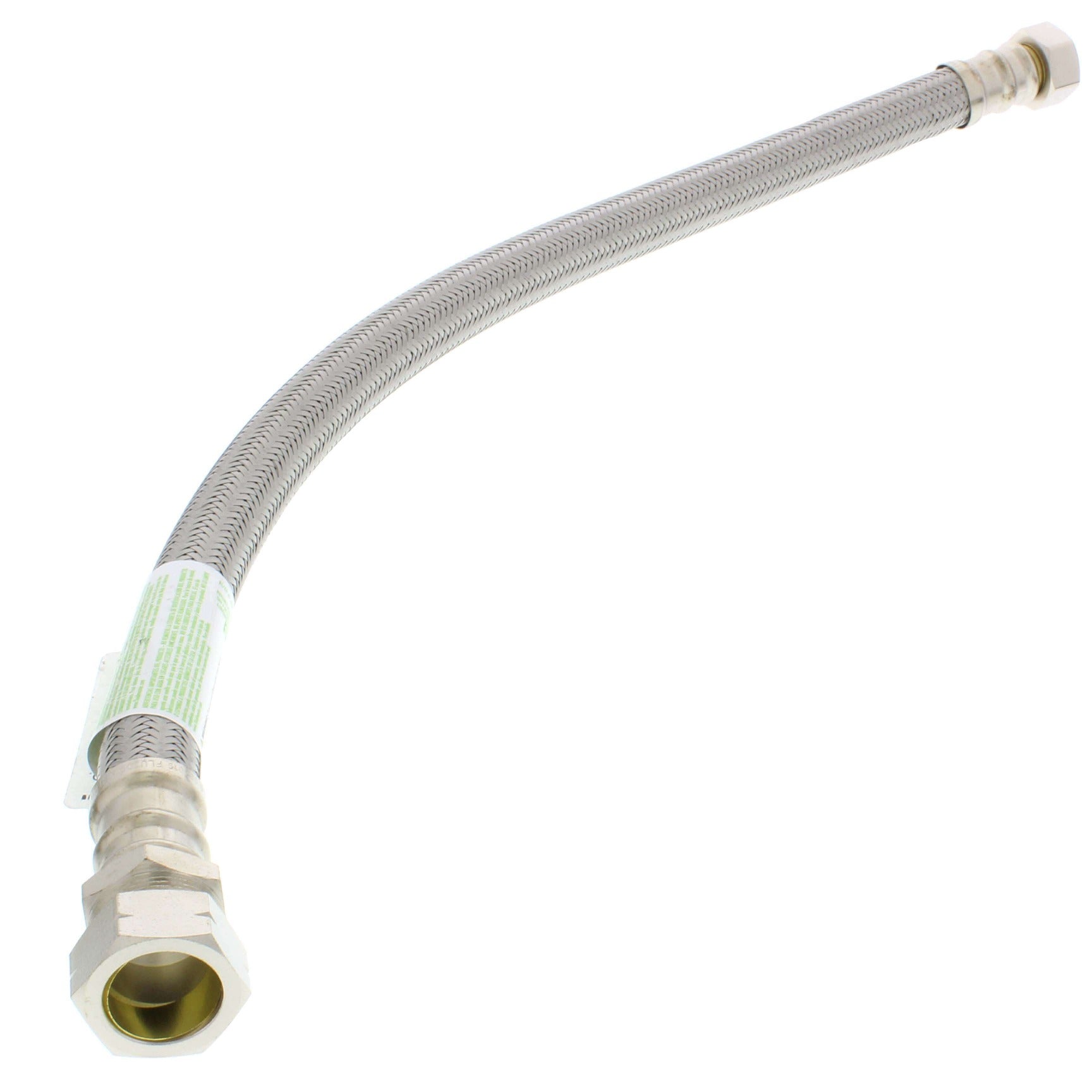

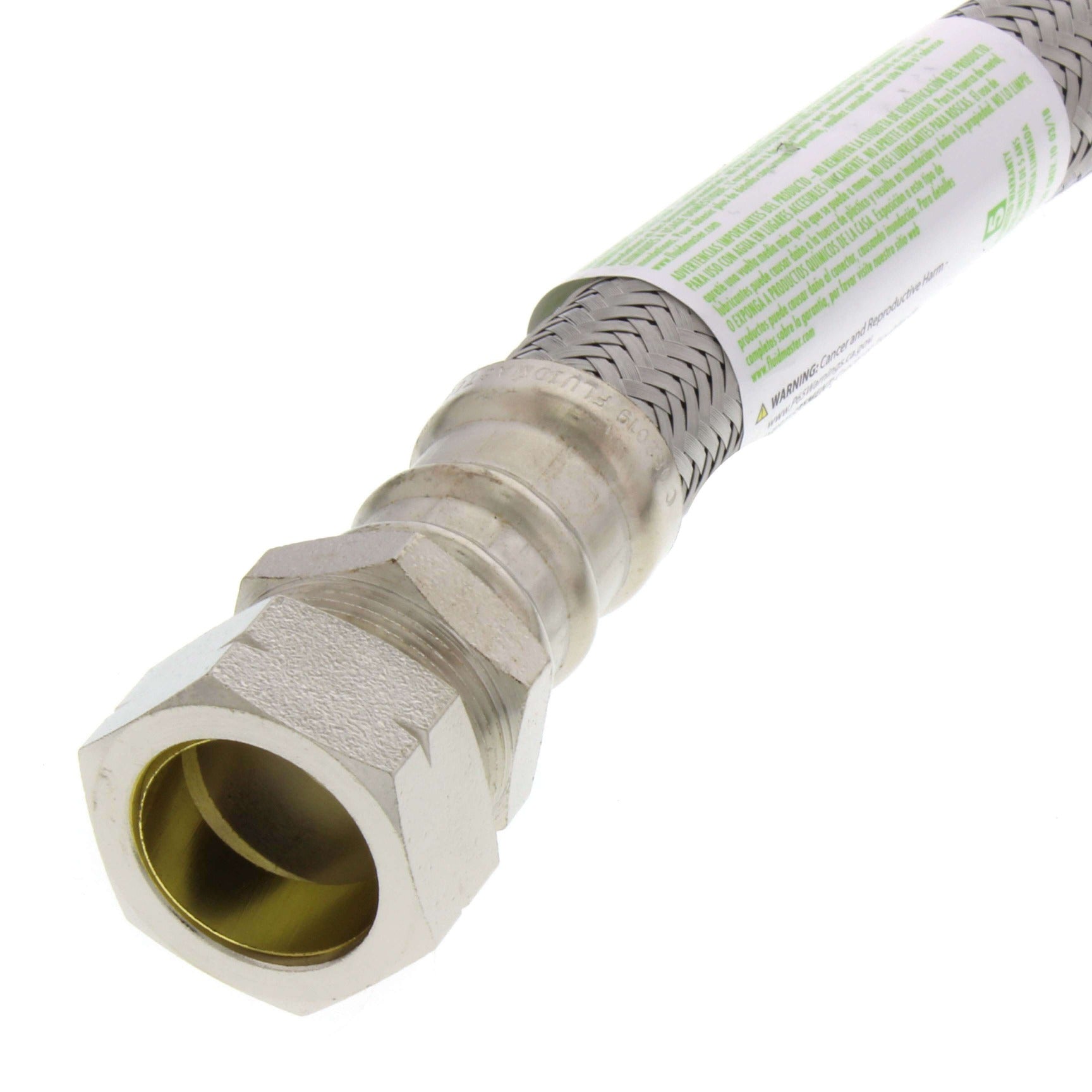

The Fluidmaster B4H24 is a 24-inch water heater connector designed for water heater supply lines, model B4H24. It features a braided stainless steel hose with EPDM internal hose/washer and heavy-duty nickel-plated brass hex nuts. The connector uses a 3/4 in female I.P. (FIP) to 3/4 in compression coupling, is lead-free, and is rated for typical residential pressure and temperature ranges.

  • Braided stainless steel hose construction with EPDM inner hose and large inside diameter for higher flow
  • 3/4 in FIP x 3/4 in compression connection with heavy-duty nickel-plated brass hex nuts
  • Rated for residential use: approximately 7.18–7.26 gpm flow, 125 psi pressure rating, 40 to 150 deg F temperature range

Product Highlights

24 in braided stainless steel water heater connector, 3/4 in FIP x 3/4 in compression, nickel-plated brass hex nuts

Product Information

Standard Information

  • Brand: FLUIDMASTER
  • Manufacturer Part Number: B4H24
  • Country of Origin: China
Technical Specifications
Brand
Fluidmaster
Manufacturer Part Number (MPN)
B4H24
Part Number
FB4H24
Model
B4H24
Connector Size
3/4 in x 3/4 in
Connection Type
3/4 in FIP x 3/4 in compression
Length
24 in
Hose Material
Braided stainless steel (304 stainless steel)
Hex Nut Material / Finish
Brass, nickel plated
Inner Hose Material
EPDM
Type
Braided, no-burst
Application
Water heater connector / supply line
Pressure Rating
125 psi
Temperature Rating
40 to 150 deg F
Flow Rate
Approximately 7.18 to 7.26 gpm
Lead Free
Yes
UPC
39961003126
Country of Origin
China
