Fluidmaster B1T20 Braided Toilet Connector 3/8 Female Comp Thread x 7/8 Female Ballcock

Product Description

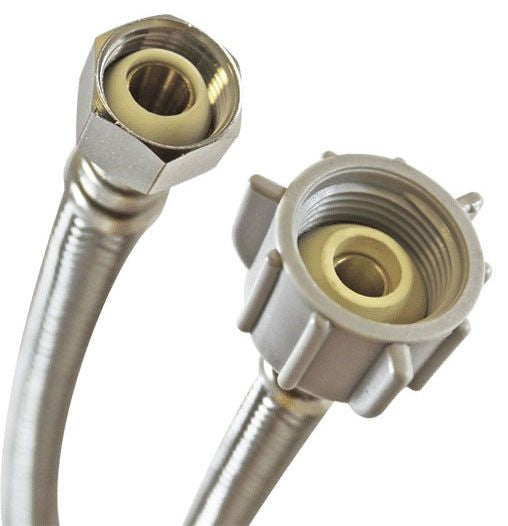

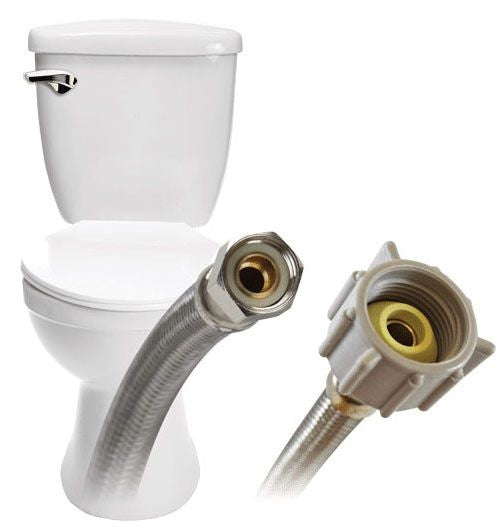

The Fluidmaster B1T20 is a reliable braided toilet connector designed for efficient water supply connections. This connector features a three-eighths inch female compression thread on one end and a seven-eighths inch female ballcock thread on the other, with an overall length of twenty inches. Made from durable materials, the B1T20 offers high flexibility and is suitable for various plumbing applications.

• Type: Toilet Connector
• Length: 20 inches
• Temperature Rating: 40 to 150 degrees Fahrenheit

Product Highlights

This connector exceeds code requirements and features a lead-free design, making it safe for residential use. Its stainless steel braided construction provides protection against kinks and creases, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Fluidmaster
• MPN: B1T20

Technical Specifications

• End Connection: 3/8 inch compression x 7/8 inch ballcock
• Pressure Rating: 125 PSI
• Tubing Material: 304 stainless steel braided wire
• End Fitting Material: Glass filled polypropylene coupling nut
• Inclusions/Features: Santoprene washer, nickel plated brass alloy ferrule
• Applicable Standard: ASME A112.18.6/CSA B125.6, NSF 61, IAPMO, IPC, NPCC
• Flow Rating: 7.18 to 7.26 GPM at 80 PSI
