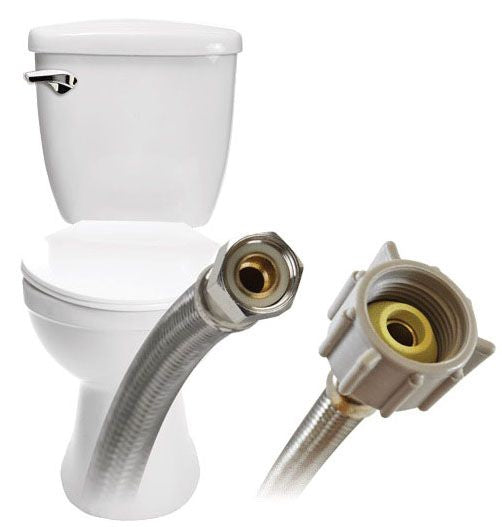

Fluidmaster B1T16 NoBurst 3/8 x 7/8 x 16 Braided Stainless Toilet Flexible Water Connector

Product Description

The Fluidmaster B1T16 is a flexible water connector designed for toilet supply lines. This model features a length of sixteen inches and provides reliable connections. It is built to withstand temperatures from forty to one hundred fifty degrees Fahrenheit and pressures up to one hundred twenty-five PSI.

• Includes Santoprene washer and nickel-plated brass alloy ferrule.

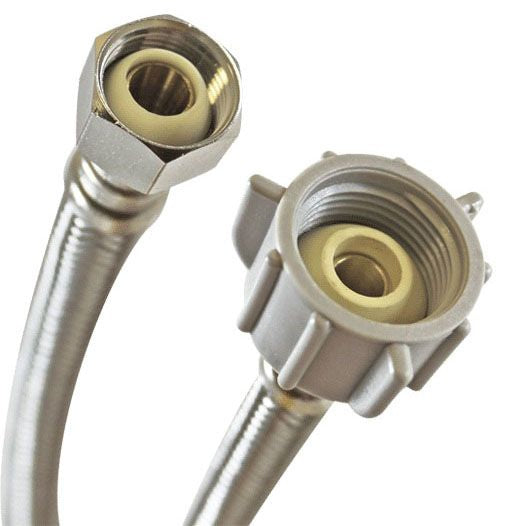

• End connections are three-eighths inch female compression and seven-eighths inch ballcock.
• Made from durable, braided stainless steel tubing.

Product Highlights

This water supply connector is lead-free and compliant with ASME A112.18.6, CSA B125.6, and NSF standards.

Product Information

Standard Information

• Brand: Fluidmaster
• MPN: B1T16

Technical Specifications

• Type: Toilet Connector
• Length: 16 inches
• Tubing Material: 304 Stainless Steel Braided Wire
• End Fitting Material: Glass Filled Polypropylene Coupling Nut
• Temperature Rating: 40 to 150 degrees Fahrenheit
• Pressure Rating: 125 PSI
• Applicable Standards: ASME A112.18.6, CSA B125.6, NSF 61, IAPMO, IPC, NPCC
• Flow Rating: 7.18 to 7.26 GPM at 80 PSI
