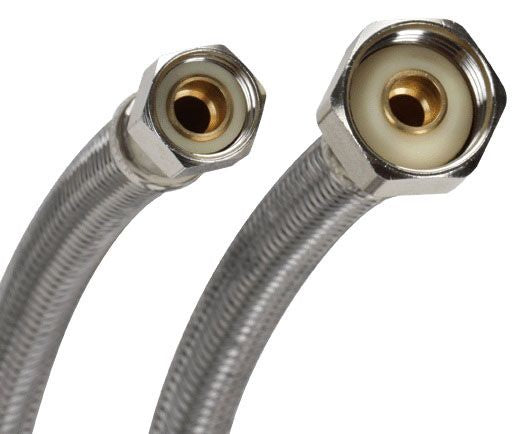

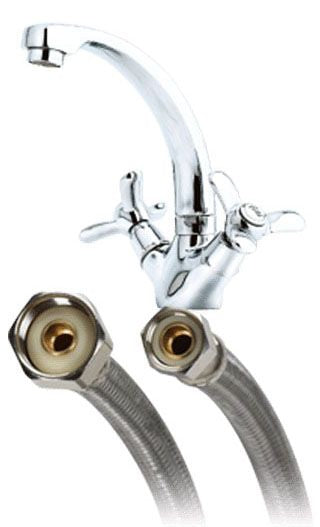

Fluidmaster B1F20 Faucet Connector 3/8 Compression x 1/2 FIP

Product Description

The Fluidmaster B1F20 is a faucet connector designed for flexible water supply systems. It features a three-eighths inch female compression fitting on one end, and a half inch female threaded connection on the other. This connector is twenty inches long and constructed from braided stainless steel for durability.

• Flexible installation with no kinking
• Pressure rating of one hundred twenty-five PSI
• Includes Santoprene washer for a tight seal

Product Highlights

The Fluidmaster B1F20 connector is ideal for residential plumbing applications. Its robust design exceeds all code requirements, making it a reliable choice for both professionals and DIYers.

Product Information

Standard Information

• Brand: Fluidmaster
• MPN: B1F20

Technical Specifications

• End Connection: 3/8 Inch Compression x 1/2 Inch Female Threaded
• Length: 20 Inches
• Material: 304 Stainless Steel Braided Wire
• End Fitting Material: Nickel Plated Brass Alloy
• Temperature Rating: 40 to 150 Degrees Fahrenheit
• Pressure Rating: 125 PSI
• Inclusions/Features: Santoprene Washer, Nickel Plated Brass Alloy Ferrule
• Applicable Standards: ASME A112.18.6/CSA B125.6, NSF 61, IAPMO, IPC, NPCC
• Flow Rating: 7.18 to 7.26 GPM at 80 PSI
