Flow-Tek 200FLOF15CSBV 2 F15 150 Flgd Fp Cs Ball Valve 2 IN

Product Description

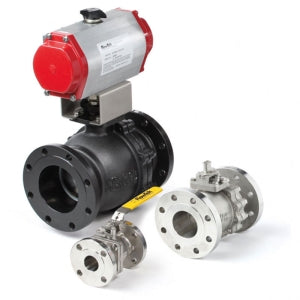

The FLOW-TEK 200FLOF15CSBV is a 2 IN, F15 flanged series ball valve featuring a floating ball design for low torque and increased cycle life. Larger sized valves feature trunnion-type ball support. These ball valves are suitable for industrial applications. Fire Safe, it is certified to API 607 4th edition.

• Floating ball design for low torque
• Increased cycle life
• Trunnion-type ball support in larger sizes

Product Highlights

Ideal for industrial applications, the valve features a floating ball design, increased cycle life, and trunnion-type ball support in larger sizes.

Product Information

Standard Information

• Brand: FLOW-TEK
• Manufacturer Part Number: 200FLOF15CSBV

Technical Specifications

• Item Name: Ball Valve
• Type: 2-Piece, Full-Port, Fire Safe
• Series/Model: Model F15
• Nominal Size: 2 IN
• Connection Type: Flanged
• Pressure Rating: 150 PSI (WSP) At 365 DEG F
• Pressure Class: Class 150
• Temperature Rating: -50 To 650 DEG F
• Body Material: Carbon Steel
• Handle Material: 304 Stainless Steel/Ductile Iron
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel Ball
• Packing Material: RPTFE
• Gland Material: 304 Stainless Steel
• Seat Material: TFM 600
• Seal Material: Spiral Wound 316 Stainless Steel/Graphite
• Material Standard: Body: ASTM A216 Grade CF8M, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479, Gland: ASTM A167
• Industry Standards: MSS-SP-72, ASME B16.5, B16.34 Certified
• Width: 7 IN
• Lead Free: No
• Other Physical Dimension: 6 IN Flange Diameter, 4.53 IN Inlet Center To Top Of Handle, 10.43 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 500, Torque Rating: 230 IN-LB
• Brand: FLOW-TEK
• Firesafe: Yes
• Application: Process, Tank Farms, Fueling, Oil and Gas, Municipal Water Supply
