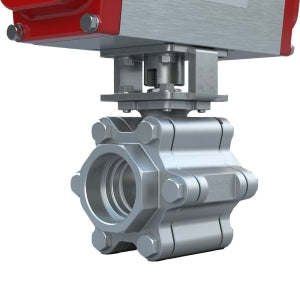

Flow-Tek 180075-11010CSJG-NN Triad Fp21 Thrd Fp 3-pc Live Loaded Ball Valve 3/4

Product Description

The FLOW-TEK 180075-11010CSJG-NN is a 3/4 inch Triad FP21 threaded full port 3-piece live loaded ball valve. These rugged, high pressure 3-piece valves are ideal for process, severe service, high temperature, and high cycle applications. It features live loaded stem seals and a redundant body seal design.

• Live loaded stem seals
• Redundant body seal design
• Ideal for process, severe service, high temperature, and high cycle applications

Product Highlights

Full port ball valve suitable for high pressure and high cycle applications with live loaded stem seals.

Product Information

Standard Information

• Brand: FLOW-TEK
• Manufacturer Part Number: 180075-11010CSJG-NN
• Country of Origin: China

Technical Specifications

• Item Name: Ball Valve
• Type: 3-Piece, Full-Port, Live Loaded
• Series/Model: Series FP21/Triad
• Nominal Size: 3/4 IN
• Connection Type: NPT
• Pressure Rating: 2200 PSI (CWP)
• Temperature Rating: -50 To 550 DEG F
• Body Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: Graphite
• Material Standard: Body: ASTM A216 Grade WCB, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479 Type316
• Industry Standards: ASME B1.20.1, ASME B16.34 Class 600, API 598, MSS SP-72, NACE MR0175
• Width: 3.31 IN
• Lead Free: No
• Other Physical Dimension: 3.03 IN Inlet Center To Top Of Handle, 6.5 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 55, Torque Rating: 86 IN-LB
• Brand: FLOW-TEK
• Firesafe: Yes
• Materials of Construction - Ball: A182/A182M Gr F316/F316L
• Materials of Construction - Body/Upper: ASTM A216 GR. WCB
• Materials of Construction - End Cap 1: ASTM A216 GR. WCB
• Materials of Construction - End Cap 2: ASTM A216 GR. WCB
• Materials of Construction - Stem/Upper: ASTM A479 Gr 316/316L
• Size: 0.75"
• Seat Material: TFM
• Connection: NPT
