Floodmaster RS-094-1/2 Water Tank Alarm Shutoff 120VAC 1/2 inch NPT

Product Description

The FloodMaster RS-094-1/2 is a water tank alarm shutoff system designed to minimize water damage from water heater and water tank failures. This 120VAC unit automatically shuts off the feed water intake and sounds an audible alarm when its 8 ft sensor detects a leak. It includes a brass valve with a 1/2 inch NPT connection, suitable for water heaters and storage tanks. The system operates up to 140 °F and has a maximum pressure of 80 psi.

• Lead-free NSF372 valve meets U.S. EPA Safe Drinking Water Standards.
• Automatically turns off water source upon leak detection, even when unoccupied.
• System is reusable; fix the problem and reset the unit for continued protection.

Product Highlights

This FloodMaster RS-094-1/2 system provides automatic water shut-off and an audible alarm for water tank leak detection, featuring a 1/2 inch NPT brass valve and 120VAC operation.

Product Information

Standard Information

• Brand: FLOODMASTER
• Manufacturer Part Number: RS-094-1/2
• Country of Origin: United States

Technical Specifications

• Brand: FloodMaster
• MPN: RS-094-1/2
• Max Pressure: 80 psi
• Input Voltage: 120VAC

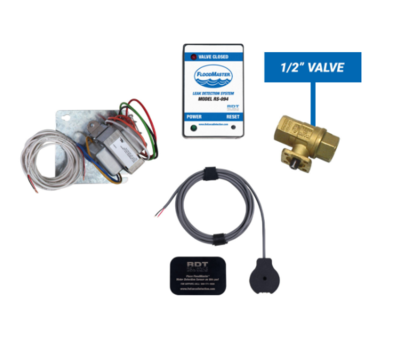

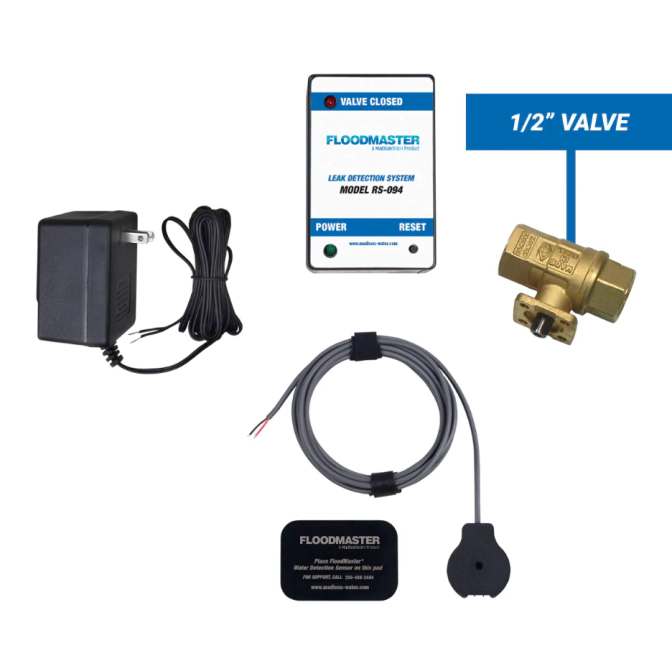

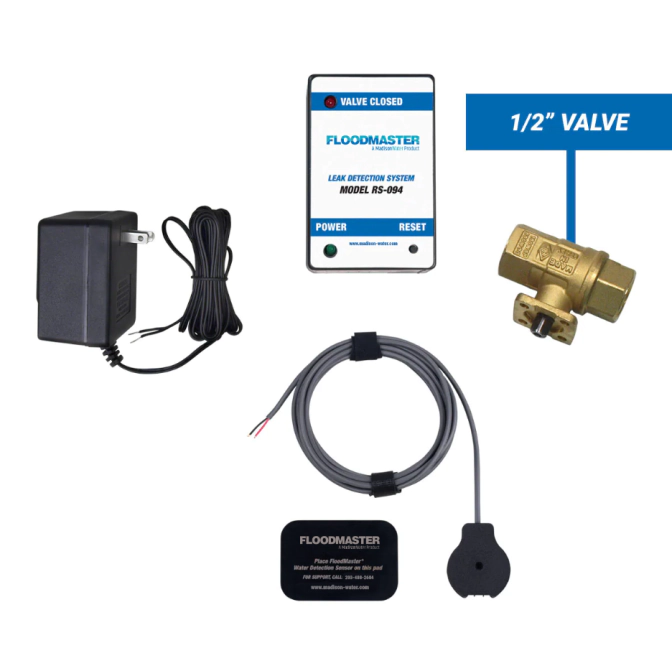

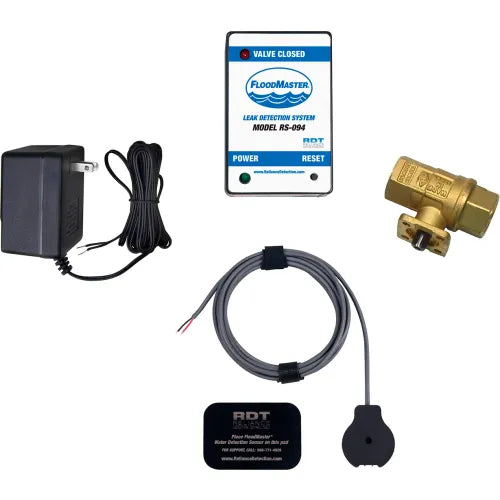

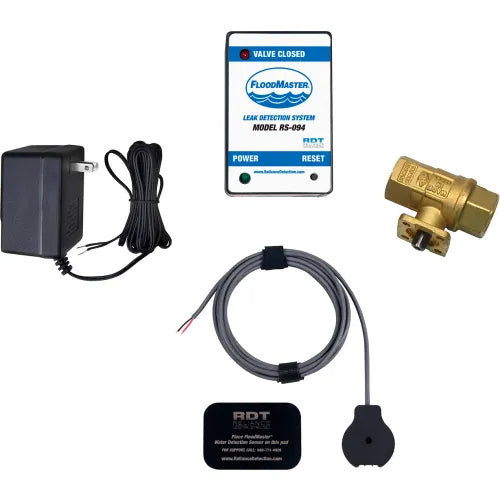

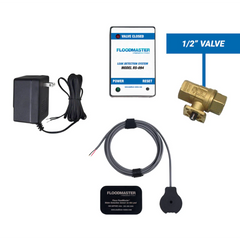

• Includes: Sensor, Receiver w/Audible Alarm & SPDT Relay Output, Valve
• Material: Brass Valve
• Valve Size: 1/2 inch
• For Use With: RSA-101-008
• Connection Type: NPT
• Power Cord Length: 12 ft
• Installation Type: Water Heaters, Water Storage Tanks
• Number of Sensors: 1
• Operating Temperature Range: Up to 140 °F
• Sensor Cord Length: 8 ft
• Output Current: 0.3 A
• Item Type: Detection and Alarm Shutoff System
• Automatic Shutoff: Yes
• Standards: CSA
• Application: Water Tank Leak Detection
• Audio Alarm: Yes
• Plenum-Rated: No
• Sensor Type: Point of Contact Sensor
• Connectivity: Wired
