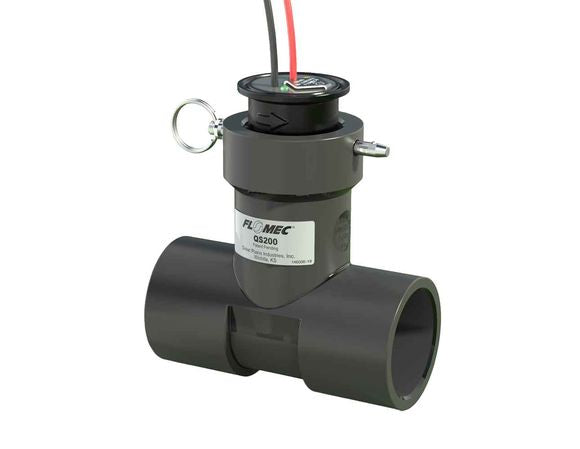

Flomec QS200-20 Ultrasonic Flow Meter PVC 2 inches

Product Description

The FLOMEC QS200-20 is a 2" female socket schedule 80 PVC ultrasonic flow meter. It is factory calibrated for water and features a 2-year limited warranty. It is designed for commercial and landscape irrigation, and clean water flow measurement. The meter operates between 32 to 140°F (0 to 60°C).

• Low Cost
• Easy Installation
• No moving parts

Product Highlights

This ultrasonic flow meter is designed for measuring water flow in commercial and landscape irrigation applications. It offers easy installation and high accuracy.

Product Information

Standard Information

• Brand: FLOMEC
• Manufacturer Part Number: QS200-20

Technical Specifications

• Connection Size: 2"
• Connection Type: Female Socket
• Flow Range: 0.92-138 GPM (3.48-522.39 LPM) - 0.1 to 15 fps (0.03 to 4.57 m/s)
• Pressure Rating: 150 PSI @ 73°F (10 Bar @ 23°C), 100 PSI @ 140°F (7 Bar @ 60°C)
• Meter Body Size: 2"
• Body Type: PVC Tee
• Factory Calibrated For: Water
• Flow Meter Type: QS200 - ULTRASONIC METER
• Warranty Period: 2-Year Limited
• Max Pressure Drop (at Max Flow in test conditions): 0
• Accuracy (% of Reading) Factory Calibrated Body Only: ± 2.0% of Reading
• Maximum Viscosity: (Water)
• Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C)
• Housing Material: Sch 80 PVC
• Rotor: None
• Seals: EPDM
• Remote Output: Pulse Out
• Sensor (Pickup): Transducer
• Battery Power: None
• External Power: 7.5VDC to 36VDC
• Frequency Range: 0 to 100Hz
• Applications (always check Chemical Compatibility Guide): Commercial Irrigation; Landscape Irrigation; Clean water flow measurement
• Not Suitable For Applications: Non-water applications; Trade applications; Not approved for use with petroleum products (diesel fuel, unleaded gasoline, jet fuel, kerosene, etc.), aromatic hydrocarbons or other incompatible chemicals; Not approved for use in hazardous locations; Not suitable for Freezing or Steam applications. See owners manual for full details.
• Piping Notes: For PVC piping only. See owners manual for full details.
• Minimum Straight Pipe Dia.s: 20" Upstream / 10" Downstream
• Connection to Connection Length (OAL): 5.56" (141mm)
