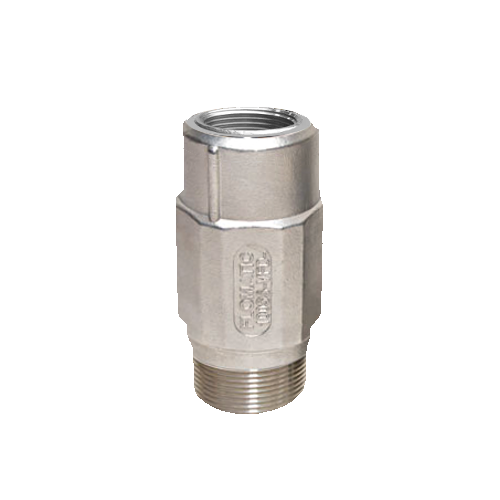

Flomatic 4221LSS2 100SS Check Valve 1-1/4X1

Product Description

The FLOMATIC 4221LSS2 100SS check valve is designed with a stainless-steel body and threaded male x female connection. It is suitable for water and general pump applications, including submersible and booster systems. This model offers excellent corrosion resistance and reliable performance under demanding operating conditions. Maximum working pressure of 400 psi.

• Stemless Design: Eliminates Sticking
• Radius Valve Seat: Self Cleaning Valve Seat
• Stable Poppet: Drop Shaped Poppet System, Reduced Friction Loss

Product Highlights

Features a high-strength Delrin poppet, stainless steel spring, and a Nitrile (Buna-N) seal. Maximum temperature 180°F (80°C).

Product Information

Standard Information

• Brand: FLOMATIC
• Manufacturer Part Number: 4221LSS2
• Country of Origin: American

Technical Specifications

• Temp Max: 180°F (80°C)
• Pressure Max: 400 PSI
• Connections: Threaded female x female
• Max Pressure: 400 psi
• Max Temperature: 180°F (80°C)
• Body: Stainless Steel
• Inlet / Outlet: 1-1/4" M x 1" F
• Part Number: 4221LSS2
• Compatible Series: 100MSS
• Brand: Flomatic Valves
• Valve Size: 1 1/4" M x 1" F Long
