Flomatic 4031DIVFD 80di-vfd Ductile Iron Check Valve 1 inches

Product Description

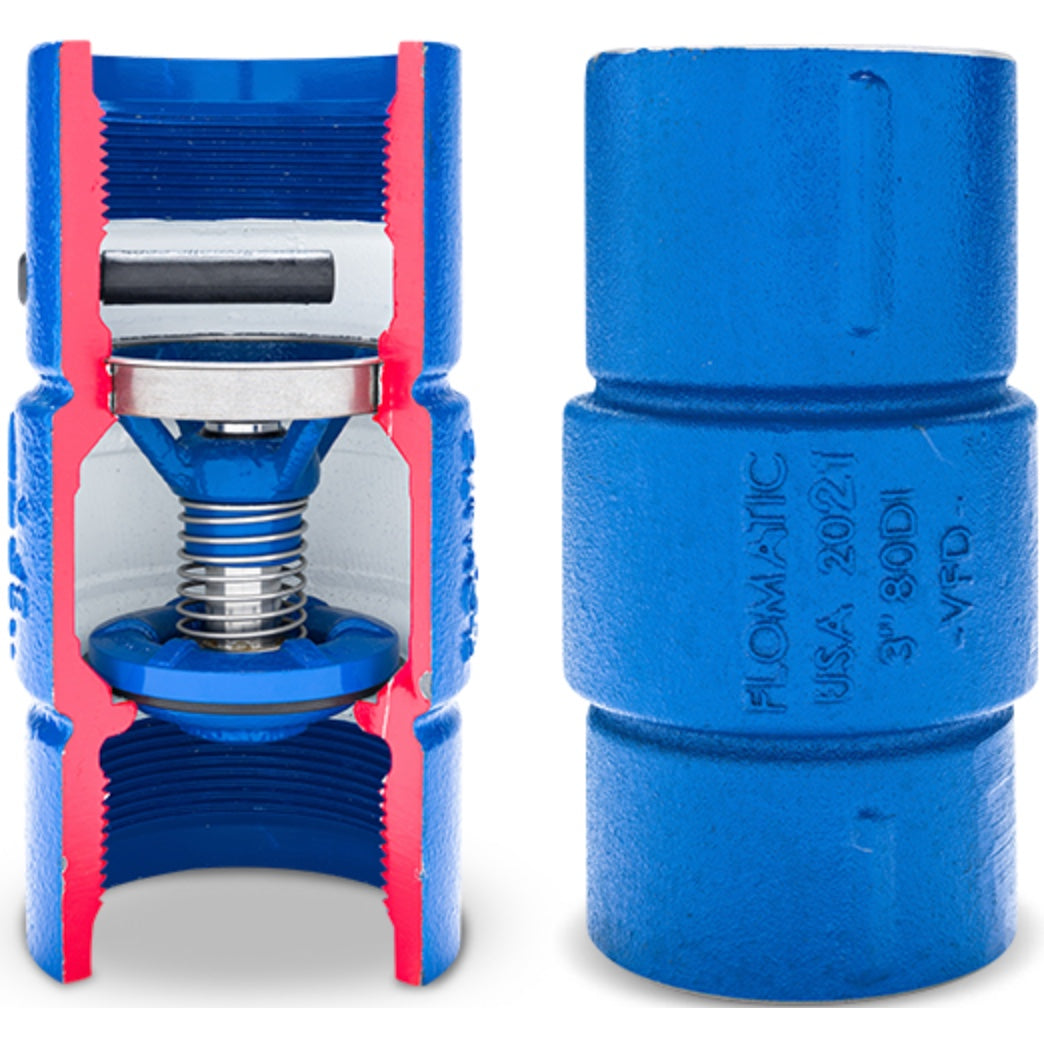

The FLOMATIC 4031DIVFD 80DI-VFD ductile iron check valve features a high-strength epoxy-coated ductile iron patented body, poppet, and guide with threaded female NPT connections. It features a Nitrile (Buna-N) seal and is designed for vertical or horizontal applications. It can handle pressures up to 600 psi and temperatures up to 180°F (80°C).

• High strength epoxy coated ductile iron patented body
• Poppet and guide with threaded female NPT connections
• Features a Nitrile (Buna-N) seal
• NSF/ANSI 61 and 372 approved

Product Highlights

The Flomatic 4031DIVFD 80DI-VFD is engineered to operate in a wide flow range and automatically closes tight after each pump cycle. A self-cleaning seat/stem helps increase service life.

Product Information

Standard Information

• Brand: FLOMATIC
• Manufacturer Part Number: 4031DIVFD
• Country of Origin: USA

Technical Specifications

• SIZE RANGE: 1 - 10 inch (25 mm - 250 mm)
• MAX TEMP: 180°F (80°C)
• MAX PRESSURE: 600 PSI
• NSF/ANSI: 61 and 372 Approved
• Poppet Material: Stainless Steel
• Guide Material: Composite
• Body: Ductile Iron
• Inlet / Outlet: 1"
• Manufacturer Part Number: 4031DIVFD
• Material: DUCTILE IRON BODY
• Outlet Size (in): 1"
• Inlet Size (in): 1"
• Inlet Connection: NPT
• Outlet Connection: NPT
• Part Number: 4031DIVFD
• Compatible Series: 80DI-VFD
• Brand: Flomatic Valves
• Valve Size: 1"
• Supplier Part Number: 4031DIVFD
• Approximate Weight (lbs): 0.8
