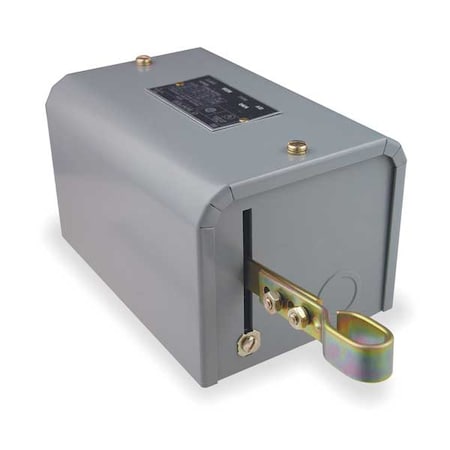

Schneider Electric 9038AG1C DPST 460VAC Alternator Open Liquid Level Switch NEMA Rating 1

Product Description

The Schneider Electric 9038AG1C liquid level switch is engineered to control small motor loads effectively. Perfect for a variety of applications like tanks, reservoirs, and sumps, this switch helps prevent pump damage by initiating control actions based on liquid levels.

• Direct control of motor loads up to 600 amps
• NEMA Rating 1 for dust and light water resistance
• Stainless steel float construction ensures durability

Product Highlights

This DPST switch supports a wide operational temperature range from -22 to 220 degrees Fahrenheit, accommodating versatility across different environmental conditions. Its robust steel body, rated for up to 600V, can tackle demanding industrial settings.

Product Information

Technical Specifications

• Amps: 10
• Maximum Voltage: 600VAC
• Float Travel: 1.25 inches
• Float Diameter: 7 inches
• Height: 4.5 inches
• Width: 4.69 inches
• HP Ratings: Up to 5 HP for 3-phase 240V configurations
• Connection Type: Screw Clamp
