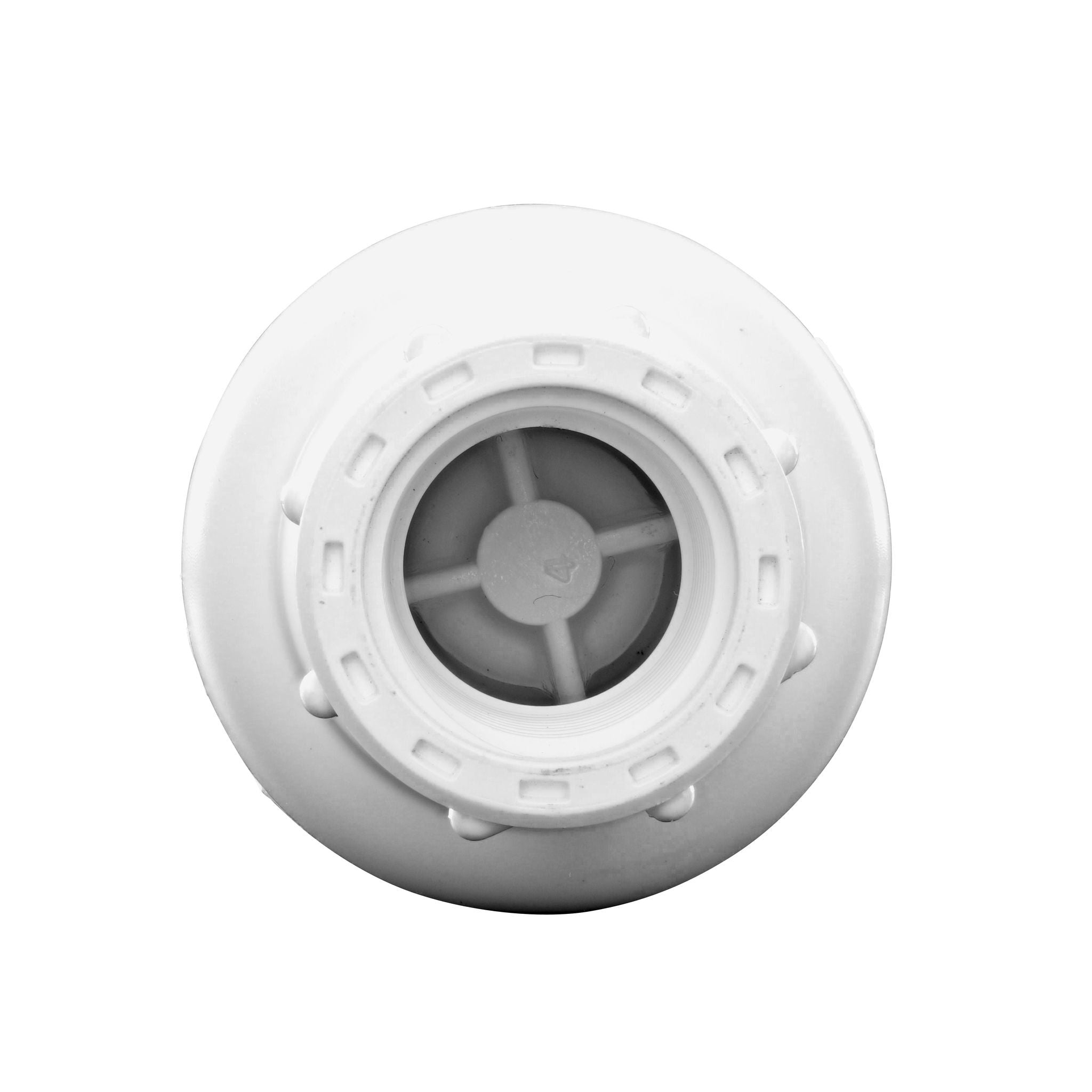

FLO CONTROL 1001-05 1/2 inches IPS PVC Spring Check Valve w/ 1/2# Spring

Product Description

The FLO CONTROL 1001-05 is a 1/2 inch IPS PVC spring check valve equipped with a 1/2# spring and features a threaded connection. This valve effectively prevents backflow, ensuring a consistent flow in irrigation and drainage systems. Made from PVC type 1 material, it utilizes a stainless steel spring and EPDM washers for durability.

• Rated at 200 PSI static pressure at seventy-two degrees Fahrenheit
• Manufactured in the USA
• All components are NSF/ANSI 61 and 372 listed

Product Highlights

This spring check valve is suitable for a variety of plumbing applications and is designed to offer reliable backflow prevention.

Product Information

Standard Information

• Brand: Flo Control
• MPN: 1001-05

Technical Specifications

• Size: 1/2 inch
• Material: PVC
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Open Pressure: 2.15 PSI
• Pressure Rating: 200 PSI
• Standards Met: NSF 61
• Diameter: 1/2 inch
