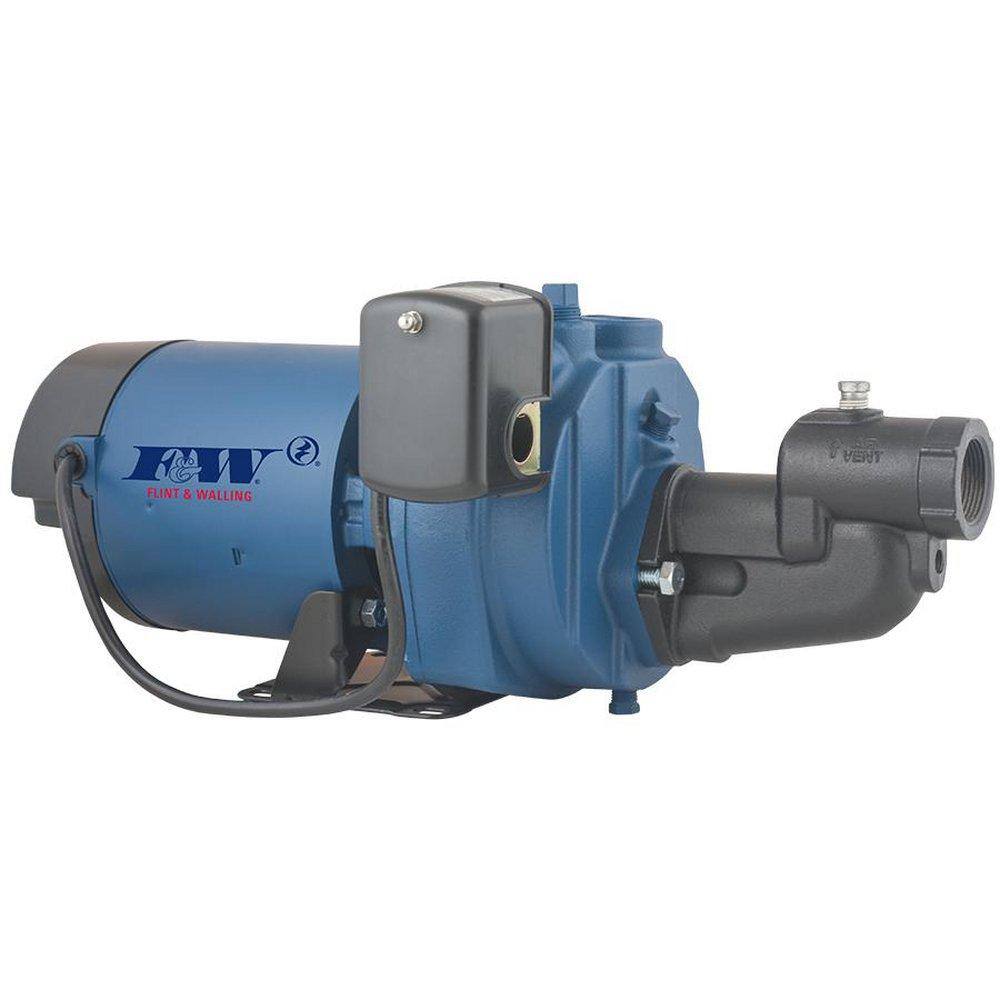

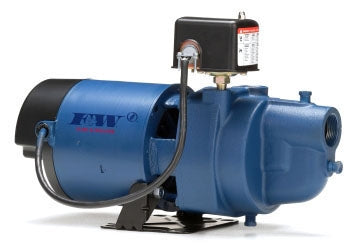

Flint & Walling EK10S Jet Pump System Shallow Well 1 HP

Product Description

The Flint & Walling EK10S Jet Pump is a robust solution for shallow well applications, offering a power rating of 1 HP and a speed of 3450 RPM. Primarily constructed from high-tensile gray iron, this pump is designed for durability and efficiency.

• Efficient water flow with 17.4 GPM at 10 feet lift and 30 PSI.
• Built with a self-adjusting, ceramic and silicon carbide face shaft seal.
• Includes a pressure switch and ejector, facilitating easier setup.

Product Highlights

This shallow well jet pump features an innovative service plus motor and a Uni-Frame flange design for maximum performance and alignment. The pump is equipped with corrosion and abrasion-resistant components, ensuring longevity and reliable operation.

Product Information

Standard Information

• Manufacturer: Flint & Walling
• Item Number: 53011

Technical Specifications

• Power Rating: 1 HP
• Speed Rating: 3450 RPM
• Pressure Rating: 150 PSI
• Suction Size: 1-1/4 inches
• Discharge Size: 3/4 inch
• Casing Material: Gray Iron
• Housing Material: Gray Iron
• Pressure Switch Setting: 30 to 50 PSI
