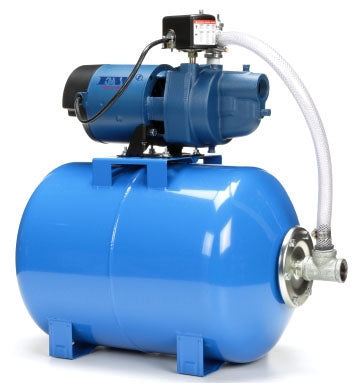

Flint & Walling EK07SAT44H Shallow Well Jet Pump System 3/4 HP 115/230 VAC

Product Description

The Flint & Walling EK07SAT44H is a shallow well jet pump system with a power rating of three-fourths horsepower. It operates on 115/230 volt AC and has a speed rating of thirty-four hundred fifty RPM. This pump is designed for shallow well applications, ensuring reliable water supply.

• Suction size of one and one-fourth inch.
• Discharge size of three-fourths inch.
• Overall dimensions of twenty-four and a half inches in length, seventeen and a quarter inches in width, and thirty-three and a half inches in height.

Product Highlights

This pump includes a cast iron construction, which provides durability and strength. The dual voltage capacitor start motor ensures easy operation and quick voltage changes with spade connectors.

Product Information

Standard Information

• Manufacturer: Flint & Walling
• Model: EK07SAT44H

Technical Specifications

• Power Rating: 3/4 HP
• Input Supply Rating: 115/230 Volt AC, 60 Hertz, Single Phase
• Speed Rating: 3450 RPM
• Pressure Switch Setting: 20 to 40 PSI
• Suction Size: 1-1/4 Inch
• Discharge Size: 3/4 Inch
• Overall Dimensions: 24.5 Inch Length x 17.25 Inch Width x 33.5 Inch Height
• Applicable Standard: CSA
• Included Features: Cast Iron Pump, Motor, Pressure Switch, Ejector, Horizontal Pressure Tank, Connection Fitting
• Motor Type: Dual Voltage Capacitor Start Motor
