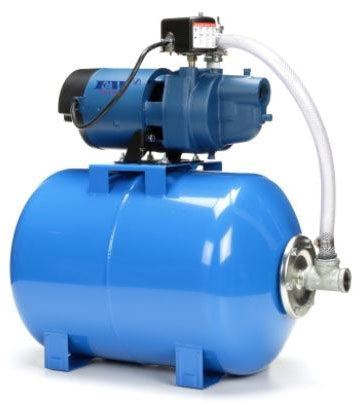

Flint & Walling EK05SAT25H Shallow Well Jet Pump System 1/2 HP 115/230 VAC

Product Description

Explore the Flint & Walling EK05SAT25H, a robust shallow well jet pump system designed for efficient water pumping. Manufactured with precision, this 1/2 HP pump operates on a dual voltage system (115/230 VAC) and delivers a consistent flow rate. Its compact dimensions and high functionality make it ideal for both residential and light commercial applications.

• Durable cast iron construction enhances longevity.
• Dual voltage capability ensures adaptability to different power sources.
• Includes a complete setup with motor, pressure switch, and connection fittings.

Product Highlights

The pump features a dual voltage capacitor start motor, known for high efficiency and thermal overload protection. The system is easily configurable to various voltage settings thanks to its spade connectors.

Product Information

Standard Information

• Brand: Flint & Walling
• MPN: EK05SAT25H

Technical Specifications

• Power: 1/2 HP
• Voltage: 115/230 VAC
• Flow Rate: up to 8.4 gpm at 30 PSI
• Suction Size: 1-1/4 inches
• Discharge Size: 3/4 inches
• Max Suction Lift: 25 feet
• Pressure Switch: 20 to 40 PSI
• Speed: 3450 RPM
• Motor Type: Dual Voltage Capacitor Start
• Overall Dimensions: 23.25 x 14 x 28.5 inches
