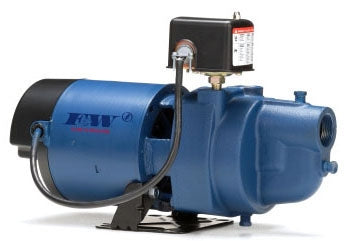

Flint & Walling EK05S 115/230 VAC 60 Hz 1/2 HP Shallow Well Jet Pump

Product Description

The Flint & Walling EK05S is a shallow well jet pump with a power rating of one-half horsepower. This pump operates at a voltage of one hundred fifteen or two hundred thirty volts AC with a frequency of sixty hertz. It runs at a speed of three thousand four hundred fifty RPM and has a maximum pressure rating of one hundred fifty PSI.

• Suction Size: one and one-fourth inches
• Discharge Size: three-fourths inches
• Standard Shaft Seal with ceramic and silicon carbide face

Product Highlights

This pump is designed for shallow well applications and features a built-in pressure switch for automatic operation. Its durable gray iron construction ensures long-term reliability and performance.

Product Information

Standard Information

• Manufacturer: Flint & Walling
• Part Number: EK05S

Technical Specifications

• Power Rating: 1/2 HP
• Input Supply Rating: 115/230 Volt AC, 60 Hertz
• Speed Rating: 3450 RPM
• Pressure Rating: 150 PSI
• Pressure Switch Setting: 20 to 40 PSI
• Suction Size: 1-1/4 Inch
• Discharge Size: 3/4 Inch
• Casing Material: Gray Iron
• Housing Material: Gray Iron
• Inclusions/Features: Pressure Switch, Ejector
• Motor Type: Double Ball Bearing
• Shaft Seal Details: Standard, Ceramic and Silicon Carbide Face, Self-Adjusting
• Applicable Standard: CSA (US)
